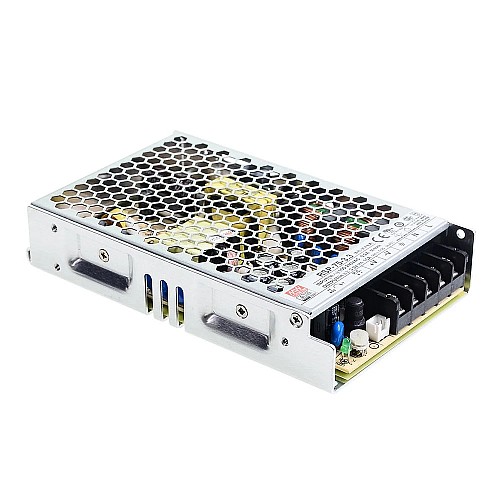

RSP-75-3.3 MEANWELL 49.5W 3.3VDC 15A 115/230VAC Single Output With PFC Function

RSP-75-3.3 MEANWELL 49.5W 3.3VDC 15A 115/230VAC Single Output With PFC Function - RSP-75-3.3 | StepperOnline CA
RSP-75-3.3 MEANWELL 49.5W 3.3VDC 15A 115/230VAC Single Output With PFC Function
0 reviews - Write a review
C$48.80
5 + C$47.37
10 + C$46.03
50 + C$44.76
100 + C$43.56
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: RSP-75-3.3
  • Gross Weight: 0.44kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 3.3V DC 15A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 49.5W
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 89%
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • LED indicator for power on
  • 3 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application
Electrical Specification
Efficiency(%) 76%
Max. Output Current(A) 15
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 159 x 97 x 30
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 85 - 264 / 120 - 373
Output Voltage(VDC) 3.3
PFC Function Yes
Power Type Switching Power Supply
Power(W) 49.5
Physical Specification
Inventory Method Shared Inventory
File Size
RSP-75.pdf 860.1KB Download
