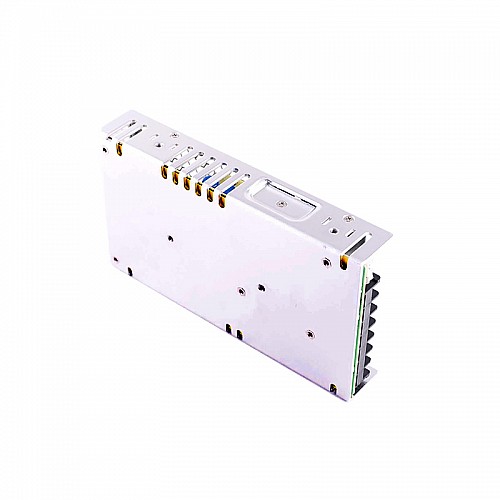

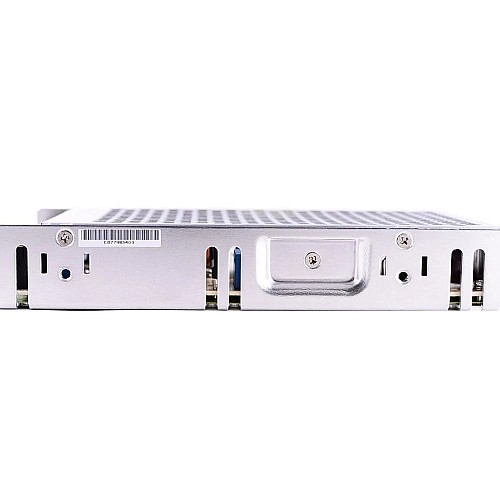

RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function

RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function - RSP-100-24 | StepperOnline CA
RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function - RSP-100-24 | StepperOnline CA
RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function - RSP-100-24 | StepperOnline CA
RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function - RSP-100-24 | StepperOnline CA
RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function - RSP-100-24 | StepperOnline CA
RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function - RSP-100-24 | StepperOnline CA
RSP-100-24 MEANWELL 100.8W 24VDC 4.2A 115/230VAC Single Output With PFC Function
0 reviews - Write a review
C$55.26
5 + C$53.65
10 + C$52.13
50 + C$50.69
100 + C$49.33
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: RSP-100-24
  • Gross Weight: 0.52kg
  • Certificated: ISO, CE, RoHS
Sold: 1

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 4.2A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 100.8W
  • Single and two phase wide input range 85~550VAC
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 88%
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • LED indicator for power on
  • 3 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application
Electrical Specification
Efficiency(%) 87%
Max. Output Current(A) 4.2
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 179 x 99 x 30
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
Output Voltage(VDC) 24
PFC Function Yes
Power Type Switching Power Supply
Power(W) 100.8
Physical Specification
Inventory Method Dedicated Inventory
File Size
RSP-100.pdf 865.42KB Download
