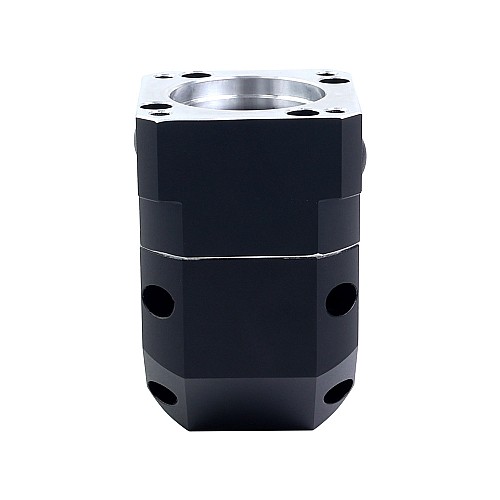

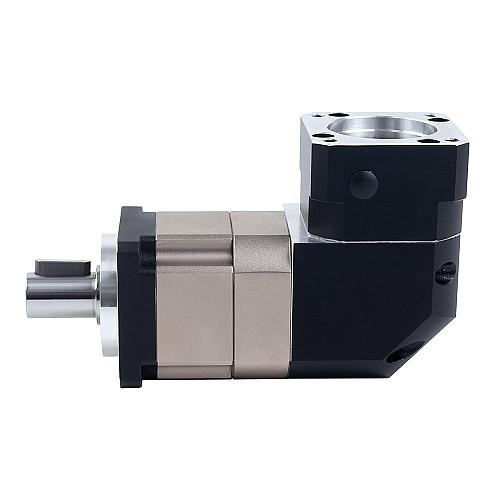

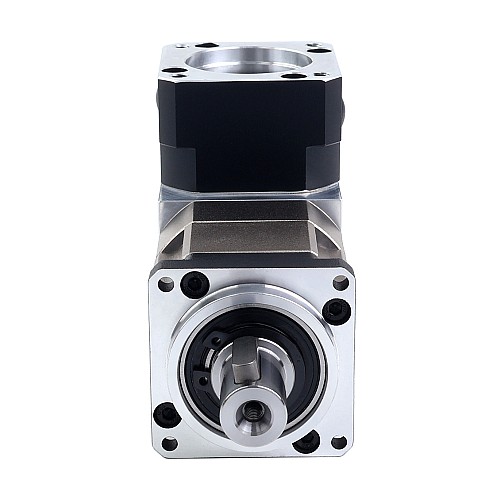

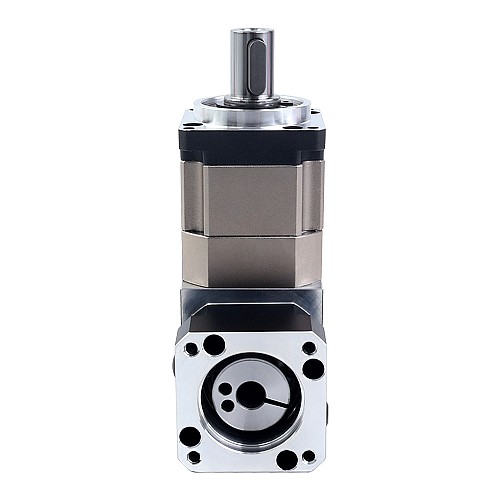

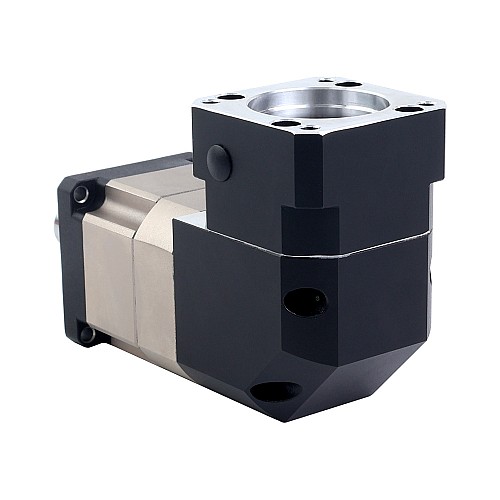

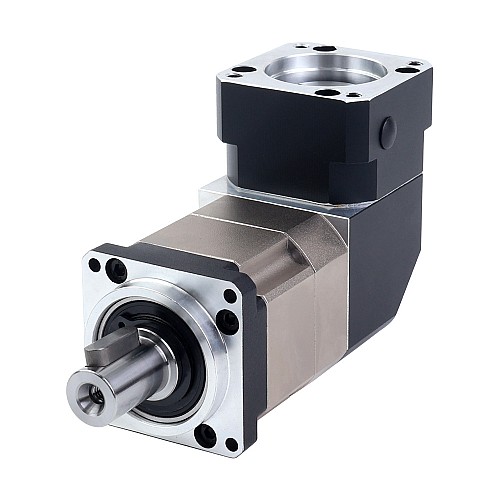

RTG Series 40mm 20:1 Right Angle Planetary Gearbox Backlash 18arc-min for Servo Motors
€161.46
5 + €154.79
10 + €148.67
50 + €143.00
100 + €137.76
- In Stock: 10000
- Model: RTG40-G20
- Gross Weight: 1.55kg
- Certificated: ISO, CE, REACH
Sold: 2
Click country for real-time stock
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
This right angle gearbox features a 20:1 gear ratio with IP65-rated protection, ensuring reliable operation in dusty or wet environments. It maintains high precision with 18arc-min backlash and is specifically designed to interface with 40mm-sized servo motors.
Right angle gearbox is characterized by high transmission efficiency, compact size, and extended service life, providing torque transmission with 90° directional change. And is widely applied in various high-precision, high-torque industrial machinery and manufacturing equipment, including metalworking machines, packaging machinery, food processing equipment, and aerospace applications.
Gearbox Specifications
- Part Number: RTG40-G20
- Gearbox Type: Right Angle Planetary
- Gear Material: Alloy Steel
- Gear Ratio: 20:1
- Efficiency: 94%
- Backlash at No-load: <=18arc-min
- Max.Permissible Torque: 18.00Nm(159.31lb-in)
- Moment Permissible Torque: 36.00Nm(318.63lb-in)
- Maximum Compatible Input Shaft Length: 27.5mm
- Shaft Maximum Axial Load: 140N
- Shaft Maximum Radial Load: 170N
- Rated Input Speed: 3000rpm
- Max. Input Speed: 6000rpm
- Noise: <=60dB
- Waterproof Rating: IP65
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 42 x 42mm
- Gearbox Length: 93mm
- Output Shaft Type: Keyway
- Output Shaft Diameter: Φ13mm
- Output Shaft Length: 26mm
- Input Shaft Diameter: Φ8mm
Physical Specification | |
Backlash at No-load | <=18arcmin |
Frame Size(mm) | 42 x 42 |
Gear Material | Alloy Steel |
Gear Ratio(xx:1) | 20 |
Gearbox Length(mm) | 93 |
Gearbox Type | Right Angle Planetary |
Input Shaft Diameter(mm) | 8 |
Input Shaft Length(mm) | 27.5 |
Inventory Method | Dedicated Inventory |
Matching Motor Size | Frame 40 Servo Motor |
Output Shaft Diameter(mm) | 13 |
Output Shaft Length(mm) | 26 |
Output Shaft Type | Keyway |
Product Series | RTG |
