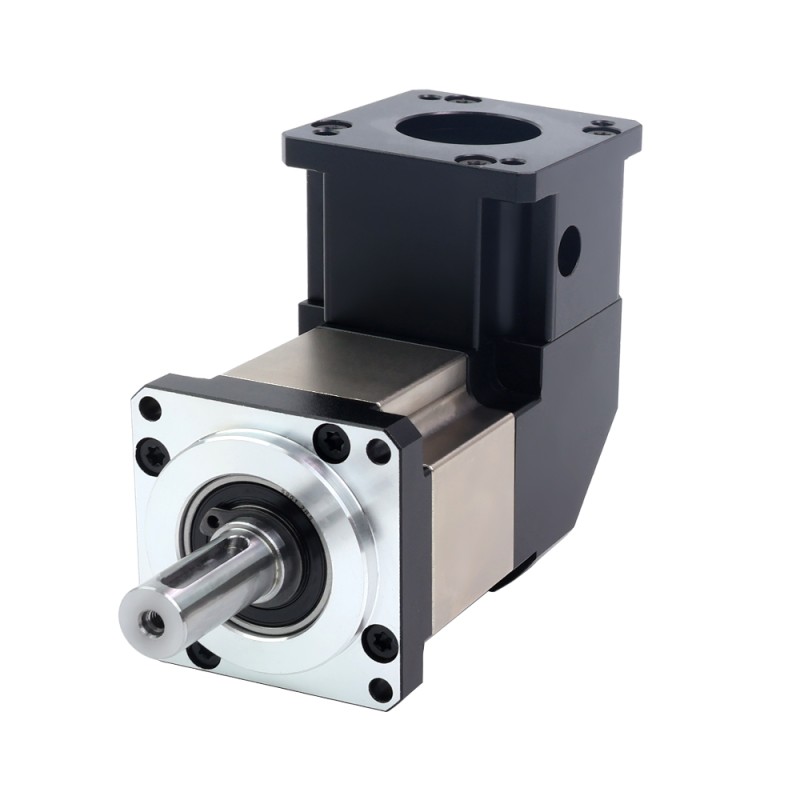

RYG Series Right Angle Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for Nema 17 Stepper Motor

0 reviews - Write a review

C$159.75

5 + C$153.17

10 + C$147.10

50 + C$141.49

100 + C$136.29

In Stock: 10000
Model: RYG17-G20
Gross Weight: 0.69kg
Certificated: ISO, CE, REACH

Sold: 49

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

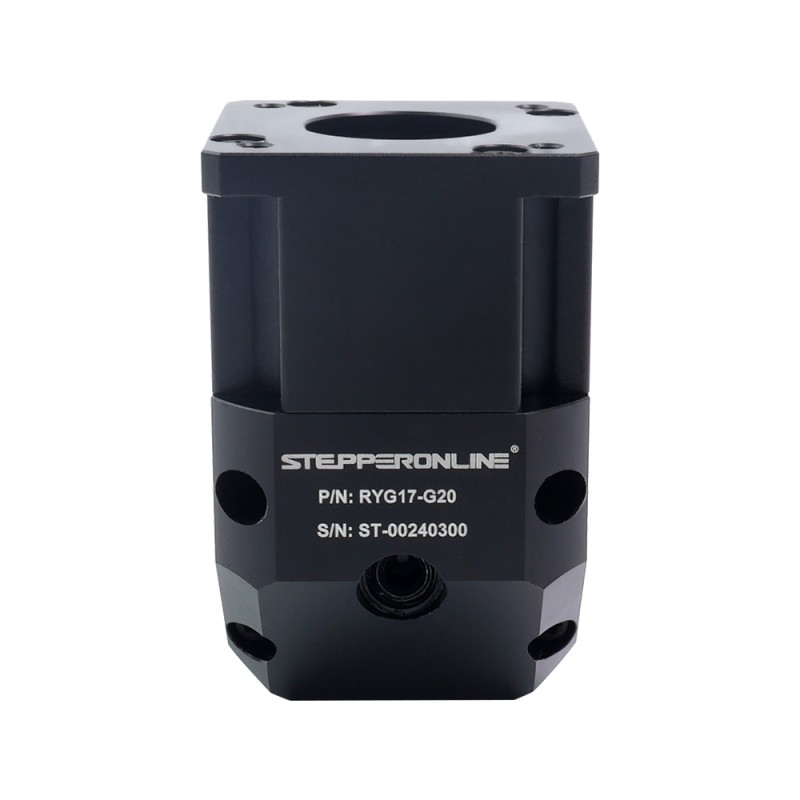

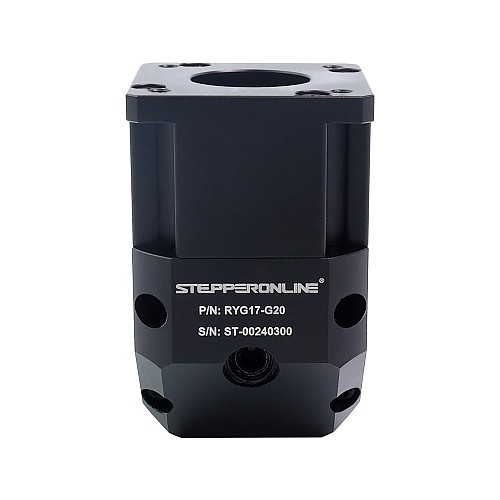

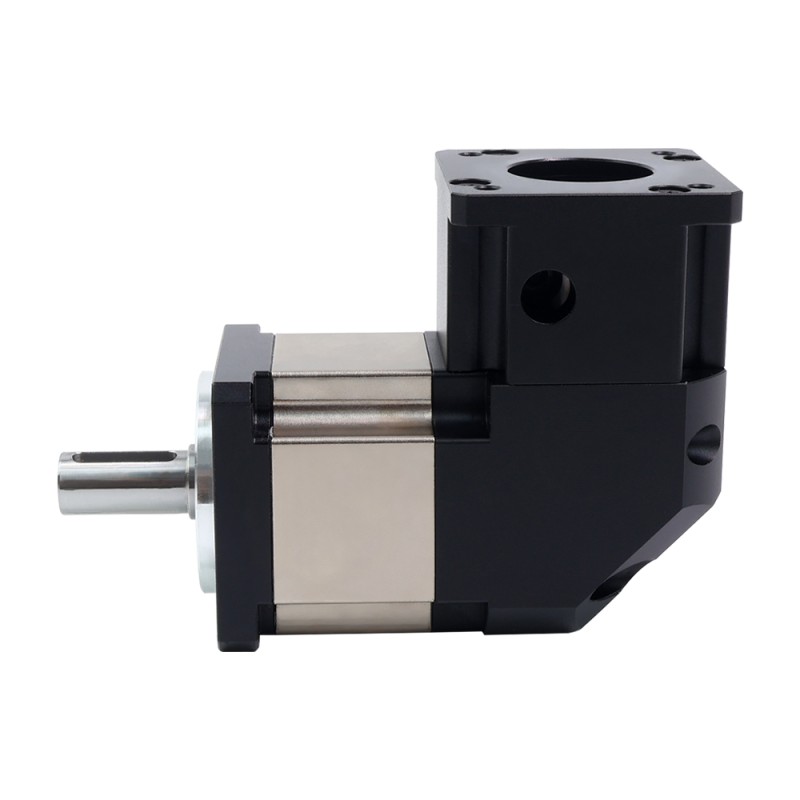

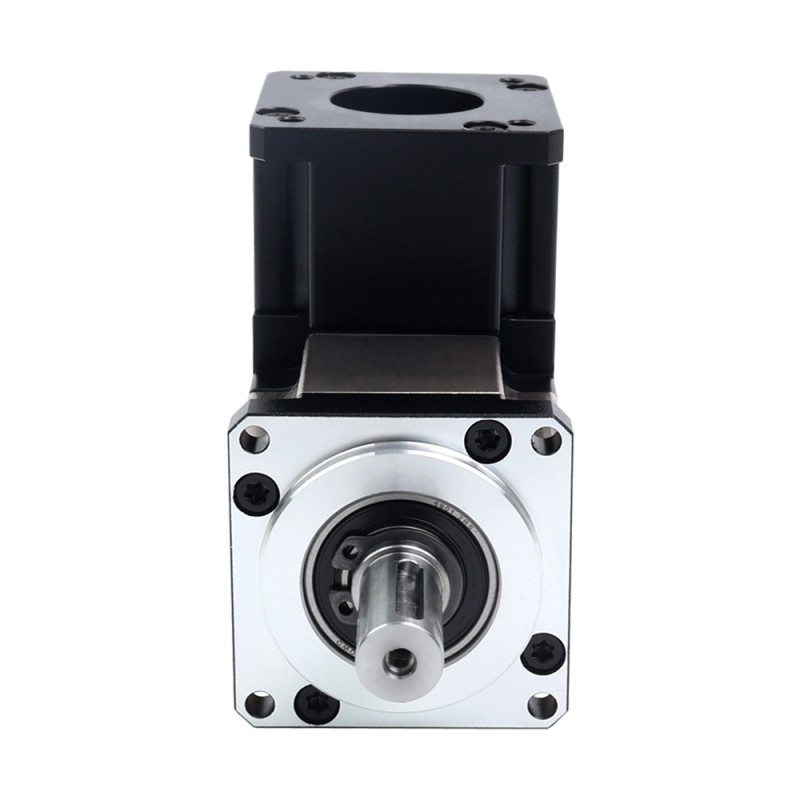

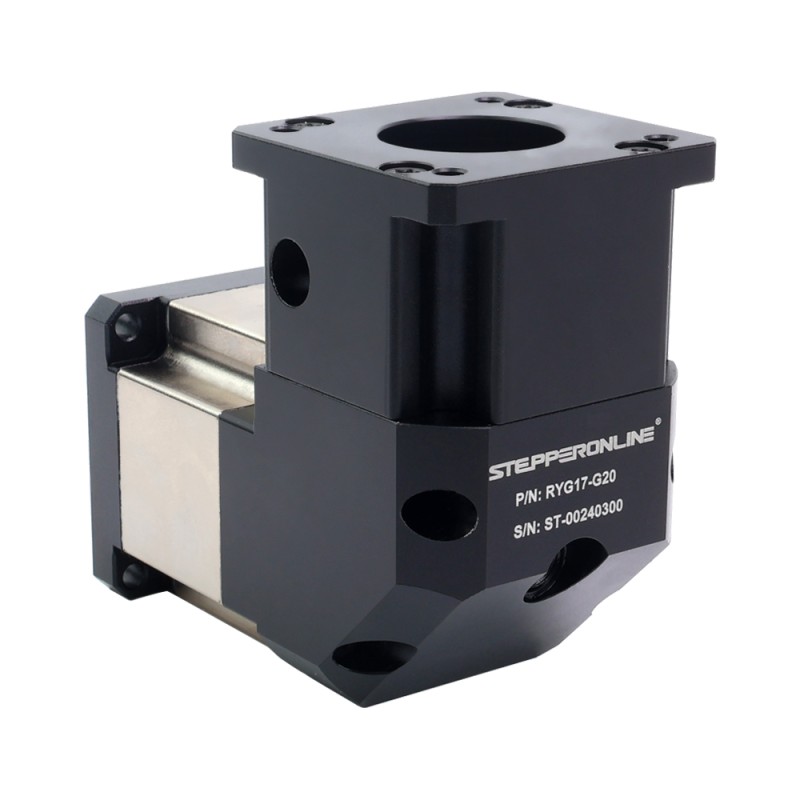

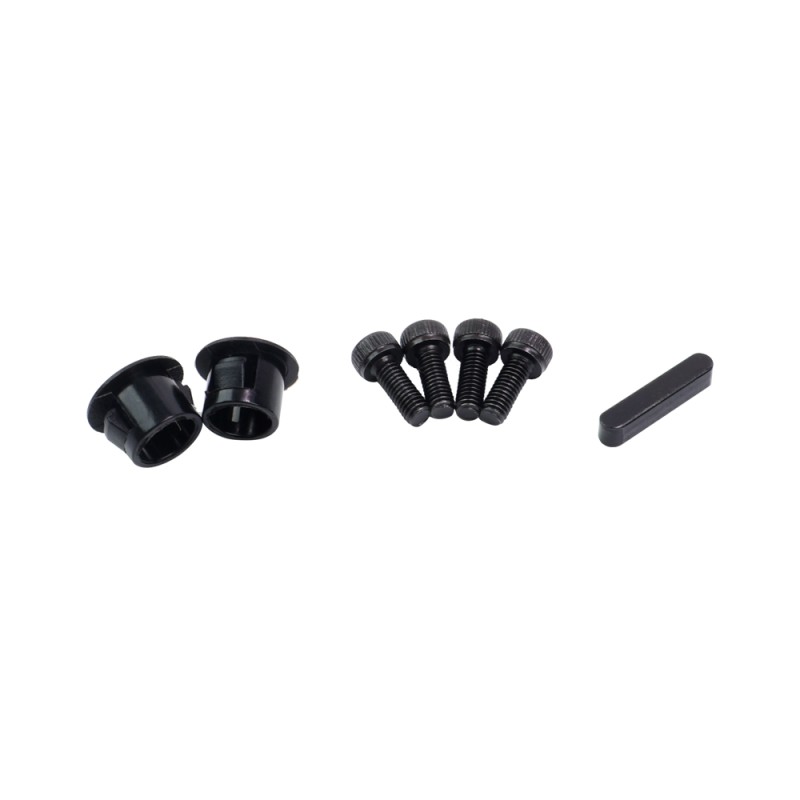

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This right angle gearbox is designed for Nema 17 Stepper Motor and the high speed and low speed shaft have a 90-degree or right angle relationship.
One of the main advantages of this right angle gearbox is its compact size and ability to fit into tight spaces, making it a popular choice for applications where the driving equipment needs to be close to the driven equipment, such as on conveyors or other machinery.

Note: When the rated input speed of the gearbox is 1000RPM, the noise value is <=55dB; when the rated input speed is 3000RPM, the noise value is <=65dB.

Gearbox Specifications

Part Number: RYG17-G20
Gearbox Type: Right Angle Planetary
Gear Material: Alloy Steel
Gear Ratio: 20:1
Efficiency: 94%
Backlash at No-load: <=20arcmin
Max.Permissible Torque: 12Nm(106.21lb-in)
Moment Permissible Torque: 24Nm(212.42lb-in)
Shaft Maximum Axial Load: 80N
Shaft Maximum Radial Load: 260N
Gearbox Matching Motor's Input Shaft Length:15-30mm
Rated Input Speed: 3000rpm
Max. Input Speed: 6000rpm
Noise: <=60dB
Waterproof Rating: IP54
Life: 20000h
Working Temperature: -10~90℃

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 76.5mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ10mm
Output Shaft Length: 25mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 15 - 30mm
Weight: 632g

Physical Specification
Backlash at No-load	<=20arcmin
Frame Size(mm)	42 x 42
Gear Material	Alloy Steel
Gear Ratio(xx:1)	20
Gearbox Length(mm)	76.5
Gearbox Type	Right Angle Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	15 - 30
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 17 Stepper Motor
Output Shaft Diameter(mm)	10
Output Shaft Length(mm)	25
Output Shaft Type	Keyway
Product Series	RYG
