S Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 8.5Nm(1203.94oz.in)

0 reviews - Write a review

C$102.25

5 + C$96.32

10 + C$91.05

50 + C$86.31

100 + C$82.05

In Stock: 10000
Model: 34IP65S-85
Gross Weight: 4.25kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 3

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

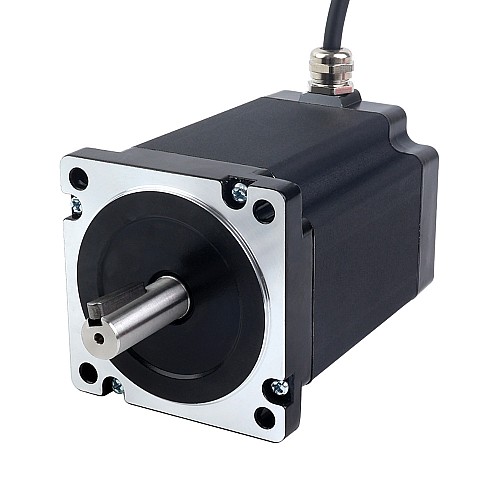

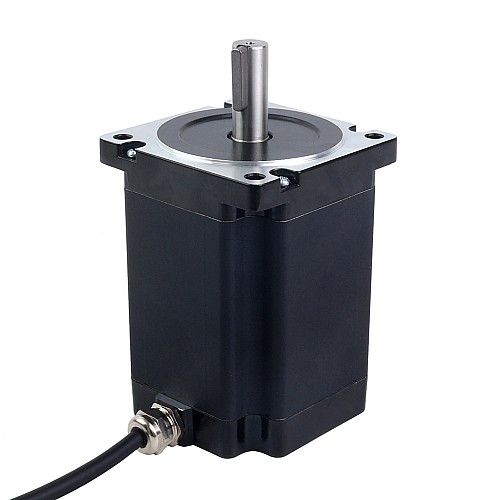

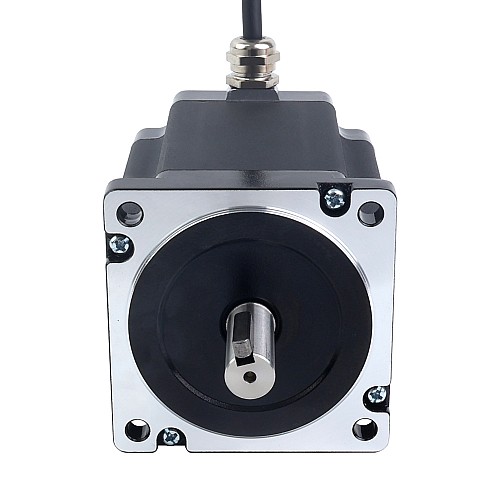

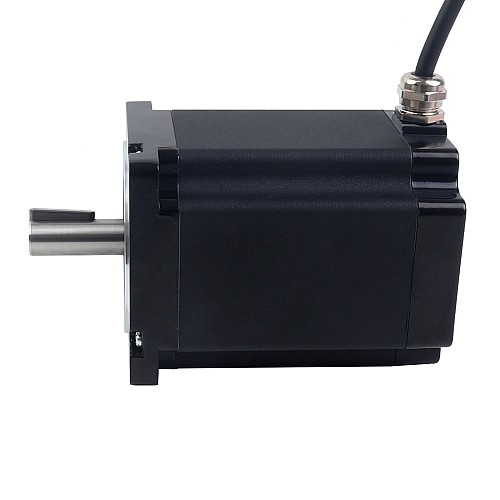

The S Series Nema 34 waterproof stepper motor features an IP65 rating, ensuring superior protection against dust and water. With a holding torque of 8.5Nm (1203.94oz.in), it delivers robust performance for demanding applications.
Based on the P series, the waterproof connector was changed to a standard universal part, and the manufacturing process was optimized. Under the condition of ensuring the same IP65 waterproof rating, the production cost is reduced and the production lead time is shortened.

Electrical Specification

Manufacturer Part Number: 34IP65S-85
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1203.94oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.55ohms
Inductance: 5.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86.3 x 86.3mm
Body Length: 120mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Lead Length: 1000mm
IP Rating: IP65
Weight: 3.9kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1203.94
Inductance(mH)	5.0
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	0.55
Rated Current(A)	6.0
Physical Specification
Body Length(mm)	120
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	65
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Single Shaft
