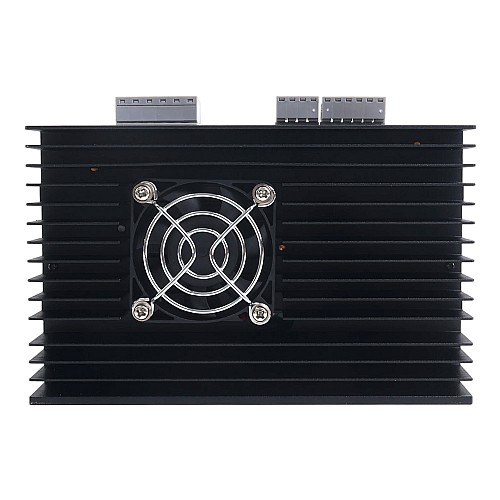

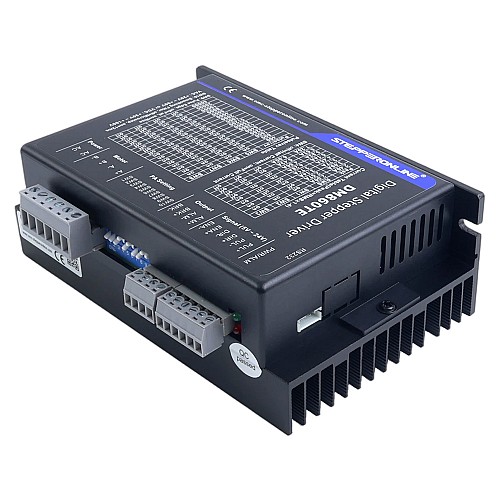

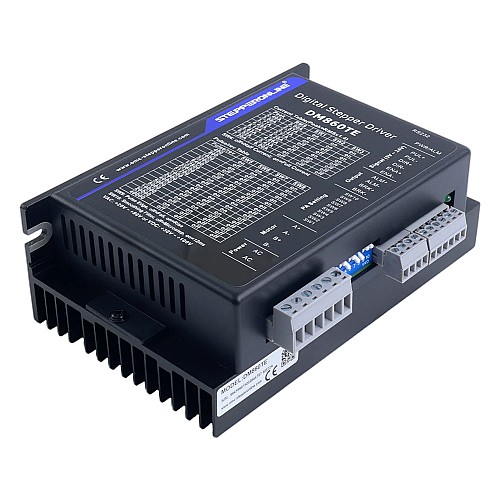

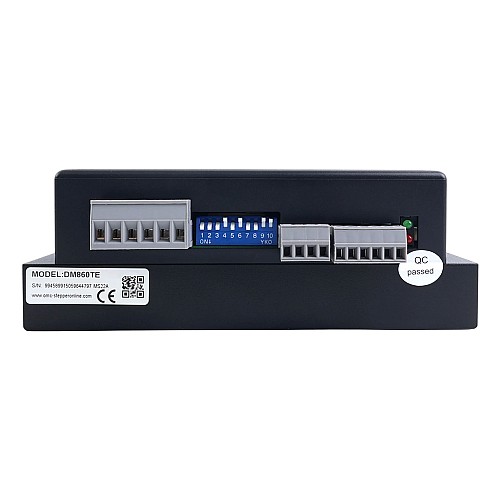

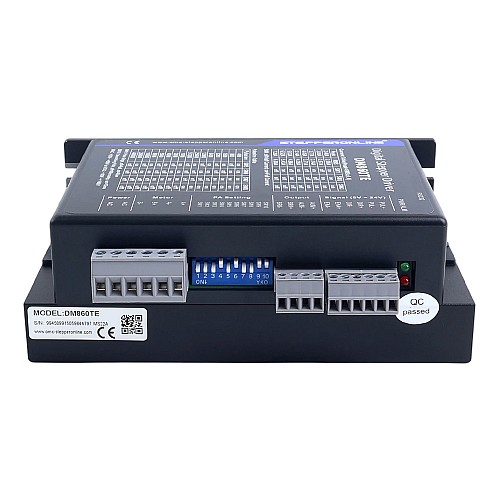

TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor

New

TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor

0 reviews - Write a review

C$40.39

5 + C$39.10

10 + C$37.89

50 + C$36.75

100 + C$35.67

In Stock: 10000
Model: DM860TE
Gross Weight: 0.64kg
Certificated: ISO, CE, UKCA

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

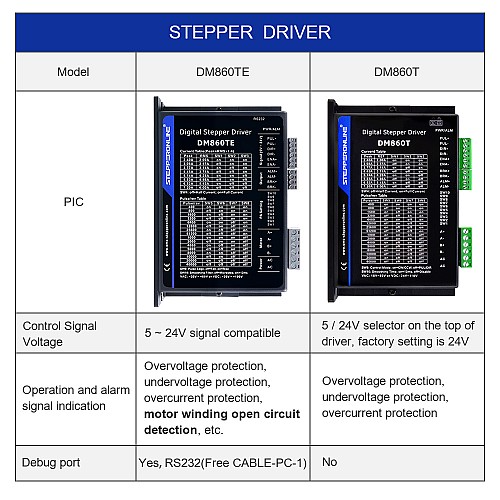

The TE Series stepper drivers are upgraded versions based on the T Series, offering exceptional cost-effectiveness. While retaining nearly identical functionality and performance to the T Series, we have significantly reduced the product entry threshold through cost optimization, making high-quality stepper drives more accessible.
This is a TE series digital stepper driver with output peak current of 2.4~7.2A and input voltage of 20~80VAC/30~100VDC. It is designed for Nema 23, 24, 34 stepper motors with more competitive pricing than DM860T.
Functionally, TE has an exclusive "Motor Winding Open Circuit Detection". This real - time monitoring warns of open - circuit risks, cutting equipment damage and downtime, and boosting reliability. Optically isolated inputs with 5V to 24V enables easy integration with more control systems and simplifying setup. Note that TE series drivers only support single - pulse input.

Key Features

Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-curren protection
Soft-start with no "jump" when powered on
Anti-Resonance provides optimal torque and nulls mid-range instability
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input

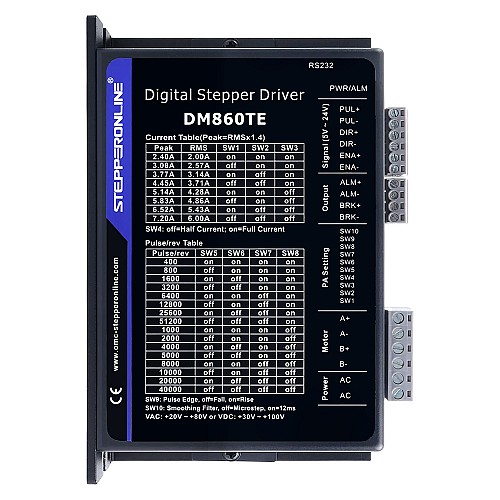

8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000

Electrical Specifications

Output Peak Current: 2.4~7.2A(2.0~6.0RMS)
Input Voltage: +20~80VAC/30~100VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Humidity: 40%RH－90%RH
Operating Temperature: 0℃ － 40℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 65℃

Recommended Driving Voltages for Stepper Motors

Motor Size	Driving Voltage
Nema 23, Nema 24	24 - 48VDC
Nema 34	36 - 60VDC/30 - 70VAC

Product Type
Product Type	Driver
Electrical Specification
Alarm Output	Yes
Analog Input	No
Brake Output	Yes
Control Modes	Pulse Mode
Encoder Feedback	No (Open Loop)
Input Voltage Reference(V)	20 - 80AC / 30 - 110DC
Input Voltage(V)	20 - 80AC / 30 - 100DC
Max. Output Current RMS(A)	6.0
Max. Pulse Input(kHZ)	200
Microstep(Steps/rev.)	400 - 51200
No. of Phase	2
Output Current(A)	2.4 - 7.2
Pulse Width(μs)	2.5
Physical Specification
Installation Type	Split
Inventory Method	Dedicated Inventory
