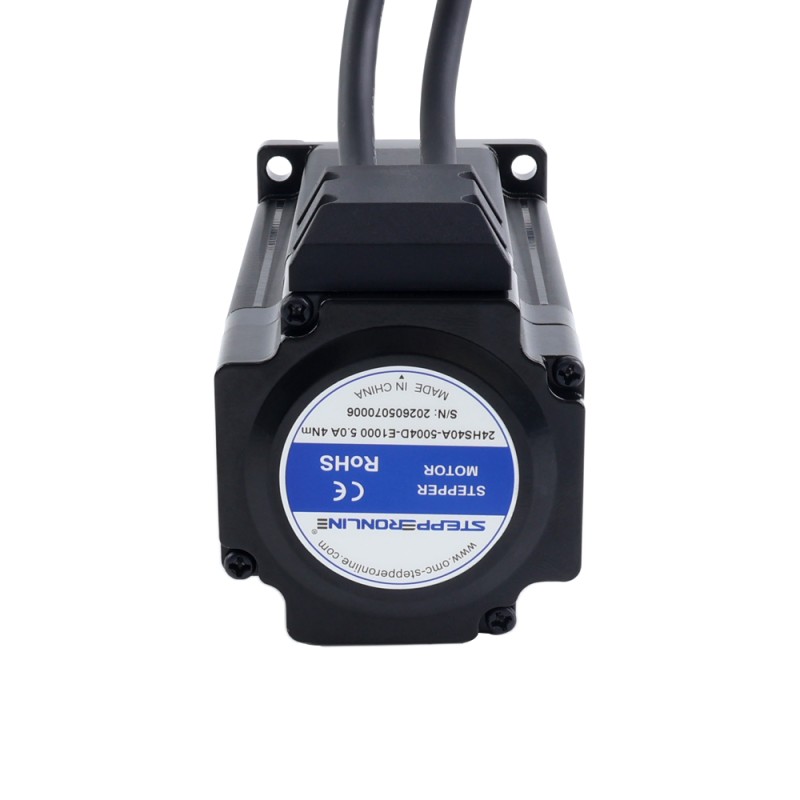

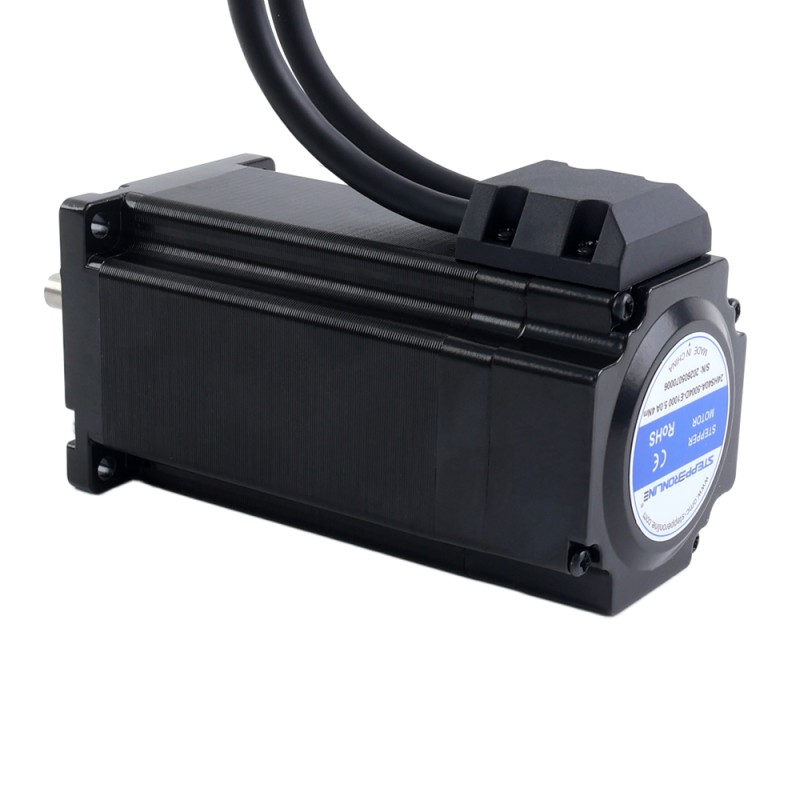

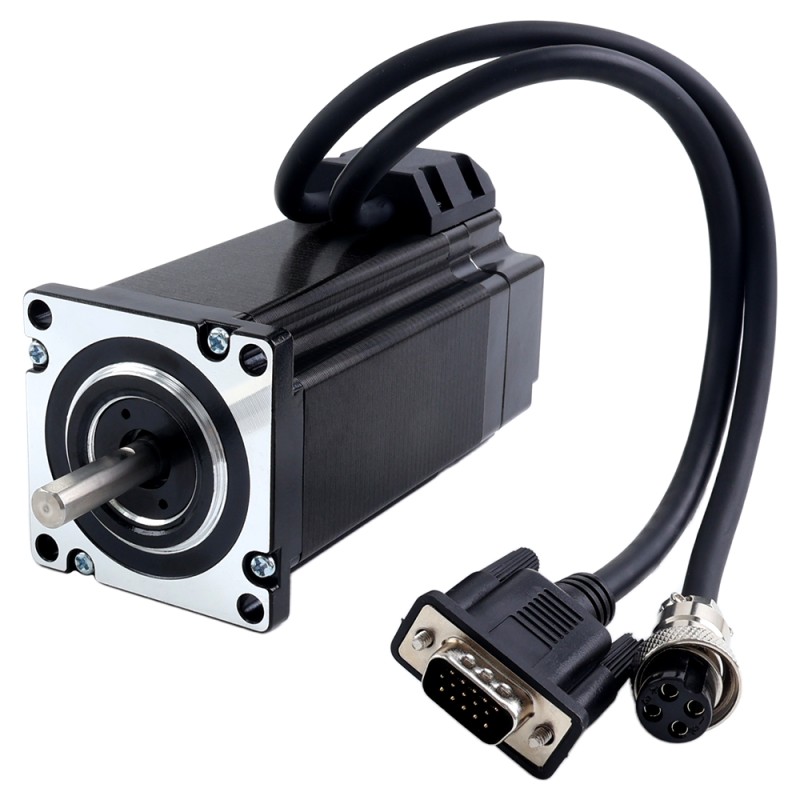

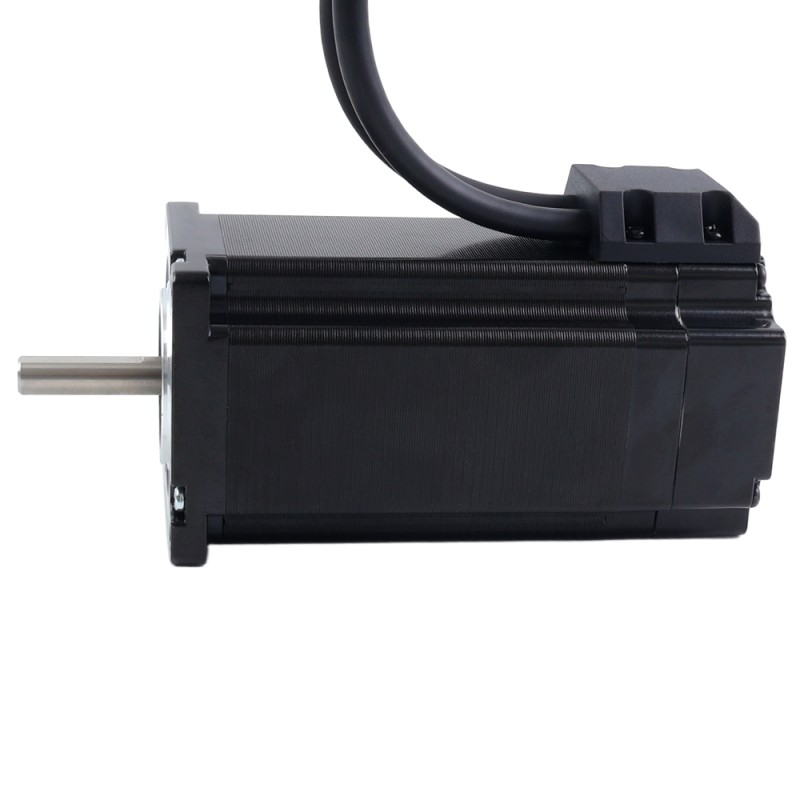

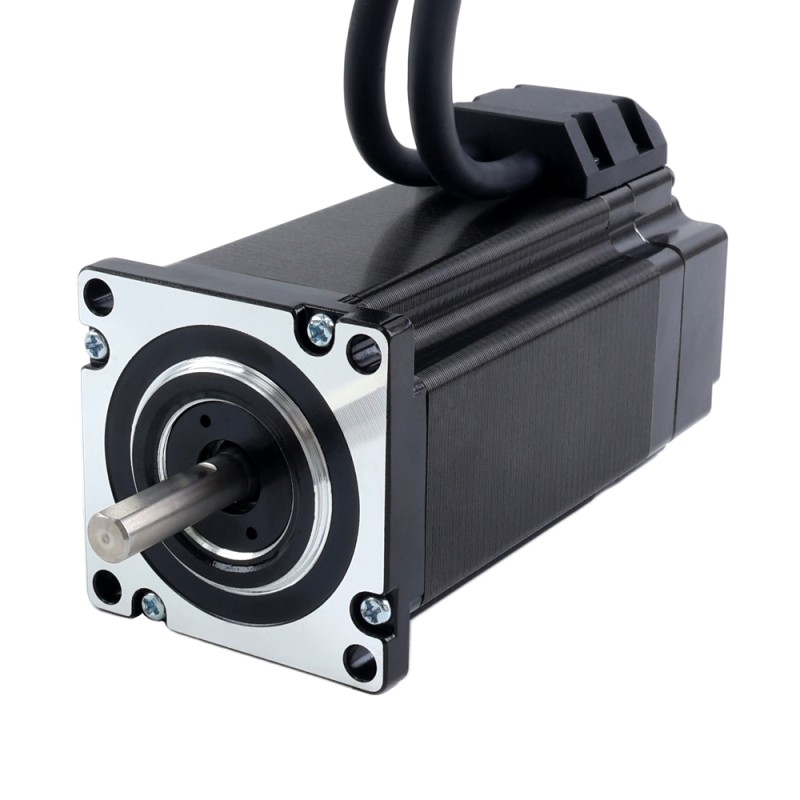

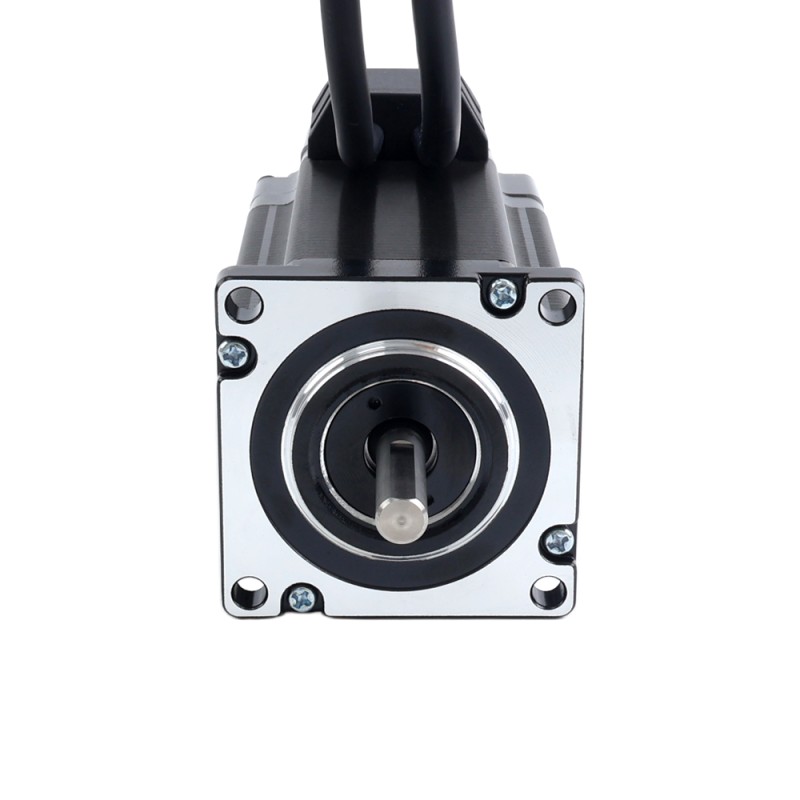

S Series Standard Nema 24 Closed Loop Stepper Motor 4.0Nm(566.45oz.in) Encoder 1000PPR(4000CPR)
0 reviews - Write a review
C$53.33
5 + C$51.14
10 + C$49.11
50 + C$47.24
100 + C$45.50
  • In Stock: 200
  • Model: 24HS40A-5004D-E1000
  • Gross Weight: 2.00kg
  • Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 24 closed-loop stepper motor delivers a holding torque of 4.0Nm(424.83oz.in) and is equipped with a compact optical incremental encoder featuring 2-channel output and a resolution of 1000ppr(4000cpr).
Different from the 24HS40-5004D-E1000, this motor's mounting surface and its Ø8mm shaft diameter with a 30mm shaft length make it compatible with standard Nema 24 input-size gearboxes and motor modules available on the market.

Electrical Specification

  • MPN: 24HS40A-5004D-E1000
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 4.0Nm(566.45oz.in)
  • Rated Current/phase: 5.0A
  • Phase Resistance: 0.6ohms± 10%
  • Inductance: 2.6mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 122mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • D-cut Length: 24mm
  • Cable Length: 300mm
  • Weight: 1.77kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Minimum Supply Voltage: 4.5V
  • Maximum Supply Voltage: 5V
  • Output Current: 25mA
  • Output High Voltage: 4.5V
  • Output Low Voltage: 4.2-4.3V
  • Output Frequency Max: 60kHZ

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-
The applicable bracket for this motor is ST-M13.
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Product Type
Product Type Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 400
Holding Torque(oz.in) 566.45
Inductance(mH) 2.6
Output Circuit Type Differential
Output Signal Channels 2
Phase Resistance(ohms) 0.6
Rated Current(A) 5.0
Physical Specification
Body Length(mm) 122
Frame Size(mm) Nema 24 (60 x 60)
Shaft Diameter(mm) 8
Shaft Length(mm) 30




File Size
24HS40A-5004D-E1000_Full_Datasheet.pdf 194.66KB Download
24HS40A-5004D-E1000_Torque_Curve.pdf 150.06KB Download
24HS40A-5004D-E1000.STEP 6.94MB Download
