3pcs E Series Nema 17 Stepper Motor 1.8deg 60Ncm(84.97oz.in) 2.1A 42x42x60mm 4 Wires - 3-17HE24-2104S | StepperOnline CA

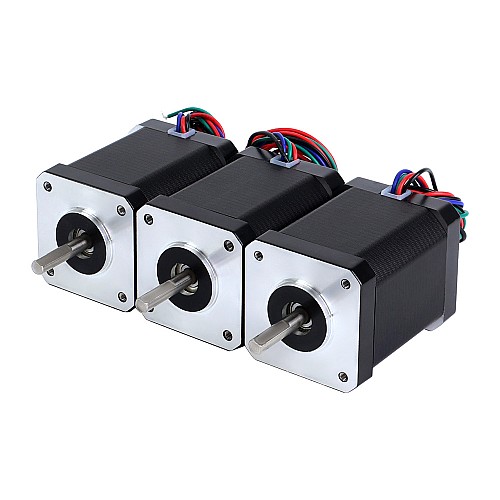

3pcs E Series Nema 17 Stepper Motor 1.8deg 60Ncm(84.97oz.in) 2.1A 42x42x60mm 4 Wires

0 reviews - Write a review

C$39.83

5 + C$38.30

10 + C$36.90

50 + C$35.59

100 + C$34.38

In Stock: 10000
Model: 3-17HE24-2104S
Gross Weight: 1.65kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a economic bipolar Nema 17 stepper motor with a step angle of 1.8deg and size of 42x42x60mm. It has 4 wires, draws 2.1A per phase and has a holding torque of 60Ncm(84.97oz.in).

Package includes: 3 x 17HE24-2104S

Electrical Specification

Manufacturer Part Number: 17HE24-2104S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 60Ncm(84.97oz.in)
Rated Current/Phase: 2.1A
Phase Resistance: 1.7ohms±10%
Inductance: 3.1mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	60
Holding Torque(oz.in)	84.97
Inductance(mH)	3.1
Phase Resistance(ohms)	1.7
Rated Current(A)	2.1
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
