Name: SDR-240-48 | SDR-240-48 MEANWELL 240W 48VDC 5A 115/230VAC Single Output Industrial DIN RAIL With PFC Function | StepperOnline CA
Brand: MEANWELL
SKU: SDR-240-48
Price: 134.34 CAD
Availability: PreOrder

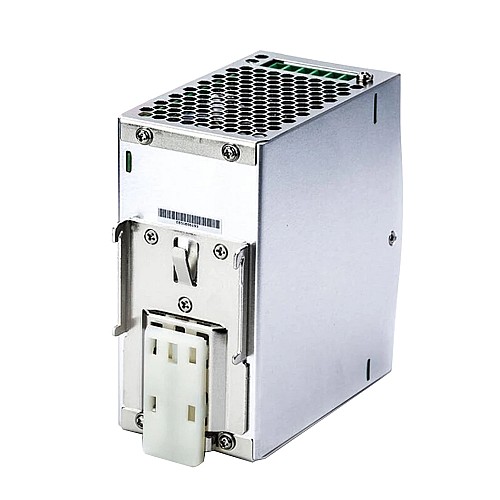

SDR-240-48 MEANWELL 240W 48VDC 5A 115/230VAC Single Output Industrial DIN RAIL With PFC Function

0 reviews - Write a review

C$134.34

5 + C$130.42

10 + C$126.72

50 + C$123.22

100 + C$119.91

In Stock: Pre-order
Brand: MEANWELL
Model: SDR-240-48
Gross Weight: 1.03kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
48V DC 5A output
AC input voltage range: 88 ~ 264VAC
Rated power: 240W
High efficiency 94% and low power dissipation
150% peak load capability
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	94%
Max. Output Current(A)	5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	63 x 125.2 x 113.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	88 - 264 / 124 - 370
Output Voltage(VDC)	48
PFC Function	No
Power Type	DIN Rail Power Supply
Power(W)	240
Physical Specification
Inventory Method	Shared Inventory
