Name: SDR-480P-48 | SDR-480P-48 MEANWELL 480W 48VDC 10A 115/230VAC Single Output Industrial DIN RAIL With PFC and Parallel Function | StepperOnline CA
Brand: MEANWELL
SKU: SDR-480P-48
Price: 214.29 CAD
Availability: PreOrder

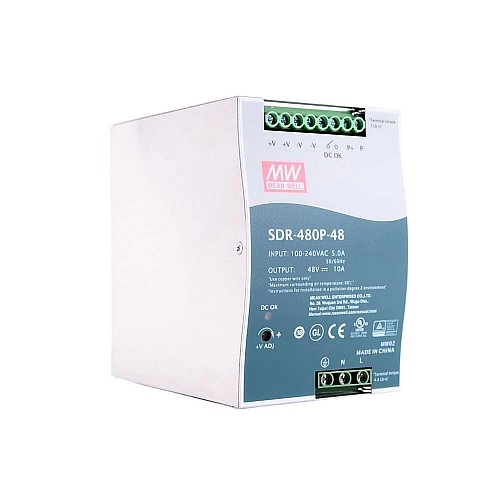

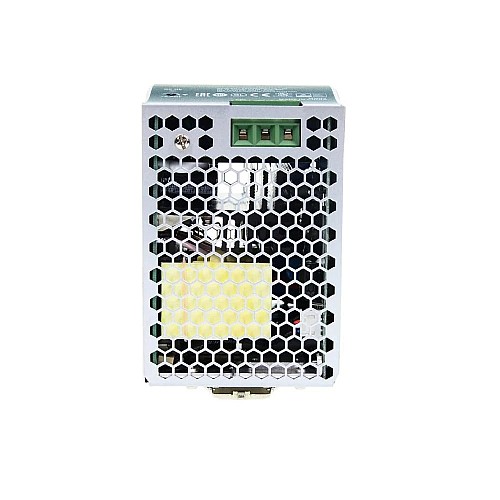

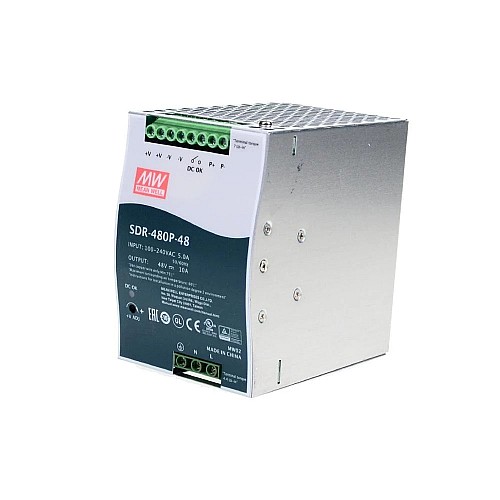

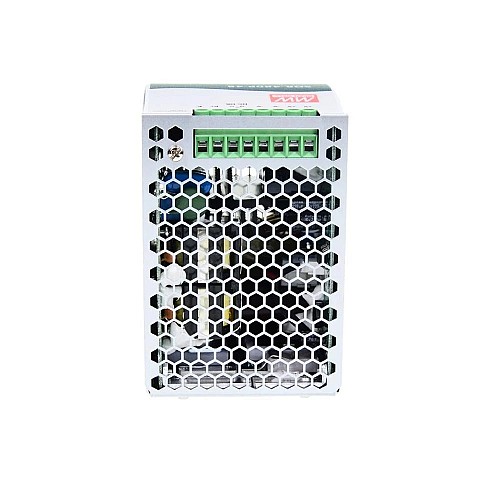

SDR-480P-48 MEANWELL 480W 48VDC 10A 115/230VAC Single Output Industrial DIN RAIL With PFC and Parallel Function

0 reviews - Write a review

C$214.29

5 + C$208.04

10 + C$202.14

50 + C$196.56

100 + C$191.29

In Stock: Pre-order
Brand: MEANWELL
Model: SDR-480P-48
Gross Weight: 1.60kg
Certificated: ISO, CE, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
48V DC 10A output
AC input voltage range: 90 ~ 264VAC
Rated power: 480W
High efficiency 94% and low power dissipation
150% peak load capability
Built-in active PFC function, PF>0.94
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

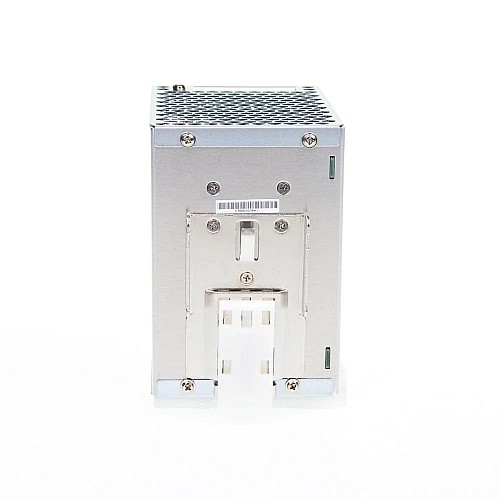

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	94%
Max. Output Current(A)	10
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	85.5 x 125.2 x 128.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	48
PFC Function	No
Power Type	DIN Rail Power Supply
Power(W)	480
Physical Specification
Inventory Method	Shared Inventory
