Name: SE-600-48 | SE-600-48 MEANWELL 600W 12.5A 48V Single Output Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: SE-600-48
Availability: InStock

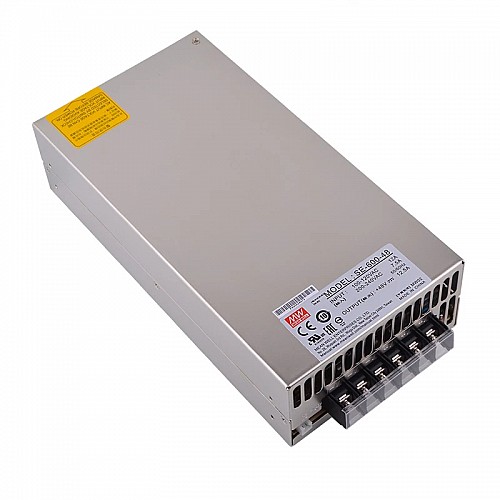

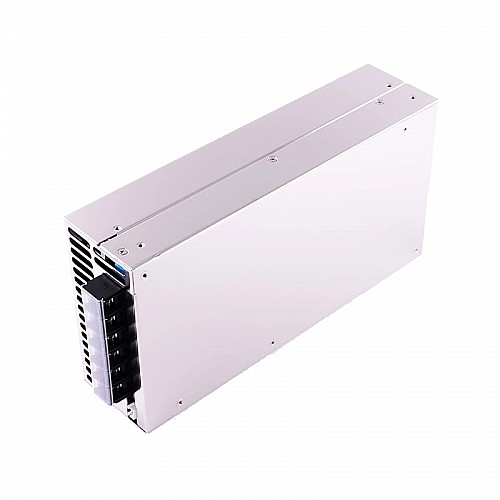

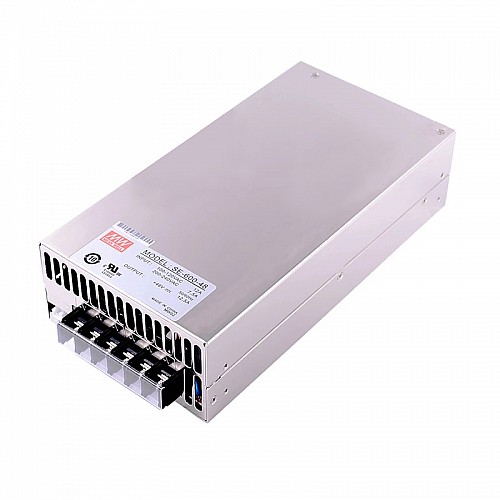

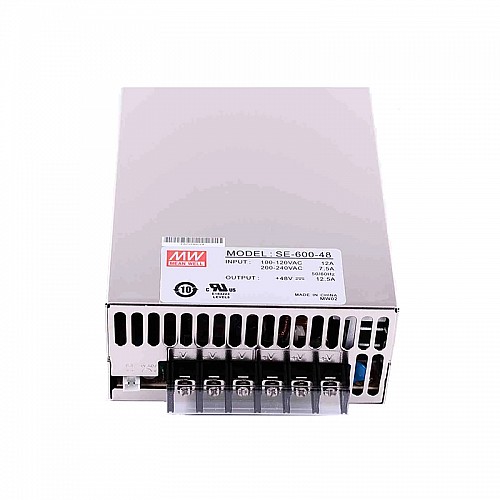

SE-600-48 MEANWELL 600W 12.5A 48V Single Output Power Supply

0 reviews - Write a review

C$0.00

In Stock: 1
Brand: MEANWELL
Model: SE-600-48
Gross Weight: 2.50kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
48V DC 12.5A output
AC input voltage range: 180 ~ 264VAC
Rated power: 600W
AC input active surge current limiting
AC input range selected by switch
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 4.9w/in³
Built-in remote sense function
UL approved
Low cost
2 years warranty

Electrical Specification
Efficiency(%)	88%
Max. Output Current(A)	12.5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	247 x 127 x 63.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 132 / 180 - 264
Output Voltage(VDC)	48
PFC Function	No
Power Type	Switching Power Supply
Power(W)	600
Physical Specification
Inventory Method	Dedicated Inventory
