Short Shaft Nema 11 Bipolar 1.8deg 12Ncm(16.99oz.in) 0.7A 28x28x51mm 4 Wires

0 reviews - Write a review

C$17.03

5 + C$16.15

10 + C$15.35

50 + C$14.62

100 + C$13.97

In Stock: 10000
Model: 11HS20-0704S
Gross Weight: 0.28kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

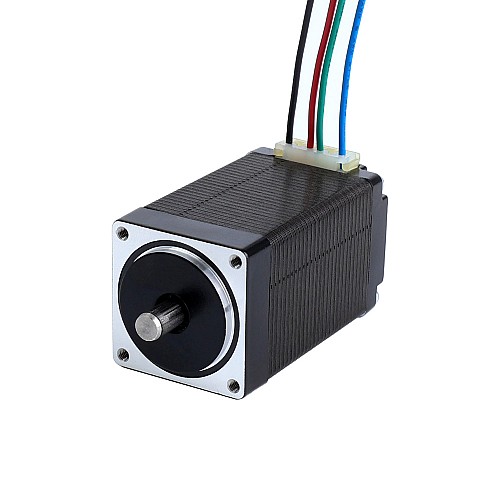

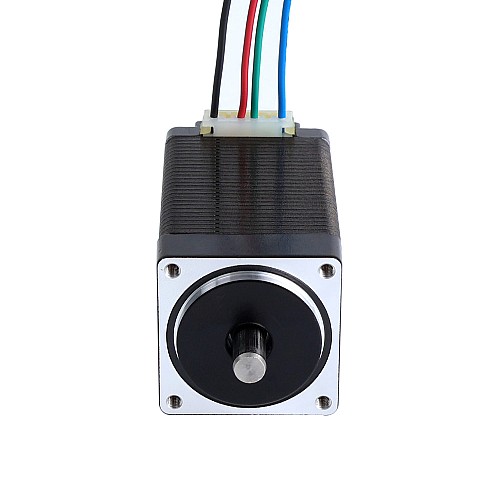

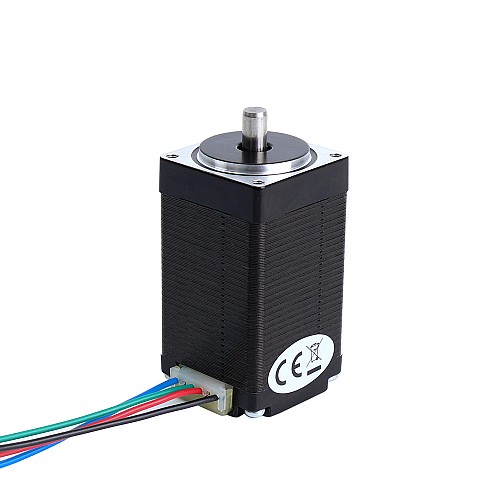

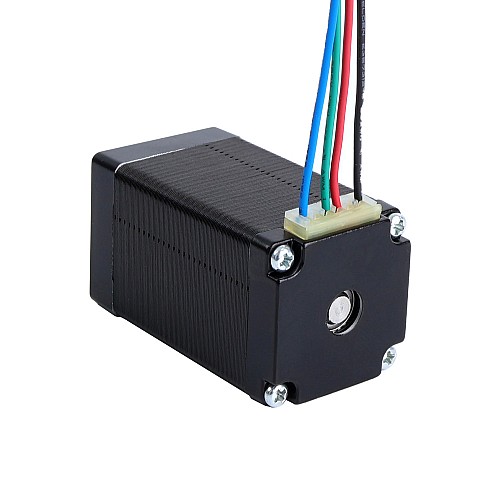

This mini nema 11 bipolar stepper motor with step angle 1.8deg, short shaft 9.5mm and size 28x28x51mm. It has 4 wires and holding torque 12Ncm(16.99oz.in). It is intended for use with Nema 11 EG series planetary gearboxes.

Electrical Specification

Manufacturer Part Number: 11HS20-0704S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 12Ncm(16.99oz.in)
Rated Current/phase: 0.70A
Phase Resistance: 8.0ohms
Inductance: 5.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 51mm
Shaft Diameter: Φ5mm
Shaft Length: 9.5mm
Number of Leads: 4
Lead Length: 500mm
Weight: 194g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	12
Holding Torque(oz.in)	16.99
Inductance(mH)	5.2
Phase Resistance(ohms)	8.0
Rated Current(A)	0.7
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	51
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	9.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	194
