Short Shaft Nema 23 Bipolar 1.89Nm(267.65oz.in) 2.9A 57x57x76.5mm 4 Wires

0 reviews - Write a review

C$27.02

5 + C$25.75

10 + C$24.60

50 + C$23.55

100 + C$22.57

In Stock: 10000
Model: 23HS30-2904S
Gross Weight: 1.12kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 75

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

What Does Amazon German and Amazon US Mean?

Amazon German and Amazon US shipping options mean that this product is fulfilled by Amazon for reliable delivery. This is also usually called FBA.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

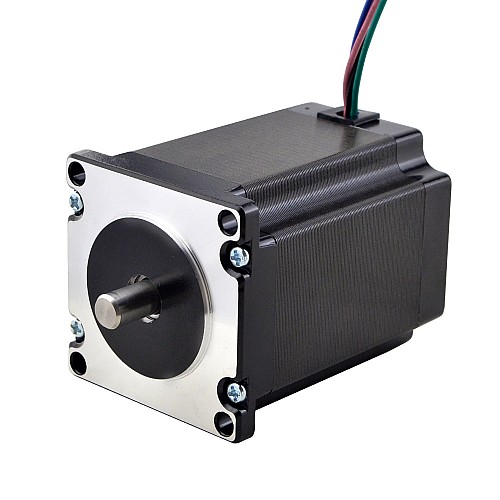

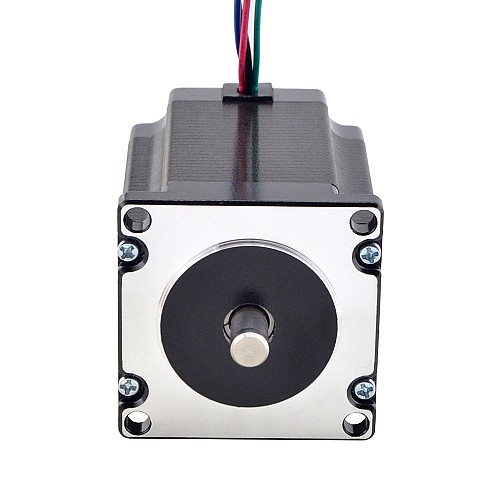

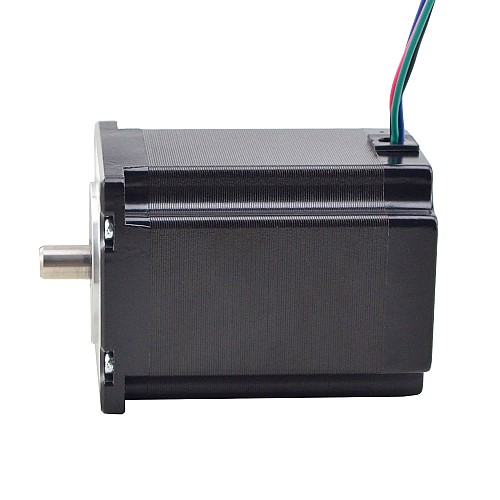

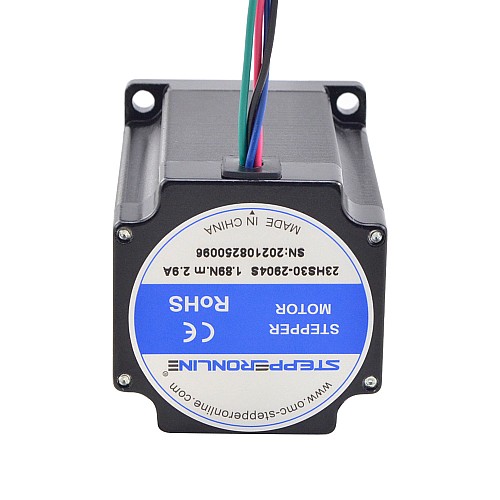

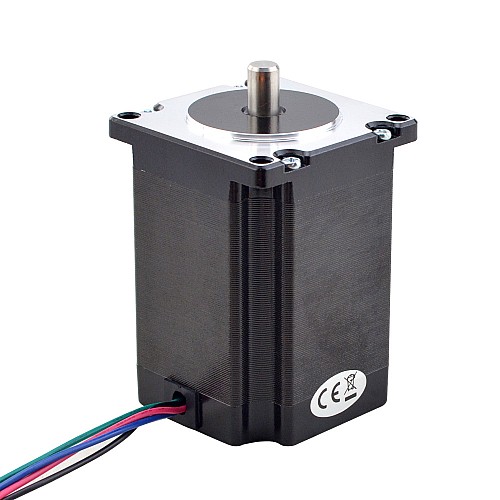

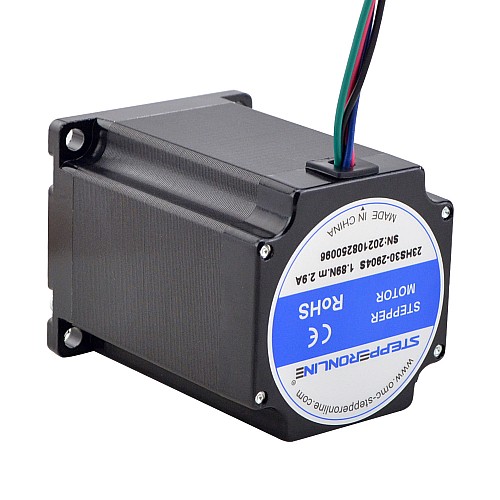

This short shaft Nema 23 stepper motor with 13.5mm length shaft, motor size 57x57x76.5mm. It has 4 wires, each phase draws 2.9A, with holding torque 1.89Nm(267.65oz.in).

Electrical Specification

Manufacturer Part Number: 23HS30-2904S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.89Nm(267.65oz.in)
Rated Current/phase: 2.9A
Phase Resistance: 1.13ohms
Inductance: 4.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76.5mm
Shaft Diameter: Φ8mm
Shaft Length: 13.5mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.05kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	189
Holding Torque(oz.in)	267.65
Inductance(mH)	4.8
Phase Resistance(ohms)	1.13
Rated Current(A)	2.9
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	13.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1200
