Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires - 23HS32-4004S | StepperOnline CA

Hot

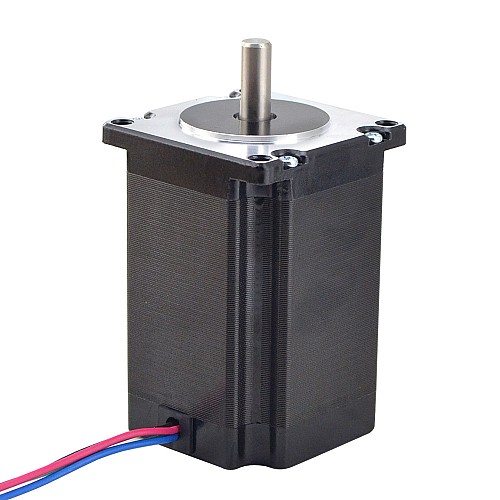

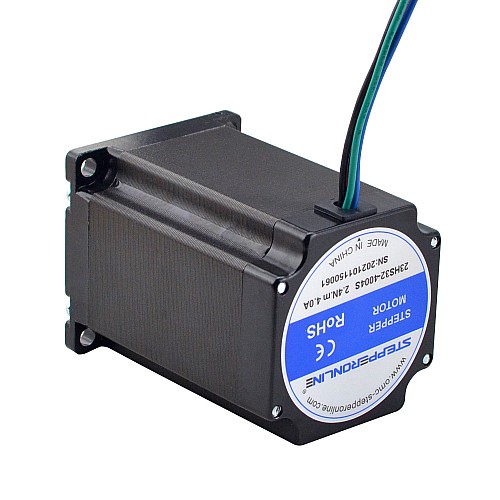

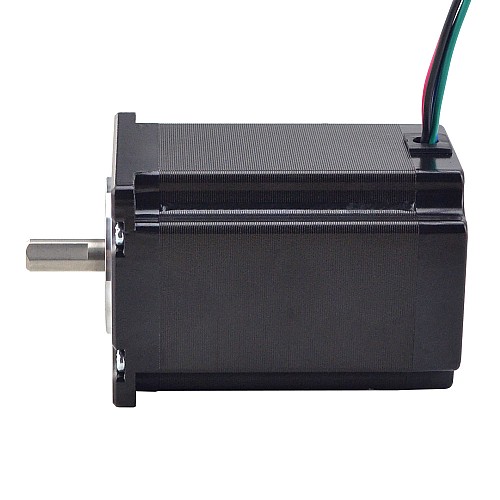

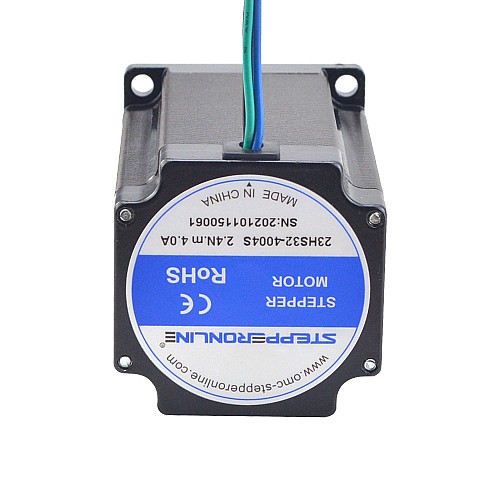

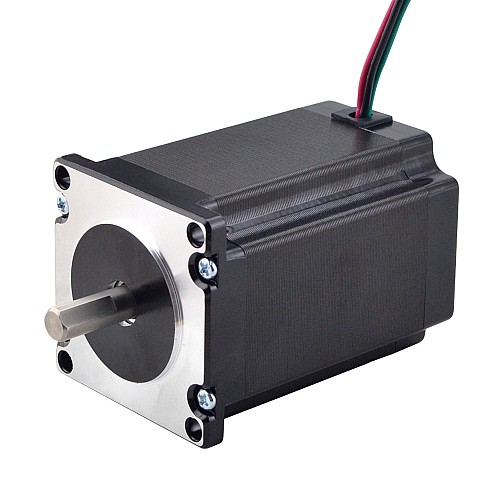

Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires

13 reviews - Write a review

C$28.00

5 + C$26.68

10 + C$25.49

50 + C$24.38

100 + C$23.38

In Stock: 10000
Model: 23HS32-4004S
Gross Weight: 1.40kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Australia

Russia

Japan

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 23HS32-4004S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 2.4Nm(339.87oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.65ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 82mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 1.2kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	240
Holding Torque(oz.in)	339.87
Inductance(mH)	3.2
Phase Resistance(ohms)	0.9
Rated Current(A)	4.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	82
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1200
