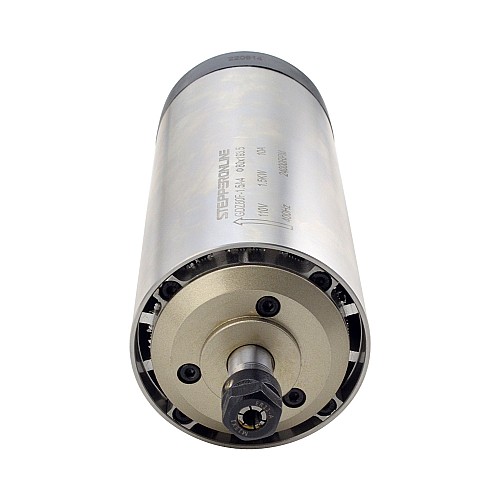

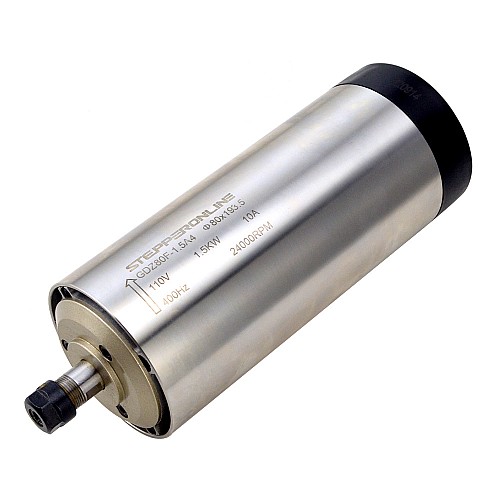

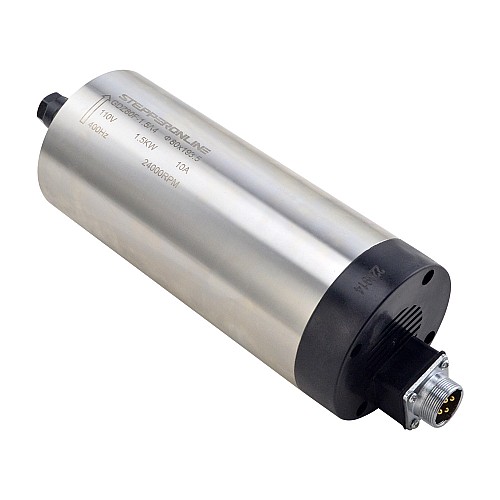

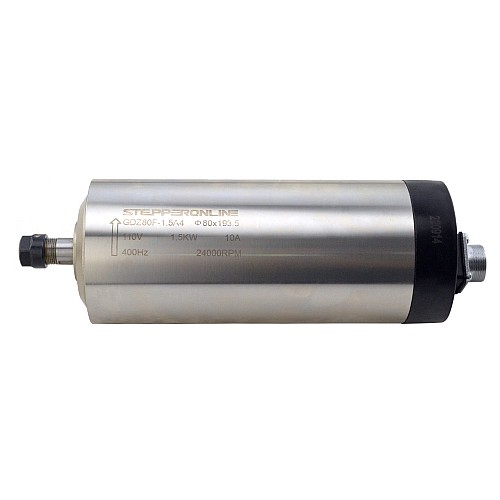

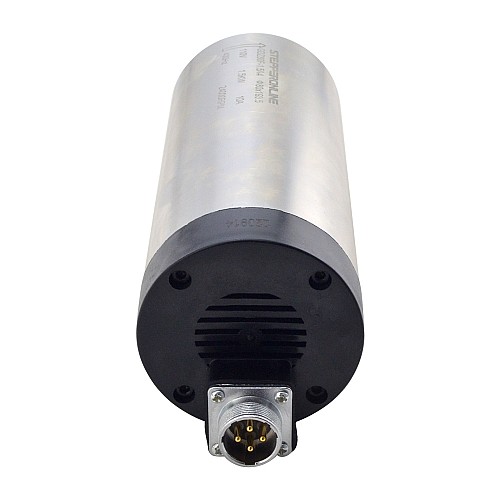

CNC Spindle Motor Air Cooled 110V 1.5KW 24000RPM 400Hz ER11 Collet

0 reviews - Write a review

C$132.28

5 + C$128.42

10 + C$124.78

50 + C$121.33

100 + C$118.07

In Stock: 10000
Model: GDZ80F-1.5A4
Gross Weight: 4.40kg
Certificated: ISO

Sold: 41

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Specification

Manufacturer Part Number: GDZ80F-1.5A4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80mm, Length:195mm)
Power: 1.5KW
Voltage: 110VAC
Current: 10A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER11 Collet(6 mm)
Bearings: 2x7002, 2x7002
Weight: 4.05kg

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	195
Collet Size	ER11
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	1.5
Shape	Round
Voltage(VAC)	110
Electrical Specification
Current(A)	10
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7002, 2x7002
Inventory Method	Dedicated Inventory
Weight(Kg)	4.05
