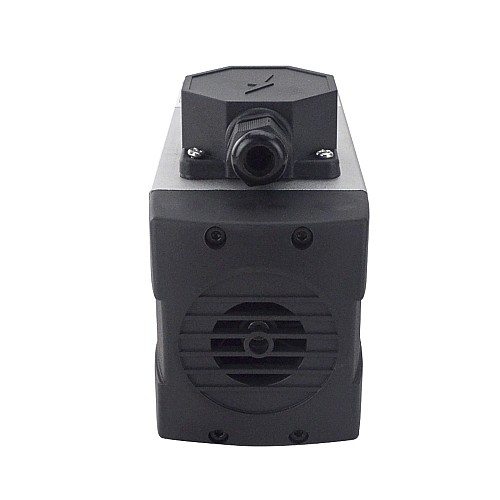

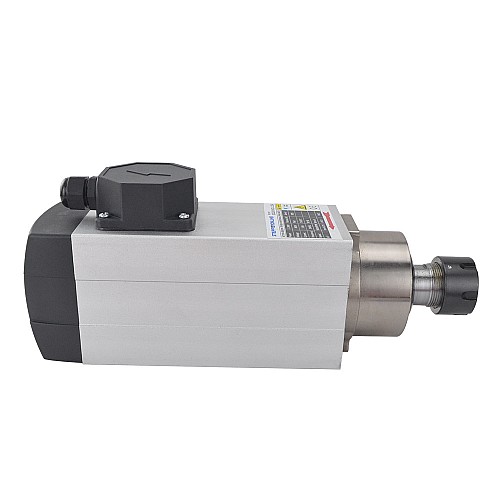

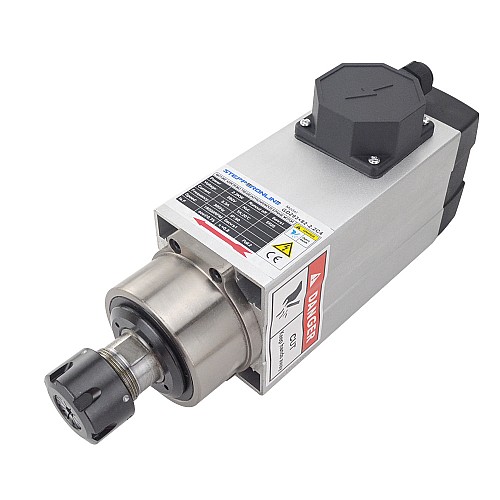

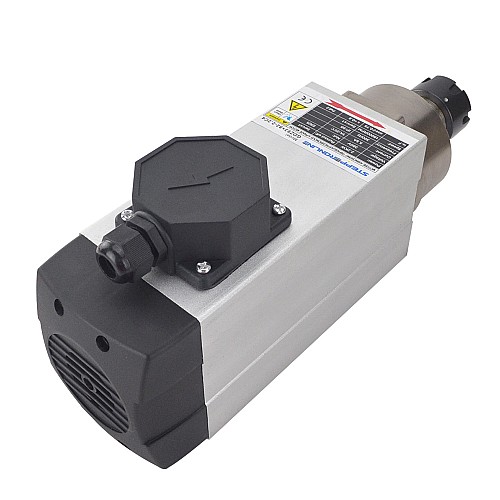

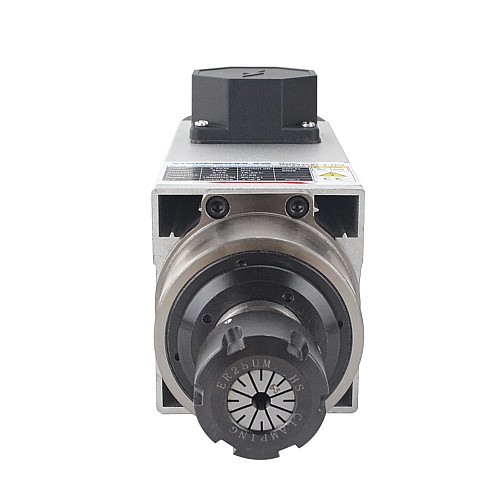

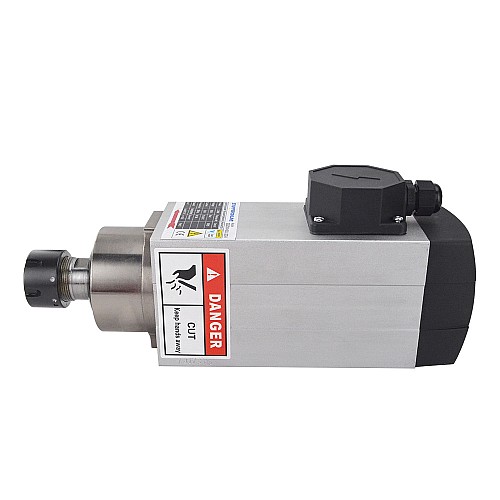

CNC Spindle Motor Air Cooled 380V 2.2KW 18000RPM 300Hz ER25 Collet

0 reviews - Write a review

C$388.03

5 + C$376.69

10 + C$366.00

50 + C$355.91

100 + C$346.36

In Stock: 10000
Model: GDZ93x82-2.2C4
Gross Weight: 8.00kg
Certificated: ISO

Sold: 12

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Specification

Manufacturer Part Number: GDZ93x82-2.2C4
Material: Stainless steel
Size: 174x82(Length: 174mm, Width: 82mm)
Power: 2.2KW
Voltage: 380VAC
Current: 5.5A
Frequency: 0 ~ 300Hz
Speed: 0 ~ 18000RPM
Cooling: Air cooled
Bearing Lubrication: Grease

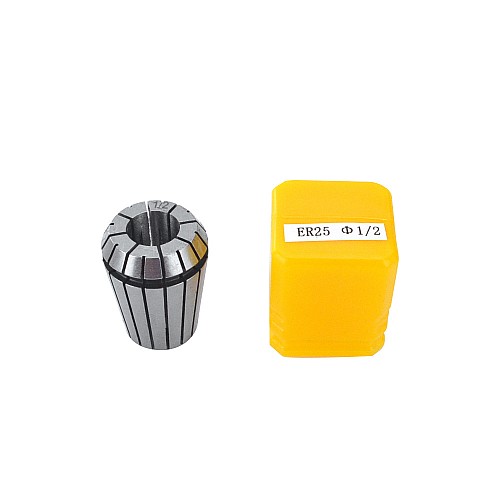

Collet size: ER25 Collet(6mm, 12.7mm)
Bearings: 2x7007(P4), 2x7002C(P4)
Weight: 7.5kg

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Height(mm)	93
Body Length(mm)	174
Body Width(mm)	82
Collet Size	ER25
Material	Stainless steel
Power(Kw)	2.2
Shape	Square
Voltage(VAC)	380
Electrical Specification
Frequency(Hz)	0 - 300
Speed(rpm)	0 - 18000
Physical Specification
Bearings	2x7007(P4), 2x7002C(P4)
Inventory Method	Dedicated Inventory
Weight(Kg)	7.5
