Model: GDZ80-2.2A
Specification
Manufacturer Part Number: GDZ80-2.2A
Material: Stainless steel
Size: Ø80x210(Middle body diameter: 80mm, Length:210mm)
Power: 2.2KW
Voltage: 110VAC
Current: 16A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER20 Col..
C$191.07

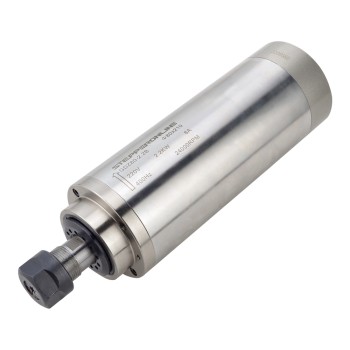

Model: GDZ80-2.2B
Specification
Manufacturer Part Number: GDZ80-2.2B
Material: Stainless steel
Size: Ø80x210(Middle body diameter: 80mm, Length:210mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER20 Coll..
C$161.68
Model: GDZL80x73-2.2B4
This air cooled 2.2KW square spindle motor,comes with 24000rpm high speed, ER20 collet, works at 3 phase 220V 400Hz, has dimension of 193.5x80x73mm and flange for easy installation. It is designed for applications that require motors to operate accurately at extremely high speeds and widely applied ..
C$182.26

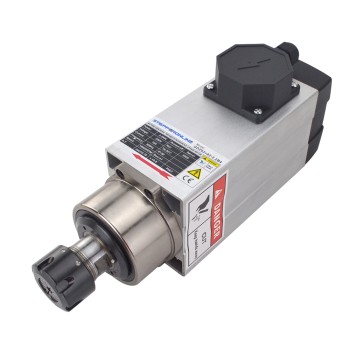

Model: GDZ93x82-2.2B4
Specification
Manufacturer Part Number: GDZ93x82-2.2B4
Material: Stainless steel
Size: 172x82(Length: 172mm, Width: 82mm)
Power: 2.2KW
Voltage: 220VAC
Current: 10A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 18000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER25 Collet(6mm, 12..
C$388.03

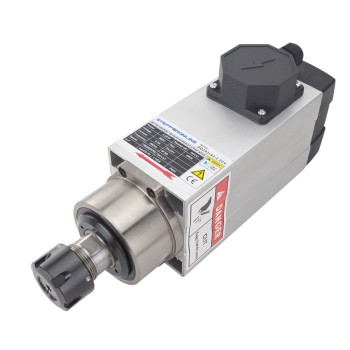

Model: GDZ93x82-2.2C4
Specification
Manufacturer Part Number: GDZ93x82-2.2C4
Material: Stainless steel
Size: 174x82(Length: 174mm, Width: 82mm)
Power: 2.2KW
Voltage: 380VAC
Current: 5.5A
Frequency: 0 ~ 300Hz
Speed: 0 ~ 18000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER25 Collet(6mm, 1..
C$388.03
