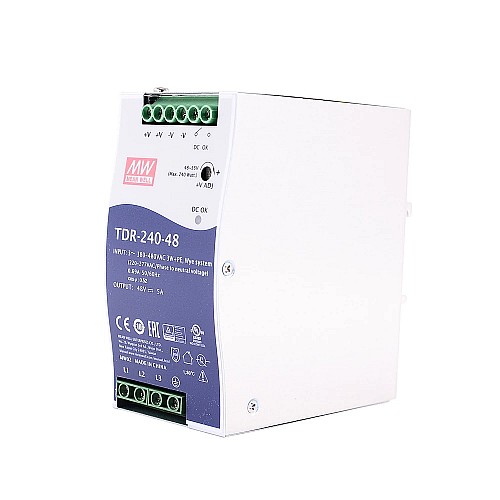

TDR-240-48 MEANWELL 240W 48VDC 5A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function
0 reviews - Write a review
C$119.05
5 + C$115.57
10 + C$112.30
50 + C$109.19
100 + C$106.26
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: TDR-240-48
  • Gross Weight: 1.00kg
  • Certificated: ISO, CE, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

  • Brand MEANWELL
  • 48V DC 5A output
  • AC input voltage range: Three-phase 340 ~ 550VAC
  • Rated power: 240W
  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Buil-in DC OK relay contact
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Electrical Specification
Efficiency(%) 92%
Max. Output Current(A) 5
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 63 x 125.2 x 113.5
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 340 - 550 / 480 - 780
Output Voltage(VDC) 48
PFC Function No
Power Type DIN Rail Power Supply
Power(W) 240
Physical Specification
Inventory Method Shared Inventory
File Size
TDR-240.pdf 384.96KB Download
