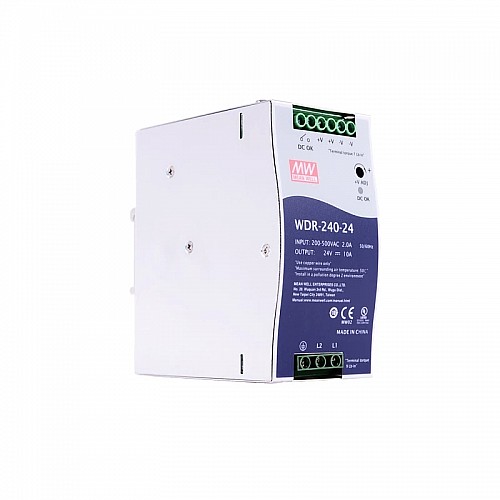

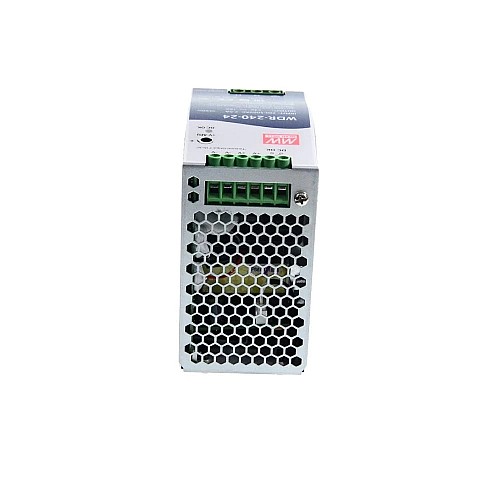

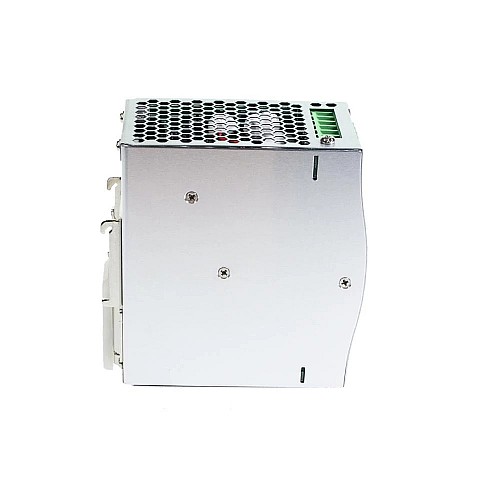

WDR-240-24 MEANWELL 240W 24VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply

Name: WDR-240-24 | WDR-240-24 MEANWELL 240W 24VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: WDR-240-24
Price: 171.67 CAD
Availability: PreOrder

WDR-240-24 MEANWELL 240W 24VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-240-24 | StepperOnline CA

WDR-240-24 MEANWELL 240W 24VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply

0 reviews - Write a review

C$171.67

5 + C$166.66

10 + C$161.93

50 + C$157.47

100 + C$153.24

In Stock: Pre-order
Brand: MEANWELL
Model: WDR-240-24
Gross Weight: 1.06kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
24V DC 10A output
AC input voltage range: 180 ~ 550VAC
Rated power: 240W
Single and two phase wide input range 180~550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
Buil-in DC OK relay contact
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	91%
Max. Output Current(A)	10
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	63 x 125.2 x 113.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	180 - 550 / 254 - 780
Output Voltage(VDC)	24
PFC Function	Yes
Power Type	DIN Rail Power Supply
Power(W)	240
Physical Specification
Inventory Method	Shared Inventory
