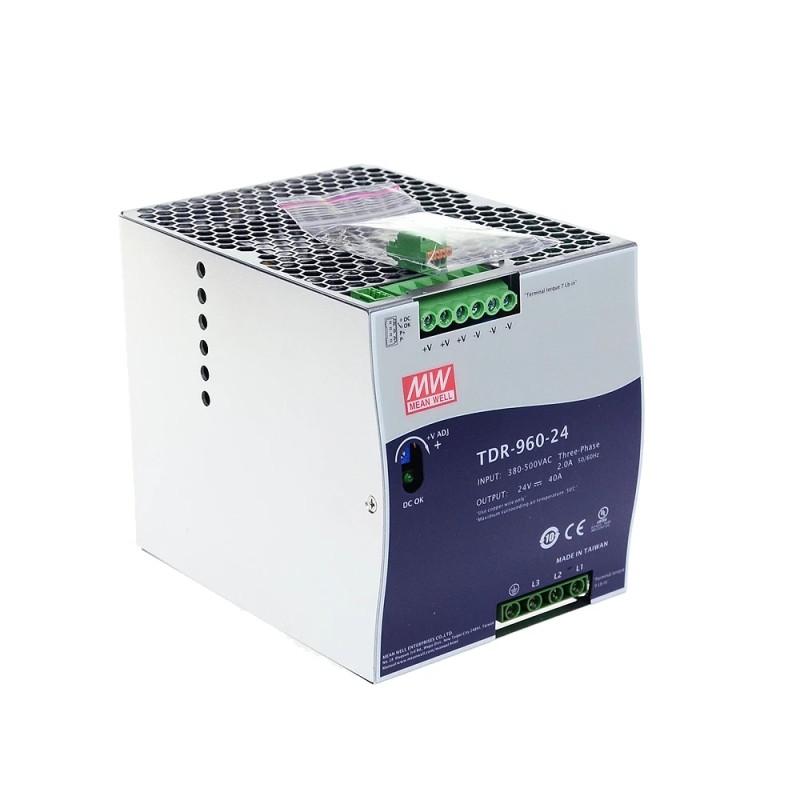

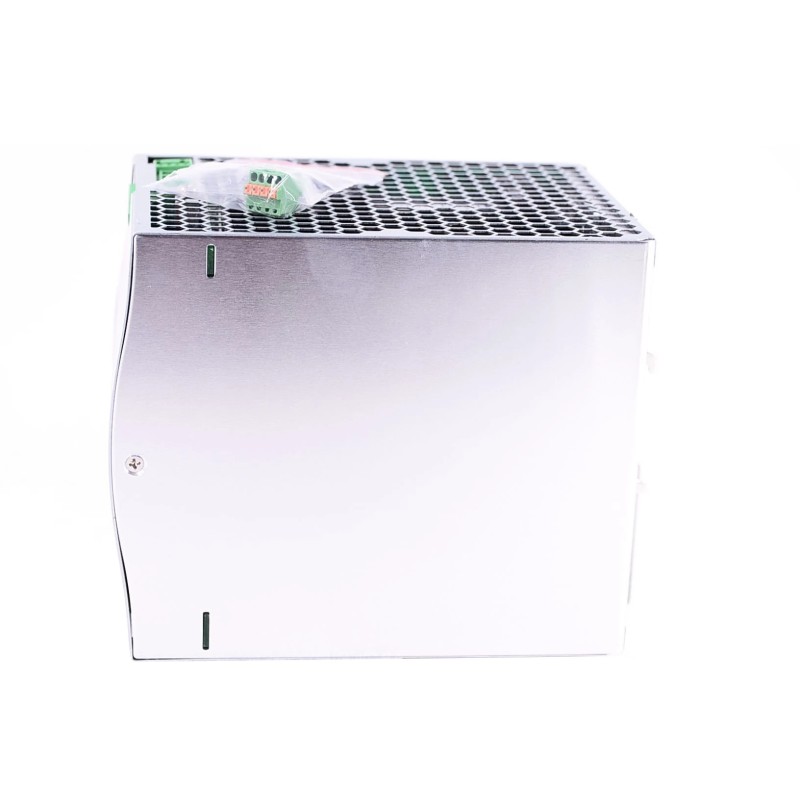

TDR-960-24 MEANWELL 960W 24VDC 40A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function
0 reviews - Write a review
C$489.44
5 + C$475.15
10 + C$461.67
50 + C$448.94
100 + C$436.88
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: TDR-960-24
  • Gross Weight: 2.47kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 40A output
  • AC input voltage range: Three-phase 340 ~ 550VAC
  • Rated power: 960W
  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit

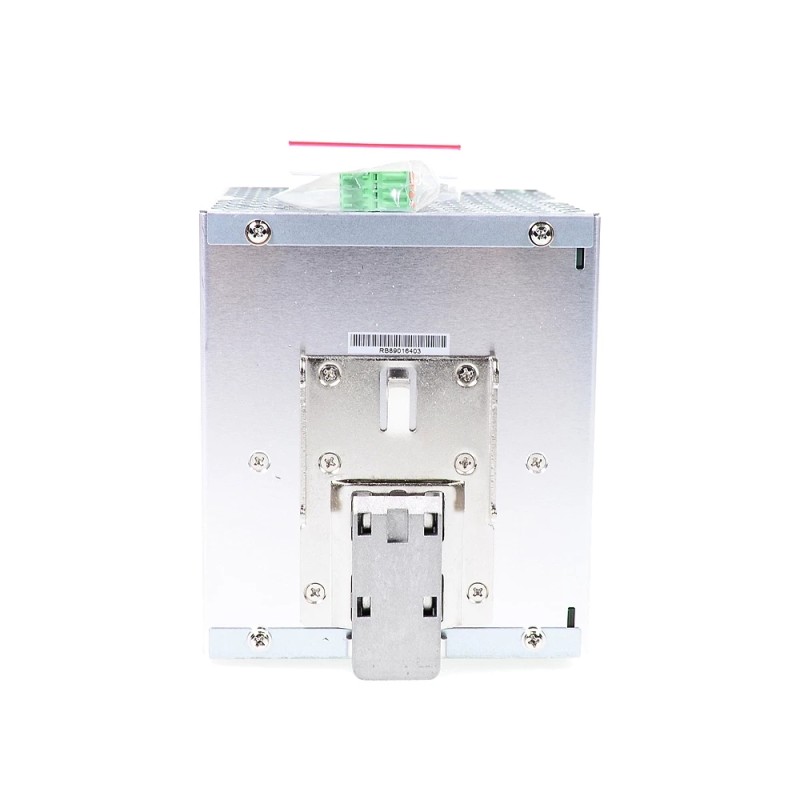

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Buil-in DC OK relay contact
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Electrical Specification
Efficiency(%) 94%
Max. Output Current(A) 40
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 110 x 125.2 x 150
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 340 - 550 / 480 - 780
Output Voltage(VDC) 24
PFC Function Yes
Power Type DIN Rail Power Supply
Power(W) 960
Physical Specification
Inventory Method Shared Inventory
File Size
TDR-960.pdf 254.27KB Download
