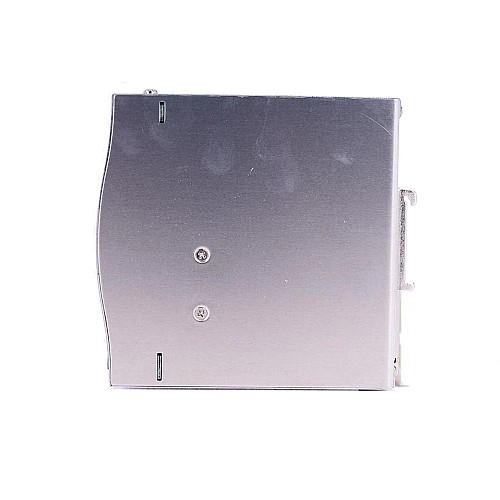

TDR-480-24 MEANWELL 480W 24VDC 20A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function

TDR-480-24 MEANWELL 480W 24VDC 20A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function - TDR-480-24 | StepperOnline CA
TDR-480-24 MEANWELL 480W 24VDC 20A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function - TDR-480-24 | StepperOnline CA
TDR-480-24 MEANWELL 480W 24VDC 20A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function - TDR-480-24 | StepperOnline CA
TDR-480-24 MEANWELL 480W 24VDC 20A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function - TDR-480-24 | StepperOnline CA
TDR-480-24 MEANWELL 480W 24VDC 20A 400/500VAC Slim Three Phase Industrial DIN Rail With PFC Function
0 reviews - Write a review
C$180.78
5 + C$175.51
10 + C$170.53
50 + C$165.82
100 + C$161.36
  • In Stock: 10000
  • Brand: MEANWELL
  • Model: TDR-480-24
  • Gross Weight: 1.51kg
  • Certificated: ISO, CE, RoHS
Sold: 1

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

  • Brand MEANWELL
  • 24V DC 20A output
  • AC input voltage range: Three-phase 340 ~ 550VAC
  • Rated power: 480W
  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Buil-in DC OK relay contact
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Electrical Specification
Efficiency(%) 92.5%
Max. Output Current(A) 20
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 85.5 x 125.2 x 128.5
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 340 - 550 / 480 - 780
Output Voltage(VDC) 24
PFC Function Yes
Power Type DIN Rail Power Supply
Power(W) 480
Physical Specification
Inventory Method Dedicated Inventory
File Size
TDR-480.pdf 421.53KB Download
