TES Series 4 Axis CNC Router Kit 3.0Nm(424.83oz.in) Nema 23 Stepper Motor & Driver DM542TE & Power Supply

0 reviews - Write a review

C$222.69

5 + C$216.01

10 + C$209.70

50 + C$203.74

100 + C$198.13

In Stock: 200
Model: 4-DM542TE-S30
Gross Weight: 9.80kg
Certificated: ISO, CE, UKCA

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

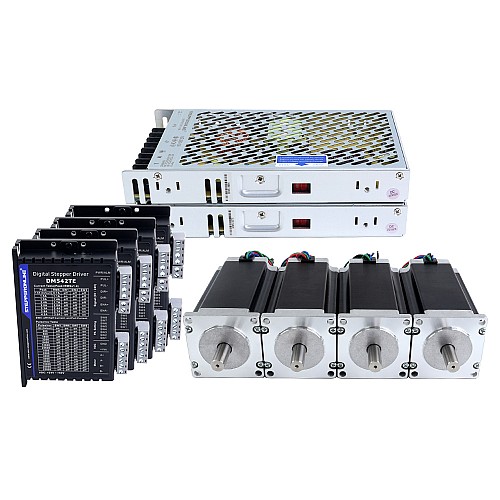

This CNC kit includs:

4 x DM542TE: TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, 23 Motor
4 x 23HS45-4204S: Nema 23 Bipolar 3Nm(424.83oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC
2 x LE-250-36: 250W 36V 6.9A 115/230V Switching Power Supply

Driver Specification

Output Peak Current: 1.0~4.2A(0.7~3.0RMS)
Input Voltage: +24~50VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Support PUL/DIR mode
Automatic idle-current reduction
Over-voltage and over-current protections
Soft-start with no "jump" when powered on
Anti-Resonance provides optimal torque and nulls mid-range instability
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
8 selectable peak current including 1.00A, 1.50A, 1.90A, 2.40A, 2.80A, 3.30A, 3.80A, 4.20A
Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Motor Specification

Manufacturer Part Number: 23HS45-4204S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.0Nm(424.83oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms
Inductance: 3.4mH±20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Insulation Class: B 130°C[266°F]

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Power Specification

Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 36V
Output Current: 6.9A
Rated Output Power: 250W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Input Voltage Reference(V)	24 - 50DC
No. of Phase	2
Number of Axes	4
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Output Shaft Type	D
Power Supply	Power Supply
Product Series	TES Series
Shaft Diameter(mm)	10

File	Size
23HS45-4204S.STEP	1.93MB	Download
DM542TE.STEP	11.44MB	Download
TE_series_user_manual.pdf	1.01MB	Download
LE-250-36.pdf	262.29KB	Download
23HS45-4204S_Full_Datasheet.pdf	218.75KB	Download
23HS45-4204S_Torque_Curve.pdf	214.04KB	Download

Tags: Output Shaft Type: D, Shaft Diameter(mm): 10, Holding Torque(Ncm): 300, Holding Torque(oz.in): 424.83, Frame Size(mm): Nema 23 (57 x 57), No. of Phase: 2, Product Type: Open Loop Stepper Kit, Product Series: TES Series, Number of Axes: 4, Has Torque/Thrust Curve?: Yes, Input Voltage Reference(V): 24 - 50DC, Power Supply: Power Supply
