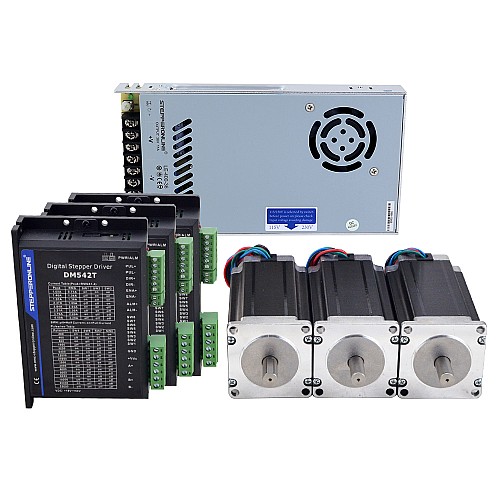

S Series 3 Axis CNC Router Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver

• 3 x DM542T: Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
• 3 x 23HS45-4204S: Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
• 1 x LE-400-36: 400W 36V 11A 115/230V Switching Power Supply

Driver Specification

• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ
• Pulse Input Frequency: 0~200kHz
• Output Peak Current: 1.0~4.5A(3.2RMS)
• Input Voltage: +18~50VDC(Typical 36VDC)
• Logic Signal Current: 7~16mA(Typical 10mA)
• Support PUL/DIR mode
• Automatic idle-current reduction
• Over-voltage and over-current protections
• Soft-start with no "jump" when powered on
• 5V/24V logic voltage selector, default setting 24V
• Anti-Resonance provides optimal torque and nulls mid-range instability
• Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
• Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
• 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.50A
• Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
• 16 selectable microstep resolutions including 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

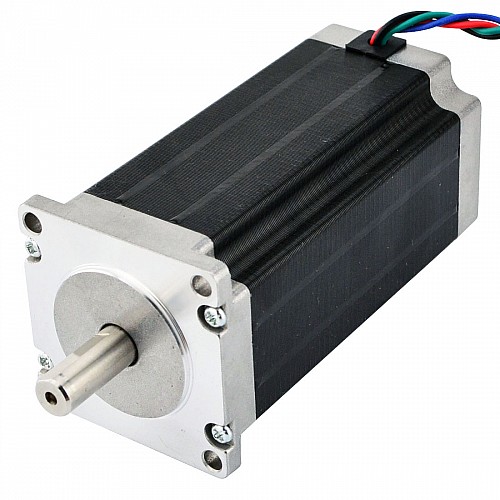

Motor Specification

• Manufacturer Part Number: 23HS45-4204S
• Motor Type: Bipolar Stepper
• Step Angle: 1.8deg
• Holding Torque: 3.0Nm(425oz.in)
• Rated Current/phase: 4.2A
• Phase Resistance: 0.9ohms
• Inductance: 3.8mH±20%(1KHz)
• Frame Size: 57 x 57mm
• Body Length: 113mm
• Shaft Diameter: Φ10mm
• Shaft Length: 24mm
• D-cut Length: 20mm
• Number of Leads: 4
• Lead Length: 400mm
• Insulation Class: B 130°C[266°F]

Connection

Power Specification

• Part Number: LE-400-36
• Input Voltage: 115/230VAC±20%
• Input Frequency: 47-63Hz
• Input Current: 40A/230VAC
• Output Voltage: 36V
• Output Current: 11.0A
• Rated Output Power: 400W
• Leakage Current: <0.5mA/230VAC
• Dimensions: 215*115*30mm(L*W*H)
• Internal EMI filter
• High efficiency low cost
• Forced air cooling by built-in DC fan
• Over current, over voltage, short circuit and overheat protections
