TG90-G3
Gear Ratio(xx:1)3
Backlash at No-load<=10 arcmin
Gearbox Length(mm)110
Question

Downloads

TG90-G3.STEPSTEP · 1.87MBLog in to downloadTG90-G3_Full_Datasheet.pdfPDF · 61.9KB
Same series
ModelGear Ratio(xx:1)Backlash at No-loadGearbox Length(mm)PriceStock
TG90-G1010<=10 arcmin110C$86.49In stock
TG90-G2020<=15 arcmin132C$123.55In stock
TG90-G33<=10 arcmin110C$86.49In stock
TG90-G3030<=15 arcmin132.5C$123.55In stock
TG90-G55<=10 arcmin110C$86.49In stock
TG90-G5050<=15 arcmin132C$123.55In stock
TG90-G77<=10 arcmin110C$86.49In stock
TG Series 90mm 3:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 3:1 and... Read More
0 reviews • Write a review
from
C$86.49
5 or more: C$82.93
10 or more: C$79.65
50 or more: C$76.60
100 or more: C$73.79

Select a country to see live inventory

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

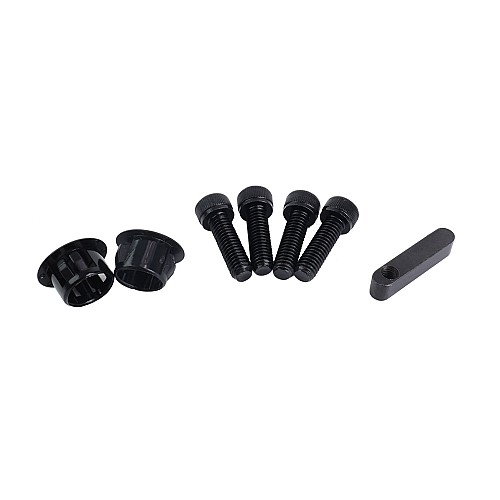

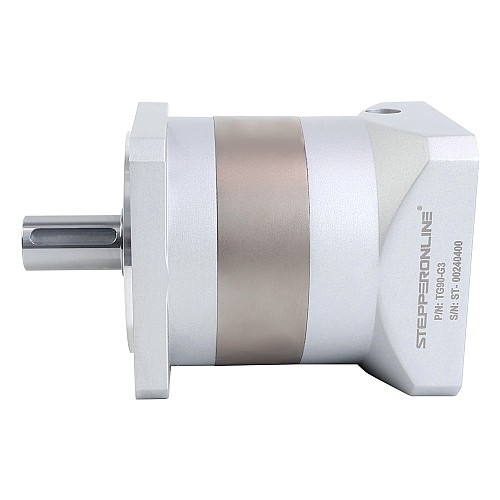

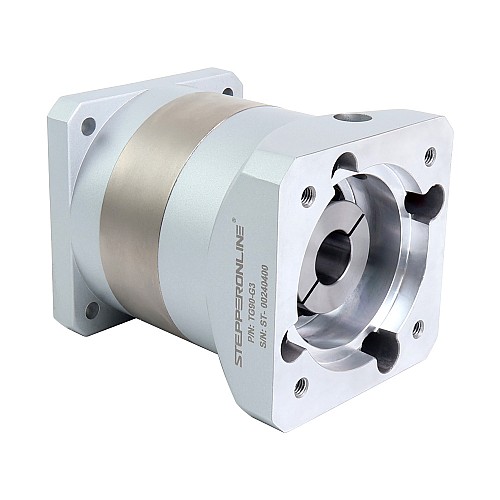

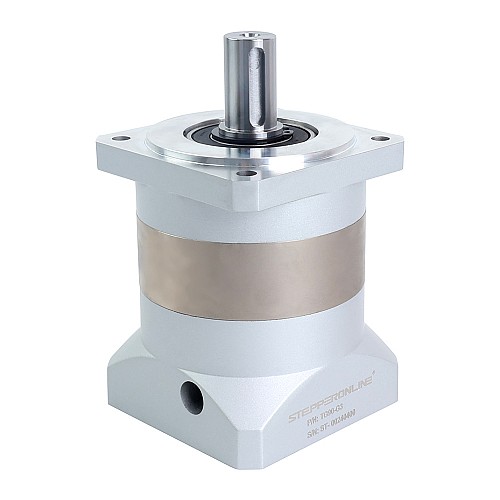

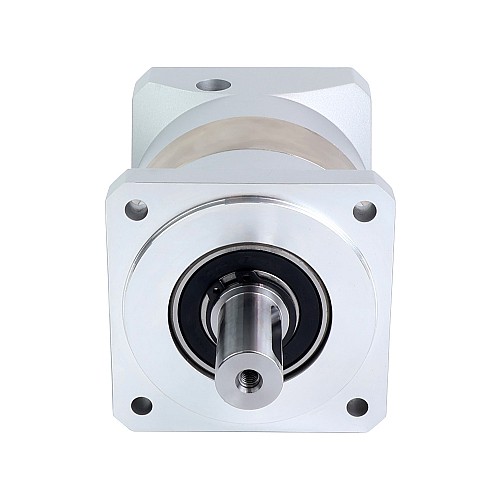

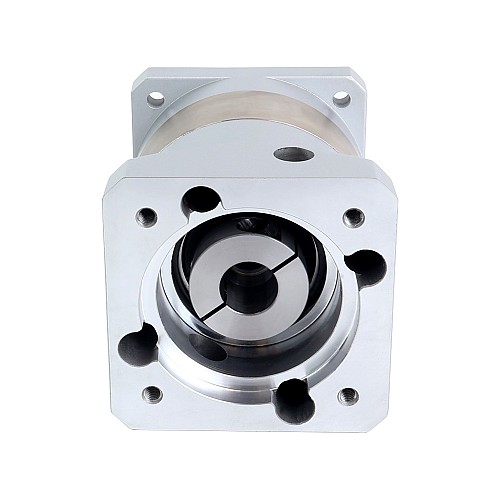

This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 3:1 and a maximum 10arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This in-line planetary gearbox can match most servo motors on the market.

Gearbox Specifications

  • Part Number: TG90-G3
  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 3:1
  • Efficiency: 96%
  • Rotor Inertia: 0.61kg.cm²
  • Backlash at No-load: <=10arc-min
  • Max.Permissible Torque: 60Nm(531.04lb-in)
  • Moment Permissible Torque: 120Nm(1062.08lb-in)
  • Noise: <=55dB
  • Waterproof Rating: IP54
  • Lifetime: 20000hours

Physical Specifications

  • Frame Size: 90 x 90mm
  • Gearbox Length: 110mm
  • Output Shaft Type: Keyway
  • Output Shaft Diameter: Φ20mm
  • Output Shaft Length: 40mm
  • Input Shaft Diameter: Φ19mm
  • Input Shaft Length: 24-41mm

Other optional reduction ratios.

4 : 1
7 : 1
16 : 1
25 : 1
28 : 1
35 : 1
40 : 1
70 : 1
Physical Specification
Backlash at No-load <=10 arcmin
Frame Size(mm) 90 x 90
Gear Material Alloy Steel
Gear Ratio(xx:1) 3
Gearbox Length(mm) 110
Gearbox Type Spur Planetary
Input Shaft Diameter(mm) 19
Input Shaft Length(mm) 24 - 41
IP Rating 54
Matching Motor Size Frame 80/90 Servo Motor
Output Shaft Diameter(mm) 20
Output Shaft Length(mm) 40
Output Shaft Type Keyway
Product Series TG
