T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 23-Bit Encoder IP67
C$381.46
5 + C$368.42
10 + C$356.24
50 + C$344.83
100 + C$334.14
  • In Stock: 10000
  • Model: T6-RS400H2B1-M23
  • Gross Weight: 3.32kg
  • Certificated: ISO, CE
Sold: 35

Click country for real-time stock

Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

T6 Series 400W 3000rpm 1.27Nm with brake 23-bit AC servo products are cost-effective AC digital servo which is designed for position high accurate control, which can provide a perfect solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 23bit, it can provide machines a intelligent performance.
The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption.
A built-in high performance brake makes the servo motor able to maitain shaft position, preventing unwanted movement or drift during power loss. It can be widely use in occasions with reliability and safety requirements or vertical applications.

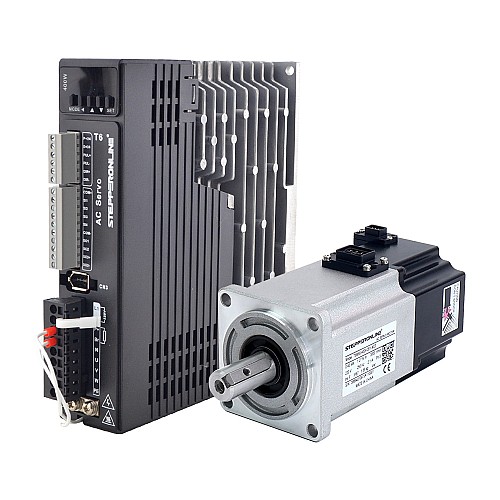

Items in kit

  • 1 x T6-400RS: 400W AC Servo Motor Driver
  • 1 x T6M60-400H2B1-M23: 400W AC Servo Motor 3000rpm 1.27Nm w/ Brake 23-Bit Encoder IP67
  • 1 x CMBST1M5-2: 1.5m Motor Extension Cable with IP67 Connector with Brake Cable
  • 1 x CEST1M5-2: 1.5m Encoder Extension Cable with IP67 Connector
  • 1 x Servo Driver Debugging Cable
  • 1 x USB 2.0 to Serial RS232 Adapter with 1m Cable Converter (option, need purchase separately)
  • 1 x CEAST1M5-2 1.5m Encoder Cable with Battery Box for T6 Servo Motors with 23-bit Absolute Encoder(option, need purchase separately)

Servo Driver Specification

  • Part Number: T6-400RS
  • Modbus RS485 communication
  • Support pulse control
  • PR function, 16 paths
  • Encoder signals A/B/Z differential output and Z OC output
  • 4 inputs and 3 outputs
  • Rated voltage 220VAC 1ph
  • Rated power 400W
  • Available 17-bit/23-bit encoder
  • Automatic motor identification
  • Dimension: 175*168*40mm
  • Control Mode: Position Mode, Velocity Mode, Torque Mode, Pr Mode

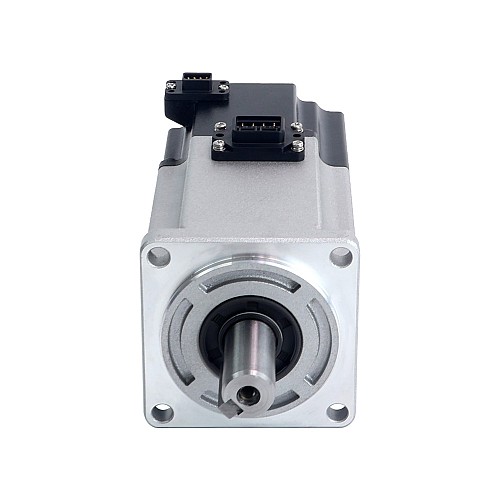

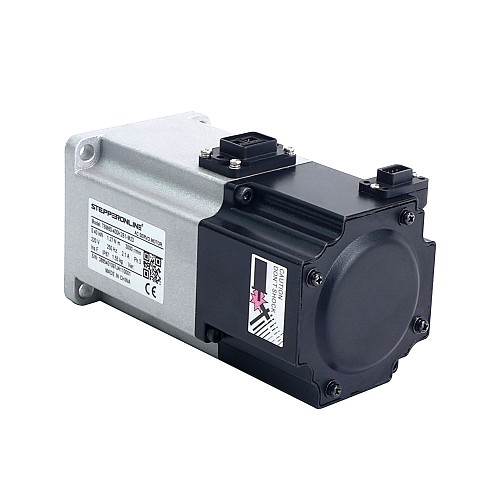

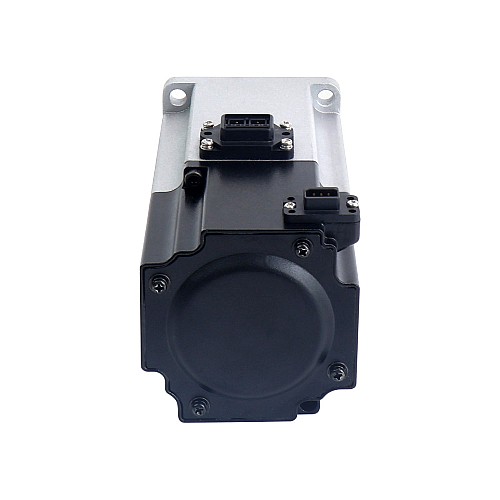

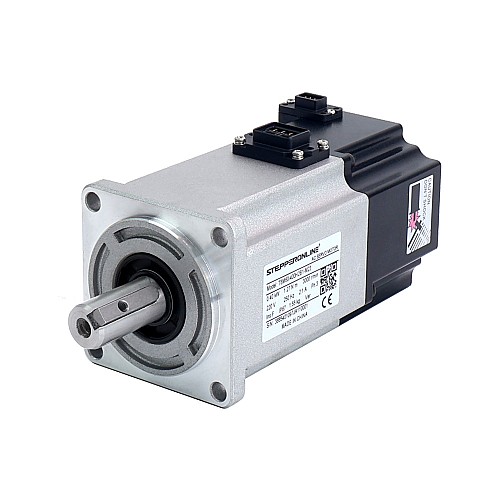

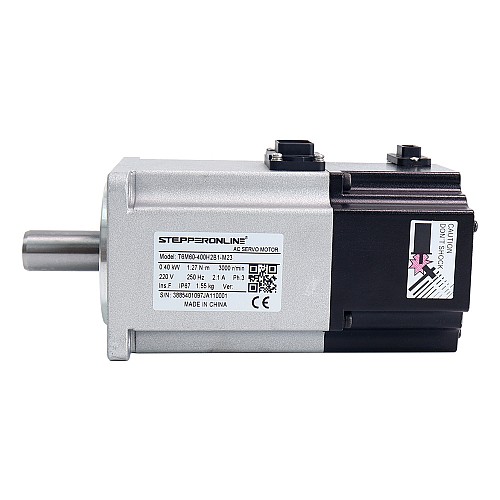

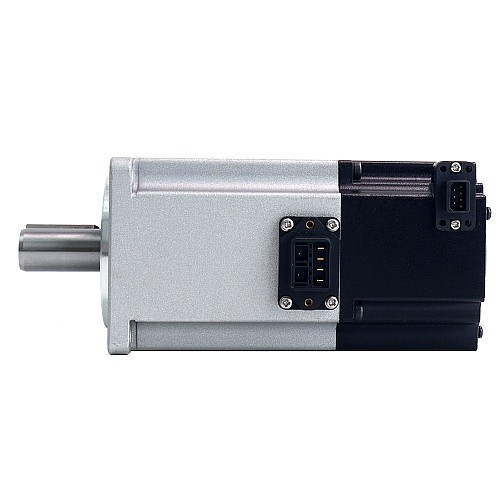

Servo Motor Specification

  • Part Number: T6M60-400H2B1-M23
  • Rated Voltage: 220VAC
  • Rated Power: 400W
  • Rated Torque: 1.27Nm
  • Peak Torque: 3.81Nm
  • Rated Speed: 3000rpm
  • Peak Speed: 5000rpm
  • Rated Current: 2.1A
  • Peak Current: 6.5A
  • Torque Const: 0.645N.m/A
  • Back EMF Const: 39V/krpm
  • Resistance: 5.7ohm
  • Inductance: 12mH
  • Inertia: 0.58kg*m2*10-4
  • Poles: 10
  • Encoder: 23bit absolute, magnetic encoder
  • IP Rating: IP67
  • Cable Length: 1.5m (optional lengths are 3m, 5m, 10m)
  • Shaft diameter: 14mm
  • Brake Voltage: 24V
  • Brake Power: 8.3W
  • Brake Torque: ≥1.5Nm
  • Mass Weight: 1.55Kg
When using, please pay attention to connecting the brake line.
The extension cable is also available in lengths of 3m, 5m and 10m in the warehouse in China. You can replace it by paying the price difference. If necessary, please leave a message with the length you expect. No cable exchange service in warehouses in Germany.
To learn more about the difference between 17-bit and 23-bit T6 servo motors, please refer to this article.
Note: 23-bit encoder can be used as absolute or incremental. If you expect to use 23bit multi-turns encoder as an absolute encoder, please use the absolute encoder cable CEAST1M5-2 and RS485 communication for control, the absolute encoder cable CEAST1M5-2 can also be used as incremental.
If your power supply voltage is 110VAC, you need to use this transformer TR500-A220-A120 when using this servo motor.
Electrical Specification
Control Modes Pulse/RS485
Encoder Resolution 23bit
Encoder Type Magnetic Absolute, Magnetic Incremental
Input Voltage(V) 220VAC
Integrated STO or not? No
Peak Speed(rpm) 5000
Peak Torque(Nm) 3.81
Rated Power(W) 400
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
With Brake Yes
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 60 x 60
Integrated or Not No
Inventory Method Dedicated Inventory
IP Rating 67
Shaft Diameter(mm) 14
File Size
T6M60-400H2B1-M23.pdf 178.54KB Download
T6_Servo_Quick_Start.pdf 2.01MB Download
T6-400RS.stp 11.21MB Download
T6M60-400H2B1-M23.STEP 3.71MB Download
T6_Servo_Simple_Manual.pdf 538.54KB Download
T6_Servo_Full_Manual.pdf 5.04MB Download
T6_Debug_Software.zip 19.84MB Download
