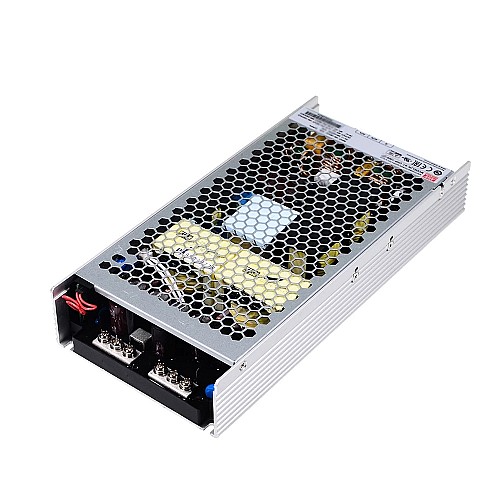

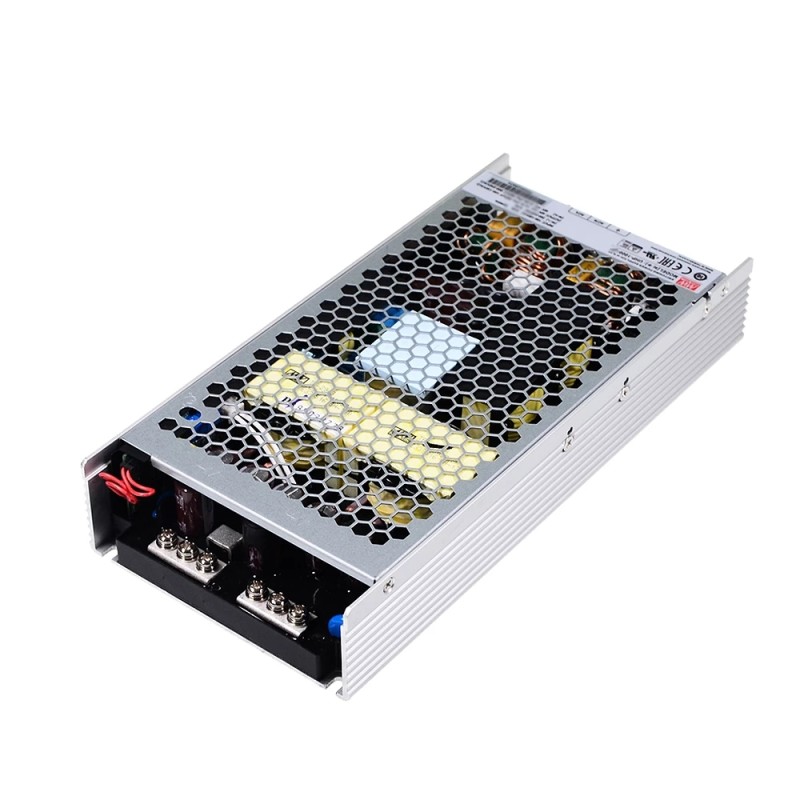

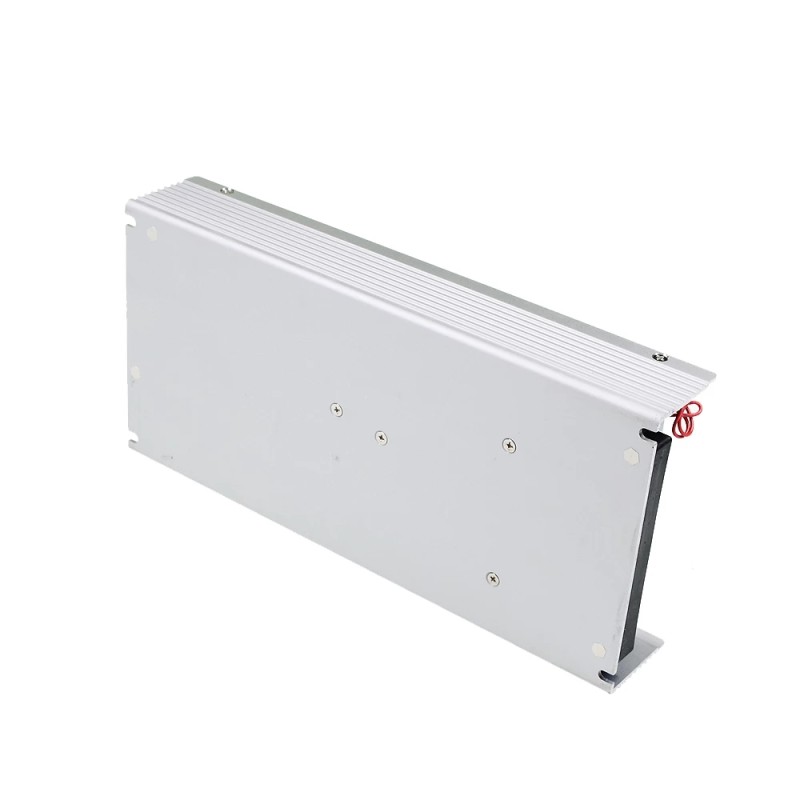

Name: UHP-1000-12 MEANWELL 960W 80A 115/230VAC Slim Type With PFC Switching Power Supply
Brand: MEANWELL
SKU: UHP-1000-12
Price: 525.31 CAD
Availability: PreOrder

UHP-1000-12 MEANWELL 960W 80A 115/230VAC Slim Type With PFC Switching Power Supply - UHP-1000-12 | StepperOnline CA

Pre-order

UHP-1000-12

Output Voltage(VDC)12

Power(W)960

Input Voltage(VAC/VDC)90 - 264 / 250 - 370

Question

Downloads

UHP-1000.pdfPDF · 737.09KB

Same series

Model	Output Voltage(VDC)	Power(W)	Input Voltage(VAC/VDC)		Price	Stock
ERP-200-12	12	200.4	180 - 264 / 254 - 370	—	C$42.05	Backorder
ERP-200-24	24	199.92	180 - 264 / 254 - 370	—	C$42.05	Backorder
ERP-350-12	12	320.4	180 - 264 / 254 - 370	—	C$53.00	Backorder
ERP-350-24	24	350.4	180 - 264 / 254 - 370	—	C$53.00	Backorder
ERPF-400-12	12	360	90 - 264 / 127 - 370	—	C$61.06	Backorder
ERPF-400-24	24	400.8	90 - 264 / 127 - 370	—	C$61.06	Backorder
HRP-600-24	24	648	85 - 264 / 120 - 370	—	C$268.13	Backorder
HRPG-1000-24	24	1008	90 - 264 / 127 - 370	—	C$273.60	In stock
KNX-20E-640-SALE	—	—	—	—	C$87.00	In stock
LE-201-36	36	201	115 / 230	—	C$21.61	In stock
LE-250-36	36	250	115 / 230	—	C$21.61	In stock
LE-250-48	48	250	115 / 230	—	C$21.61	In stock
LE-350-36	36	350	115 / 230	—	C$25.93	In stock
LE-350-36-USED	36	350	115 / 230	—	C$17.86	In stock
LE-350-48	48	350	115 / 230	—	C$25.93	In stock
LE-350-60	60	350	115 / 230	—	C$25.93	In stock
LE-400-24	24	400	115 / 230	—	C$28.80	In stock
LE-400-36	36	400	115 / 230	—	C$28.80	In stock
LE-400-48	48	400	115 / 230	—	C$28.80	In stock
LM100-10C051212-35	5,12,-12	94	90 - 264/120 - 370	—	C$26.22	Backorder
LM100-10C051515-30	5,15,-15	95	90 - 264/120 - 370	—	C$26.22	Backorder
LM100-10C052412-20	5, 24, 12	96	90 - 264/120 - 370	—	C$26.22	Backorder
LM100-10D0524-30	5,24	97	90 - 264/120 - 370	—	C$25.07	Backorder
LM100-10D1224-20	12,24	96	90 - 264/120 - 370	—	C$25.07	Backorder
LM100-20B05	5	90	85 - 264/120 - 370	—	C$15.73	Backorder
LM100-20B12	12	102	85 - 264/120 - 370	—	C$14.14	Backorder
LM100-20B15	15	105	85 - 264/120 - 370	—	C$14.14	Backorder
LM100-20B24	24	108	85 - 264/120 - 370	—	C$13.46	Backorder
LM100-20B36	36	100.8	85 - 264/120 - 370	—	C$14.14	Backorder
LM100-20B48	48	110.4	85 - 264/120 - 370	—	C$14.14	Backorder

View all in category

UHP-1000-12 MEANWELL 960W 80A 115/230VAC Slim Type With PFC Switching Power Supply

Features Brand MEANWELL 12V DC 80A output AC input voltage range: 90 ~ 264VAC Rated power: 960... Read More

0 reviews • Write a review

from

C$525.31

5 + C$509.98

10 + C$495.51

50 + C$481.84

100 + C$468.90

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Brand MEANWELL
12V DC 80A output
AC input voltage range: 90 ~ 264VAC
Rated power: 960W
Slim and Low profile(41mm)
Fanless design and conduction-cooled design
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
5 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Test and measurement instruments
Laser related machine
Charging related equipment
Household appliances
Power Source Equipment for PoE(48V model: DC O/P range 48~57.6V)

Electrical Specification
Efficiency(%)	94%
Max. Output Current(A)	80
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	240 x 115 x 41
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 250 - 370
Output Voltage(VDC)	12
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	960
