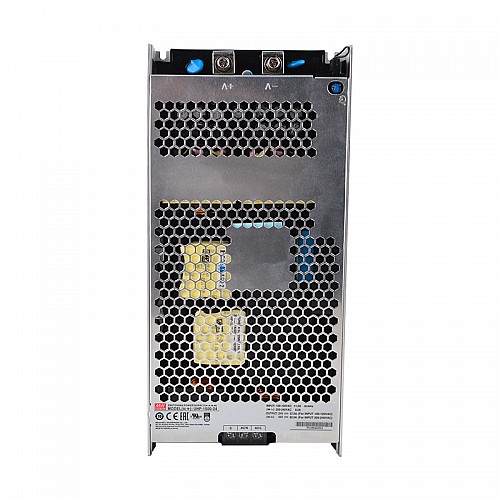

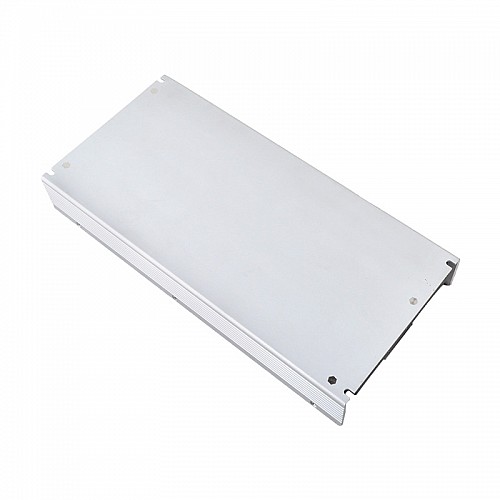

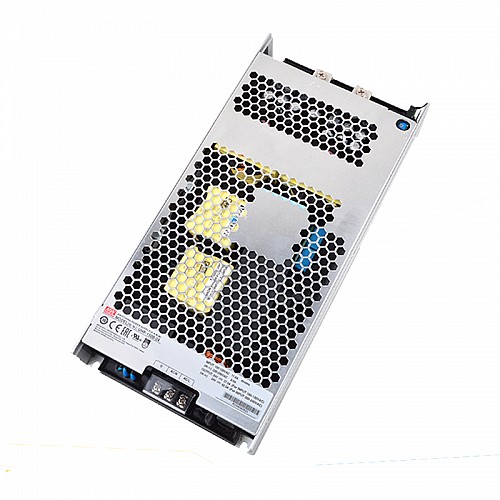

UHP-1500-24 MEANWELL 1500W 62.5A 115/230VAC Slim Type With PFC Switching Power Supply

Features

• Brand MEANWELL
• 24V DC 62.5A output
• AC input voltage range: 90 ~ 264VAC
• Rated power: 1500W
• Slim and Low profile(41mm)
• Fanless design and conduction-cooled design
• Withstand 300VAC surge input for 5 seconds
• Built-in active PFC function
• -30~+70℃ working temperature
• Output voltage and constant current level programmable
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Built-in remote ON-OFF control
• DC OK active signal
• Operating altitude up to 5000 meter(Note.8)
• LED indicator for power on
• Optional PMBus or CANBus protocol
• 5 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus
• Test and measurement instruments
• Laser related machine
• Charging related equipment
• Household appliances
• Power Source Equipment for PoE(48V model: DC O/P range 48~57.6V)
