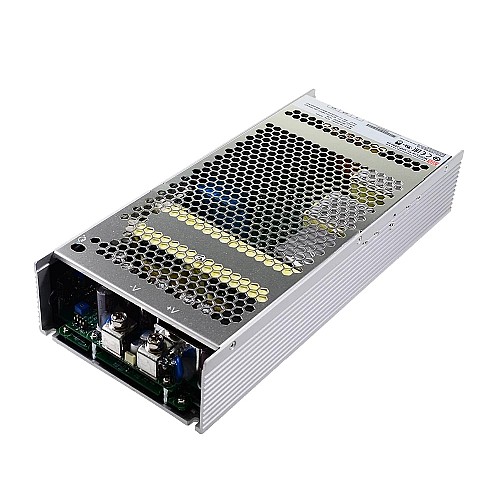

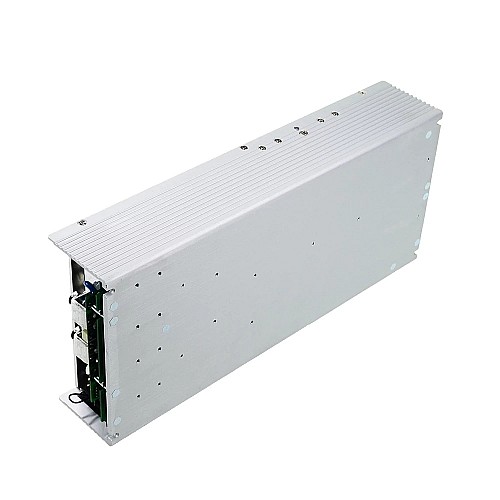

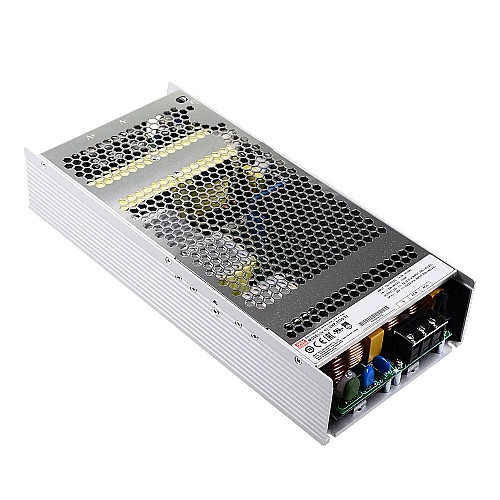

UHP-2500-24 MEANWELL 2500.8W 104.2A 115/230VAC Slim Type With PFC Switching Power Supply

Features

• Brand MEANWELL
• 24V DC 104.2A output
• AC input voltage range: 90 ~ 264VAC
• Rated power: 2500.8W
• Slim and Low profile(60mm)
• Fanless design and conduction-cooled design
• Built-in active PFC function
• -30~+70℃ working temperature
• Output voltage and constant current level programmable
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Built-in remote ON-OFF control
• DC OK active signal
• Operating altitude up to 5000 meter(Note.8)
• LED indicator for power on
• Optioanl PMBus or CANBus protocol
• 5 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus
• Test and measurement instruments
• Laser related machine
• Charging related equipment
• Household appliances
• Power Source Equipment for PoE(48V model: DC O/P range 48~57.6V)
