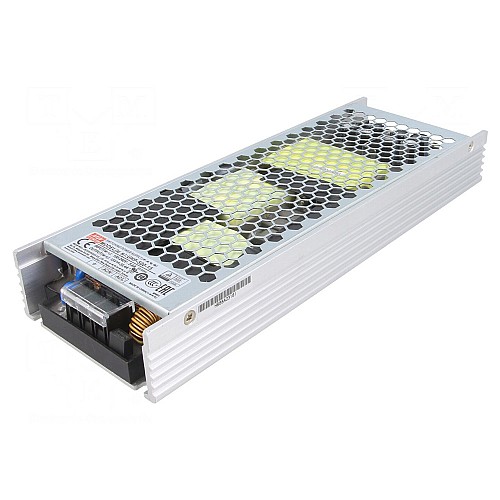

UHP-500-15 MEANWELL 501W 15VDC 33.4A 115/230VAC Slim Type With PFC Switching Power Supply

Name: UHP-500-15 | UHP-500-15 MEANWELL 501W 15VDC 33.4A 115/230VAC Slim Type With PFC Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: UHP-500-15
Price: 144.92 CAD
Availability: PreOrder

0 reviews - Write a review

C$144.92

5 + C$140.69

10 + C$136.69

50 + C$132.93

100 + C$129.37

In Stock: Pre-order
Brand: MEANWELL
Model: UHP-500-15
Gross Weight: 0.91kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
15V DC 33.4A output
AC input voltage range: 90 ~ 264VAC
Rated power: 501W
Slim and Low profile(31mm)
Fanless design, 500W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)

Electrical Specification
Efficiency(%)	94%
Max. Output Current(A)	33.4
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	232 x 81 x 31
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	15
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	501
Physical Specification
Inventory Method	Shared Inventory
