Name: UHP-500-48 | UHP-500-48 MEANWELL 501.6W 48VDC 10.45A 115/230VAC Slim Type With PFC Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: UHP-500-48
Availability: InStock

✅ From Jan 15, 2026 Import duties & taxes are prepaid by StepperOnline. No extra payment at delivery.

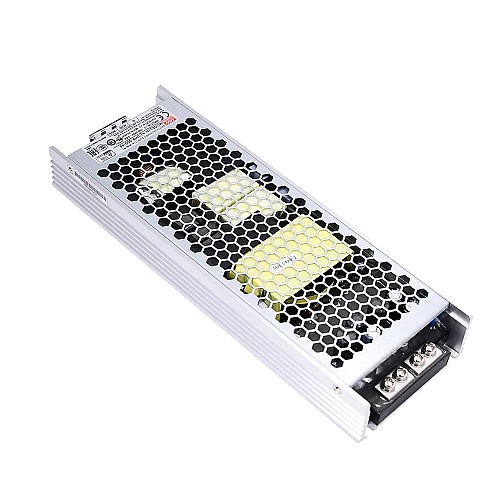

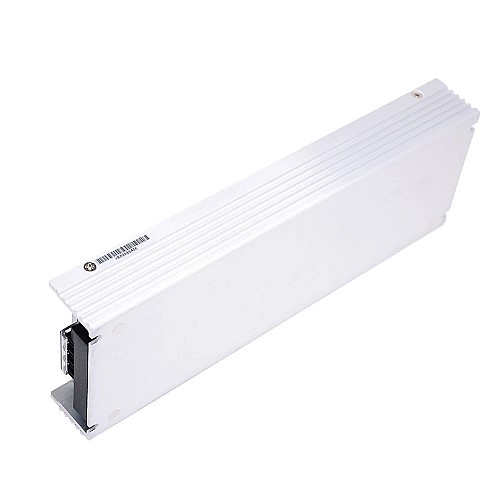

UHP-500-48 MEANWELL 501.6W 48VDC 10.45A 115/230VAC Slim Type With PFC Switching Power Supply

0 reviews - Write a review

C$0.00

In Stock: 1
Brand: MEANWELL
Model: UHP-500-48
Gross Weight: 1.20kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
48V DC 10.45A output
AC input voltage range: 90 ~ 264VAC
Rated power: 501.6W
Slim and Low profile(31mm)
Fanless design, 500W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)

Electrical Specification
Efficiency(%)	95%
Max. Output Current(A)	10.45
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	232 x 81 x 31
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	48
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	501.6
Physical Specification
Inventory Method	Dedicated Inventory
