Used - Stock in Australia - A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm w/ Brake 17-Bit Absolute Encoder IP67

A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67 - A6-EC400H2B1-M17 | StepperOnline CA
A6-EC400H2B1-M17-USED
Encoder Resolution17bit
Encoder TypeMagnetic Absolute
Peak Torque(Nm)4.45
IP Rating67
Question

Downloads

A6M60-400H2B1-M17_Full_Datasheet.pdfPDF · 165.48KBA6-400EC.stpSTP · 14.26MBLog in to downloadAS7-C-PWB075-3.0.pdfPDF · 110.26KBAS7-C-ENC076-3.0_Full_Datasheet.pdfPDF · 108.54KBSTEPPERONLINE_A6_Servo_V0.02.xmlXML · 315.49KBA6M60-400H2B1-M17.STEPSTEP · 8.42MBLog in to downloadA6-EC_series_servo_drive_manual.pdfPDF · 16.88MB
Same series
ModelEncoder ResolutionEncoder TypePeak Torque(Nm)IP RatingPriceStock
A6-EC400H2A1-M1717bitMagnetic Absolute4.4567C$162.47In stock
A6-EC400H2A1-M17-STO17bitMagnetic Absolute4.4567C$187.92In stock
A6-EC400H2B1-M1717bitMagnetic Absolute4.4567C$198.87In stock
A6-EC400H2B1-M17-STO17bitMagnetic Absolute4.4567C$228.97In stock
A6-EC400H2B1-M17-USED17bitMagnetic Absolute4.4567C$214.82In stock
A6-PN400H2A1-M1717bitMagnetic Absolute4.4567C$274.35In stock
A6-PN400H2A1-M17-STO17bitMagnetic Absolute4.4567C$289.22In stock
A6-PN400H2B1-M1717bitMagnetic Absolute4.4567C$318.20In stock
A6-PN400H2B1-M17-STO17bitMagnetic Absolute4.4567C$334.62In stock
A6-RS400H2A1-M1717bitMagnetic Absolute4.4567C$142.72In stock
A6-RS400H2A1-M17-USED17bitMagnetic Absolute4.4567C$133.97In stock
A6-RS400H2B1-M1717bitMagnetic Absolute4.4567C$176.26In stock
T6-RS400H2A1-M2323bitMagnetic Absolute, Magnetic Incremental3.8167C$298.98Backorder
T6-RS400H2A3-M17S17bitMagnetic Incremental3.8165C$279.21In stock
T6-RS400H2B1-M2323bitMagnetic Absolute, Magnetic Incremental3.8167C$373.72Backorder
T6-RS400H2B3-M17S17bitMagnetic Incremental3.8165C$349.02Backorder
Used - Stock in Australia - A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-... Read More
0 reviews • Write a review
from Save -5%
C$214.82
C$226.13

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-in 17-bit multiturn absolute encoder and a 24V 7.3W brake,  and a single-phase 220V 400W servo driver that supports EtherCAT communication. The motor provides excellent servo control performance.

This series of servo products is easy to operate, economical and efficient. It has the characteristics of high response, high precision, high speed, high synchronization, etc., supporting one-button self-tuning and automatic inertia detectionetc.
The A6-EC series servo products feature in high cost-efficiency and are compatible with popular PLCs from brands such as Beckhoff and Omron, providing efficient and convenient motion control solutions for various industries.

Items in Kit

  • 1 x A6-400EC: 400W EtherCAT AC Servo Motor Driver

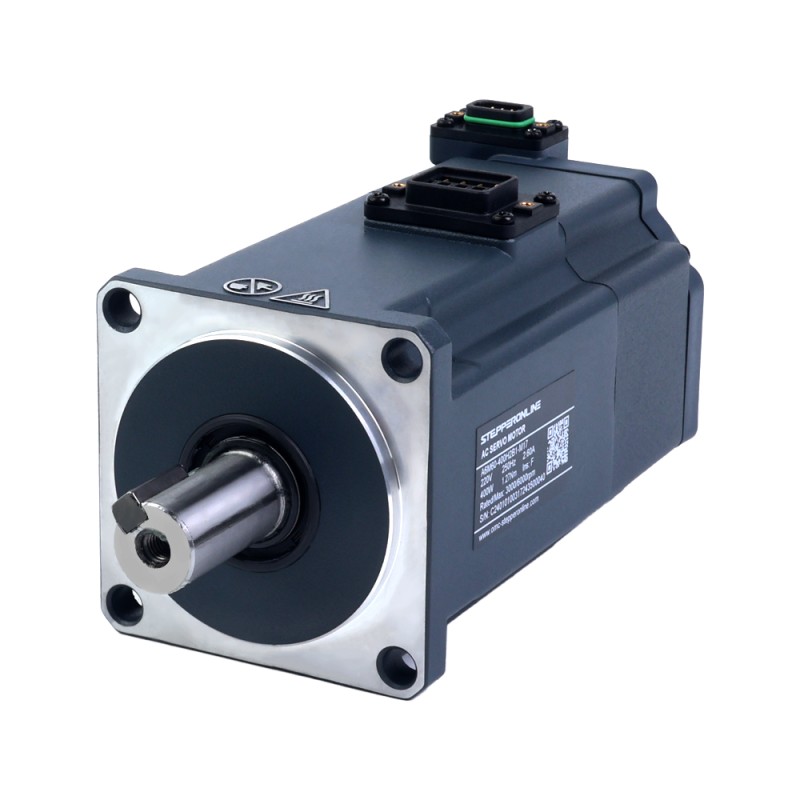

  • 1 x A6M60-400H2B1-M17: 400W AC Servo Motor 3000rpm 1.27Nm with Brake 17-Bit Encoder IP67
  • 1 x AS7-C-PWB075-3.0: 3.0m Motor Cable
  • 1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

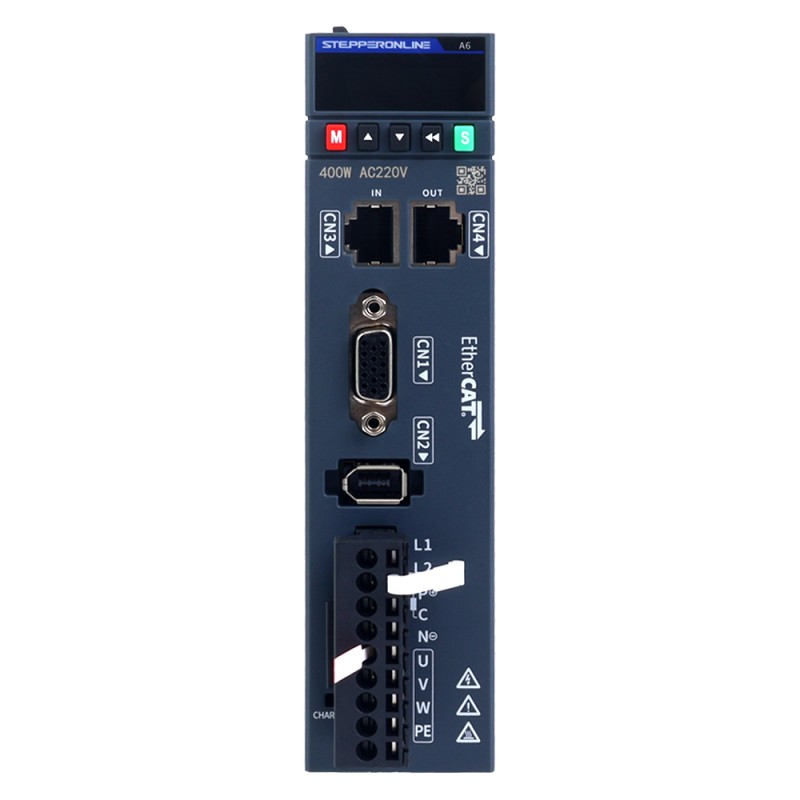

Servo Driver Specification

  • Part Number: A6-400EC
  • EtherCAT communication
  • 2KHz speed loop bandwith
  • 17-bit absolute encoder
  • 250μs synchronization period
  • 300 nodes at 120m distance, 15 ns synchronization error, ±20 ns synchronization jitter
  • Rated voltage Single-phase 220VAC
  • Rated power 400W
  • Automatic motor identification
  • Dimension: 170*150*40mm
  • Built-in dynamic brake function

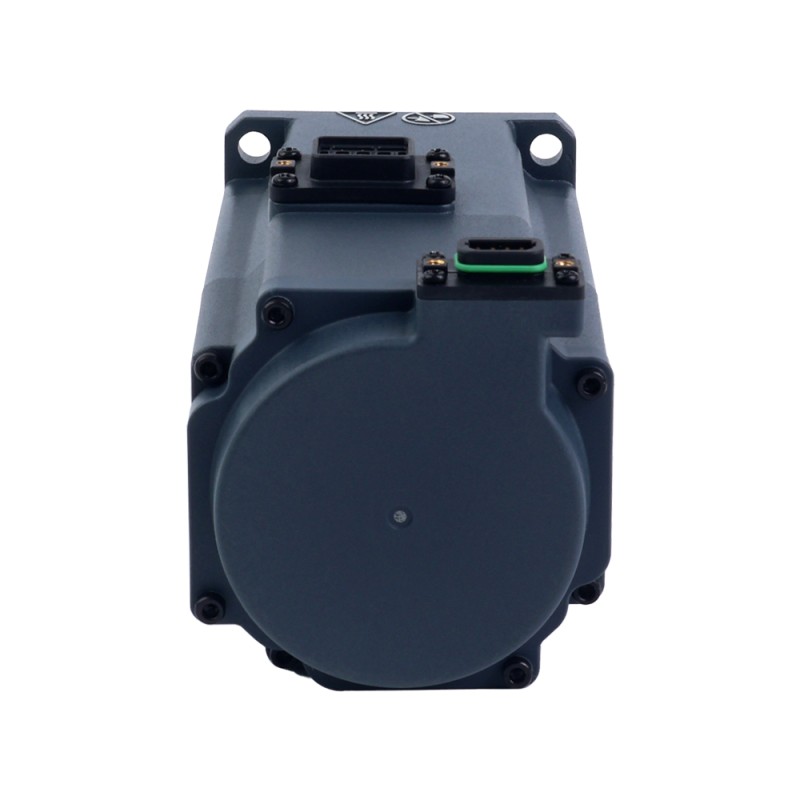

Servo Motor Specification

  • Part Number: A6M60-400H2B1-M17
  • Rated Voltage: 220VAC
  • Rated Power: 400W
  • Rated Torque: 1.27Nm
  • Peak Torque: 4.45Nm
  • Rated Speed: 3000rpm
  • Peak Speed: 6000rpm
  • Rated Current: 2.51A
  • Peak Current: 8.78A
  • Torque Const: 0.51N.m/A
  • Back EMF Const: 33.29V/krpm
  • Resistance: 1.83ohms
  • Inductance: 5.60mH
  • Inertia: 0.60kg*m2*10-4
  • Poles: 10
  • Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
  • IP Rating: IP67
  • Shaft diameter: 14mm
  • Brake Voltage: 24V DC
  • Brake Power: 7.3W
  • Brake Holding Torque: 1.27Nm
  • Axial Load: Max.74N
  • Radial Load @ Shaft Length 25mm: Max.245N
Electrical Specification
Control Modes EtherCAT
Encoder Resolution 17bit
Encoder Type Magnetic Absolute
Input Voltage(V) 220VAC
Integrated STO or not? No
Peak Speed(rpm) 6000
Peak Torque(Nm) 4.45
Rated Power(W) 400
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
With Brake Yes
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 60 x 60
Integrated or Not No
IP Rating 67
Shaft Diameter(mm) 14

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

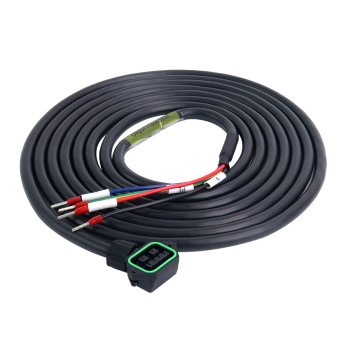

3m(118.11") 4-PIN Motor Extension Cable with Connector for T6 Series 23-bit Servo Motor
3m(118.11") 4-PIN Motor Extension Cable with Connector for T6 Series 23-bit Servo Motor
3m 4-PIN Motor Extension Cable with Connector for T6 Series 23-bit AC Servo Motor. 3-meter(118.11-inch) cable with 4 pins Available for T6 serie..
from
C$12.35
Add to Cart
Add to Wish List Compare this Product
Quickview

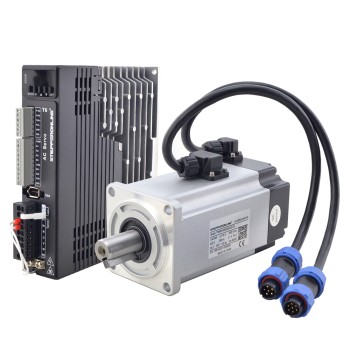

T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Encoder IP65
Pre-order
T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Encoder IP65
T6 Series 400W 3000rpm 1.27Nm with brake 17-bit AC servo products are cost-effective AC digital servo which is designed for position high ac..
from
C$349.02
Add to Cart
Add to Wish List Compare this Product
Quickview
TG Series 60mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 60mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 10:1 and a maximum 10arc-min backlash. It's an excellent ..
from
C$49.43
Add to Cart
Add to Wish List Compare this Product
Quickview
RTG Series 60mm 10:1 Right Angle Planetary Gearbox Backlash 10arc-min for Servo Motors
RTG Series 60mm 10:1 Right Angle Planetary Gearbox Backlash 10arc-min for Servo Motors
The size of this gearbox is 60 x 60mm and the input shaft diameter is 14mm. This right angle gearbox is designed for servo motor and the high speed ..
from
C$144.16
Add to Cart
Add to Wish List Compare this Product
Quickview

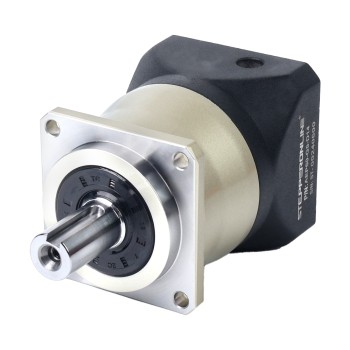

AEP Series 60mm 5:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
AEP Series 60mm 5:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
The size of this gearbox is 60 x 60mm and the input shaft diameter is 14mm. This AEP series helical planetary gearbox offers a gear ratio of 5:1 with ..
from
C$99.67
Add to Cart
Add to Wish List Compare this Product
Quickview

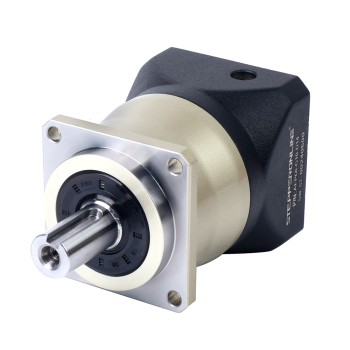

AEP Series 60mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
AEP Series 60mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
The size of this gearbox is 60 x 60mm and the input shaft diameter is 14mm. This AEP series helical planetary gearbox offers a gear ratio of 10:1 with..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

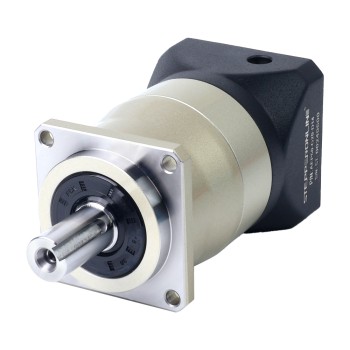

AEP Series 60mm 20:1 Helical Planetary Gearbox Backlash 7arcmin for Servo Motors IP65
AEP Series 60mm 20:1 Helical Planetary Gearbox Backlash 7arcmin for Servo Motors IP65
This helical planetary gearbox offers a gear ratio of 20:1 with a backlash of 7arcmin. It is designed for servo motors with a size of 60mm and a shaft..
from
C$173.04
Add to Cart
Add to Wish List Compare this Product
Quickview

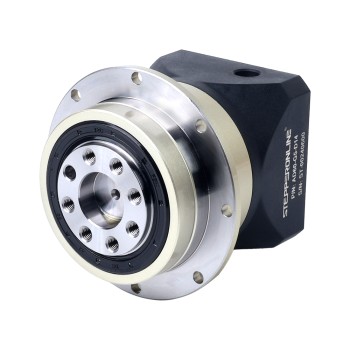

AD Series 60mm 5:1 Helical Planetary Gearbox Backlash 3arcmin for Servo Motors IP65
