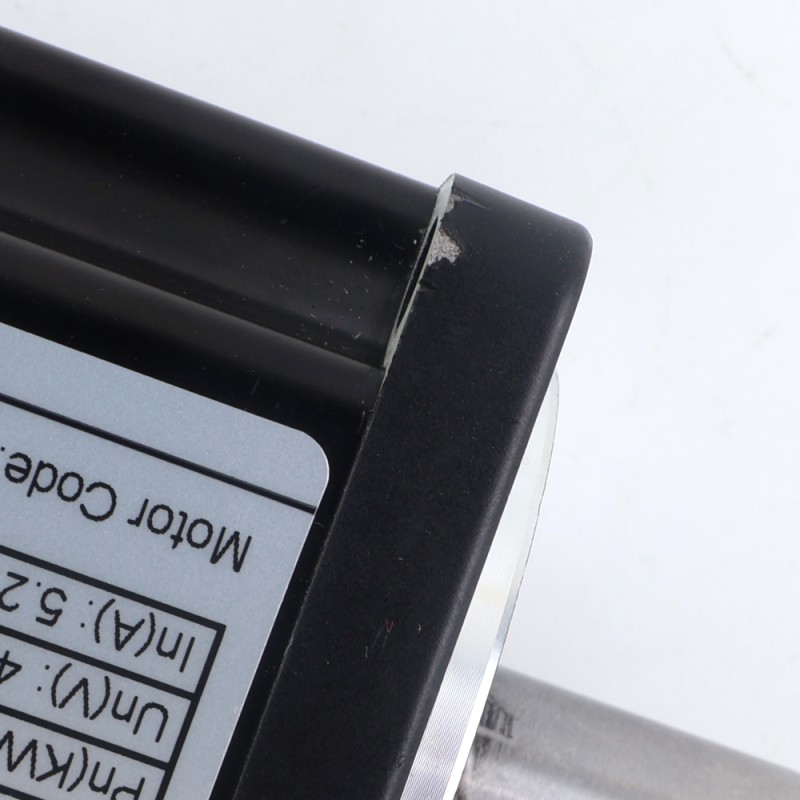

Used - Stock in China - DSY Series 200W RS485 DC Servo Motor 24-70VDC 3000rpm 17-Bit Incremental Encoder IP65

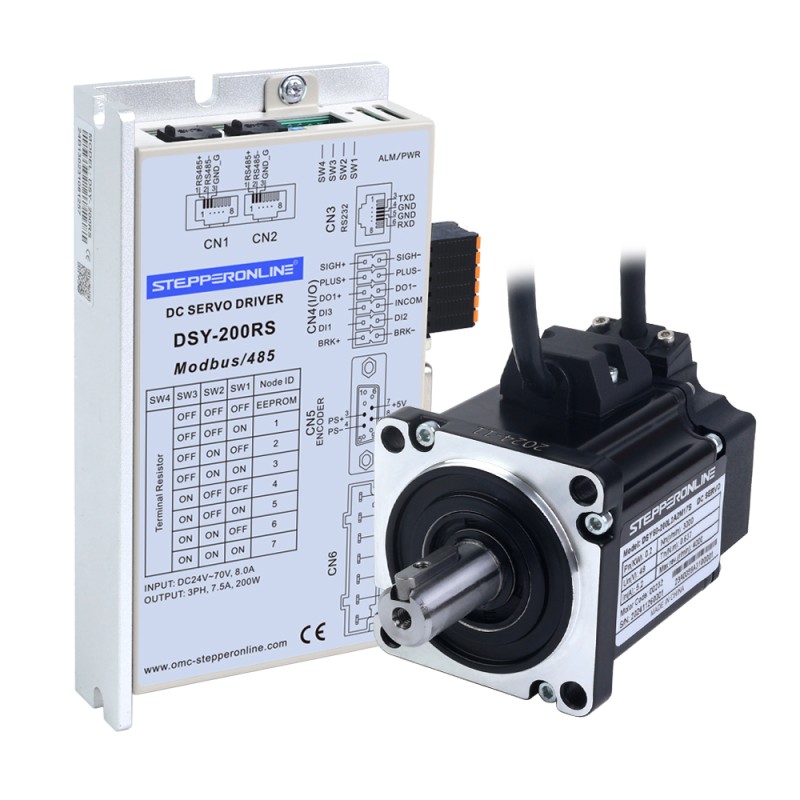

This is the latest DSY series DC servo system, consisting of a 48VDC 200W servo motor and a 24-70VDC 200W servo driver. The servo motor has a rated torque of 0.637Nm, a peak torque of 1.91Nm, and a rated speed of 3000rpm.
It comes standard with a 17-bit single-turn magnetic incremental encoder and adopts a high power density design, allowing it to deliver strong power in a compact size, achieving 3 times the instantaneous overload. The new magnetic circuit design reduces torque ripple, minimizing vibration during operation and providing smoother torque output.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

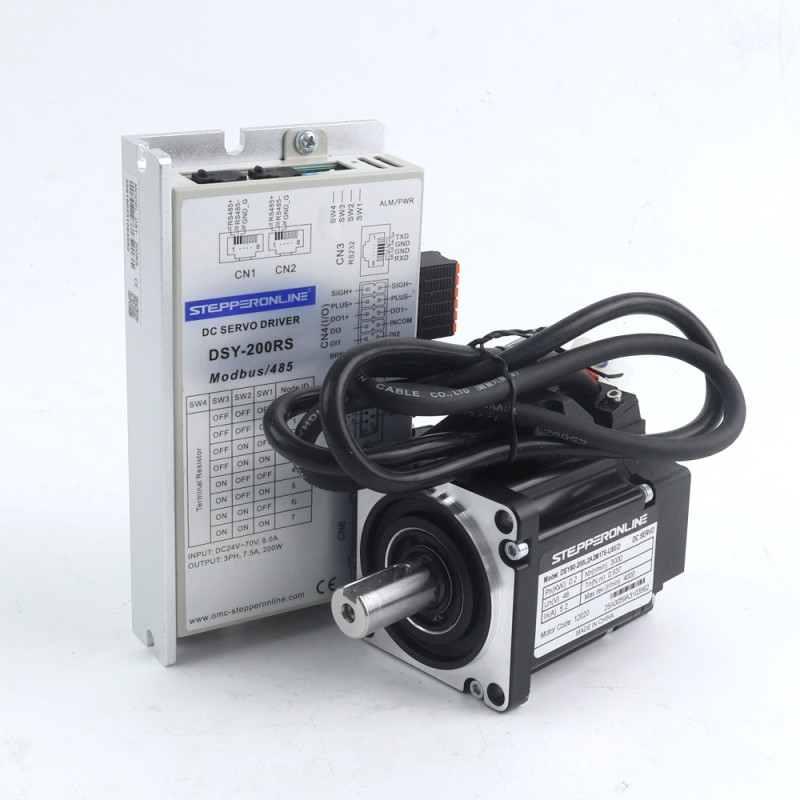

Items in Kit

• 1 x DSY-200RS: 200W Pulse/RS485 DC Servo Motor Driver

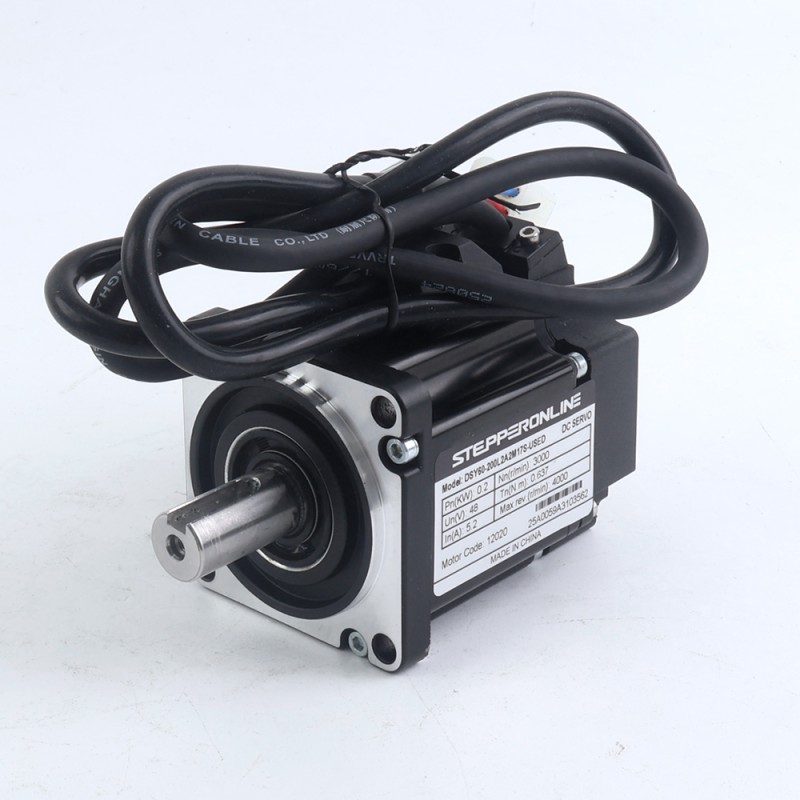

• 1 x DSY60-200L2A2M17S: 200W 48V DC Servo Motor 3000rpm 0.637Nm 17-Bit Encoder IP65

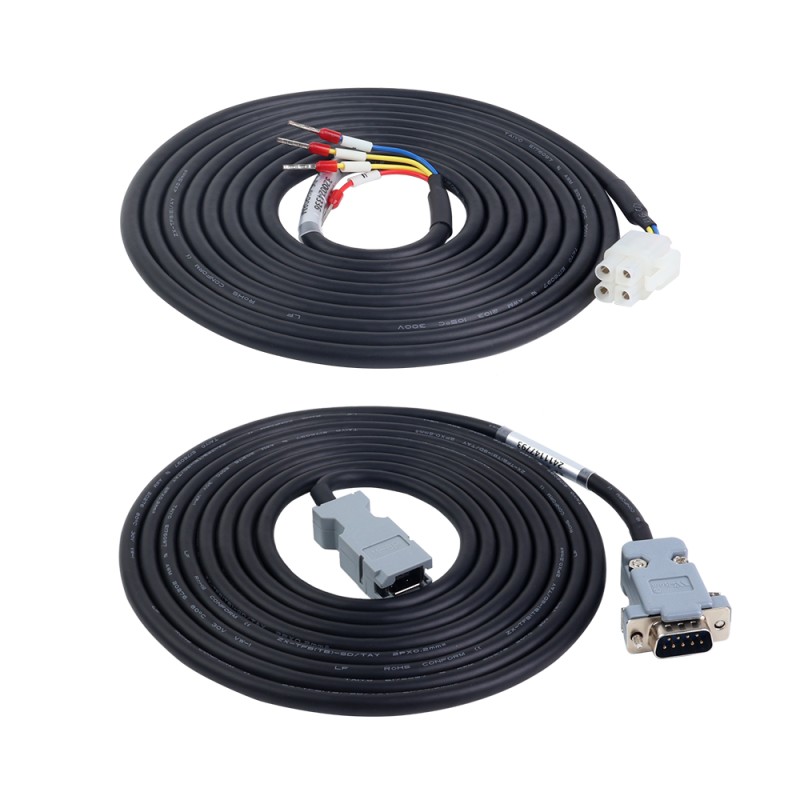

• 1 x P1-DS-03P08M: 3.0m Motor Cable
• 1 x E2-DS-03AM: 3.0m Encoder Cable
• 1 x RS232-5: 1.0m Debugging Cable

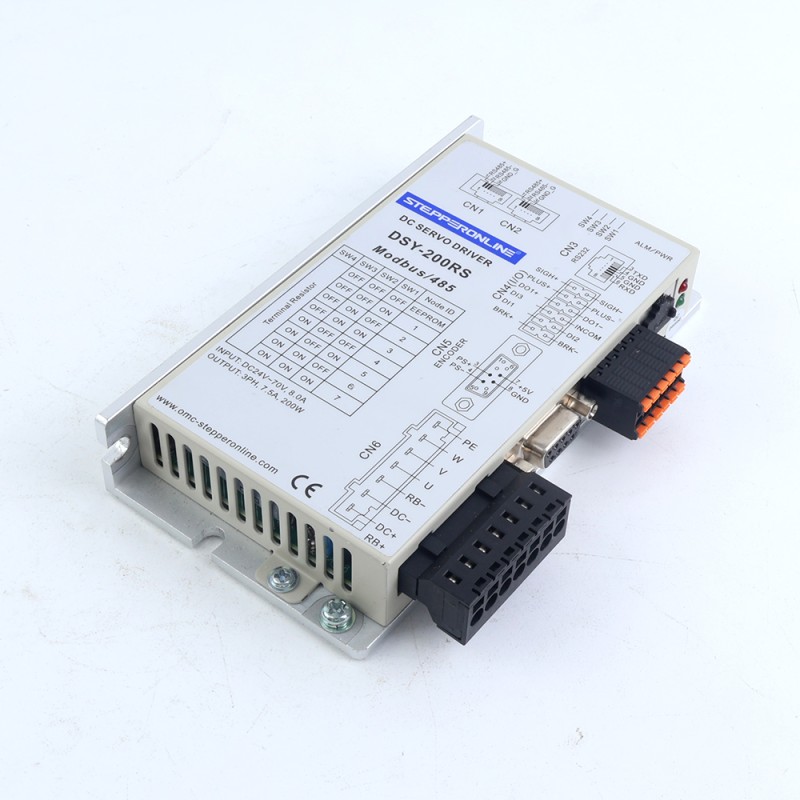

Servo Driver Specification

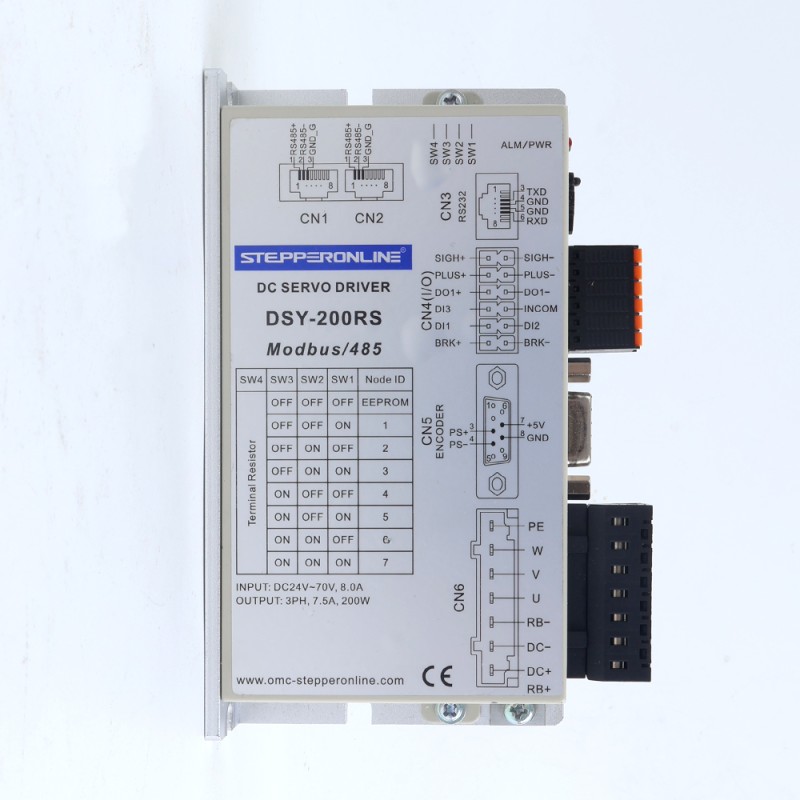

• Part Number: DSY-200RS
• Continuous Output Current: 7.5A
• Maximum Output Current: 24.0A
• Power Supply Input: 24-70VDC
• Rated power 200W
• Dimension: 141*75.5*25.4mm

Servo Motor Specification

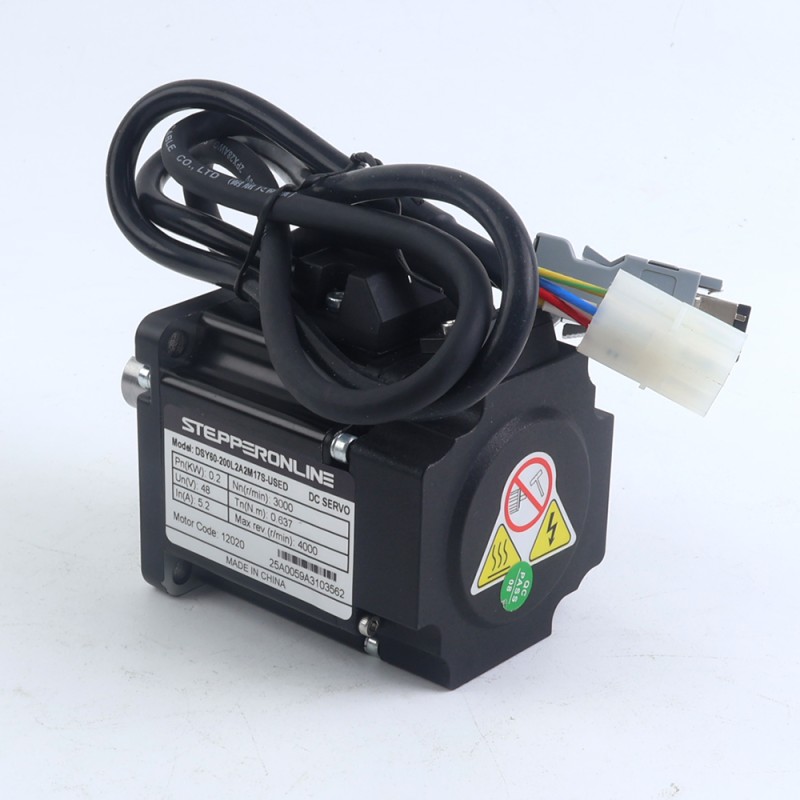

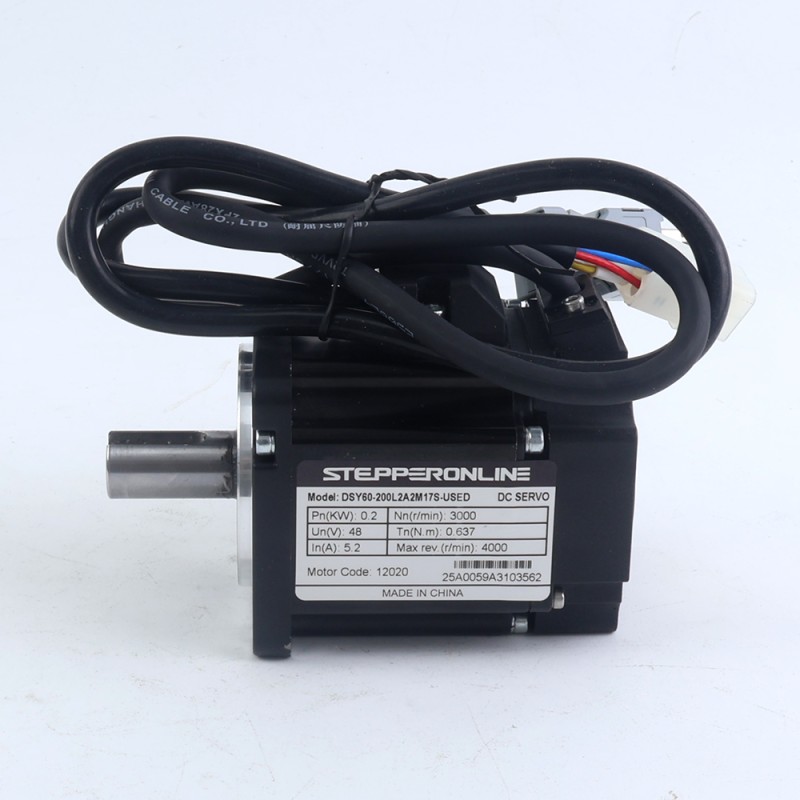

• Part Number: DSY60-200L2A2M17S
• Rated Power: 200W
• Rated Voltage: 48VDC
• Rated Torque: 0.637Nm
• Peak Torque: 1.91Nm
• Rated Current: 5.2A
• Rated Speed: 3000rpm
• Torque Const: 0.123N.m/A
• Line-line Resistance: 0.86ohms ± 10%
• Line-line Inductance: 1.46mH ± 20%
• Inertia: 0.27kg*m²*10^-4
• Encoder: 17-bit single-turn magnetic incremental encoder
• Poles: 10
• IP Rating: IP65
• Shaft diameter: 14mm
• Cable Length: 3m(optional lengths are 1.5m and 5m)
