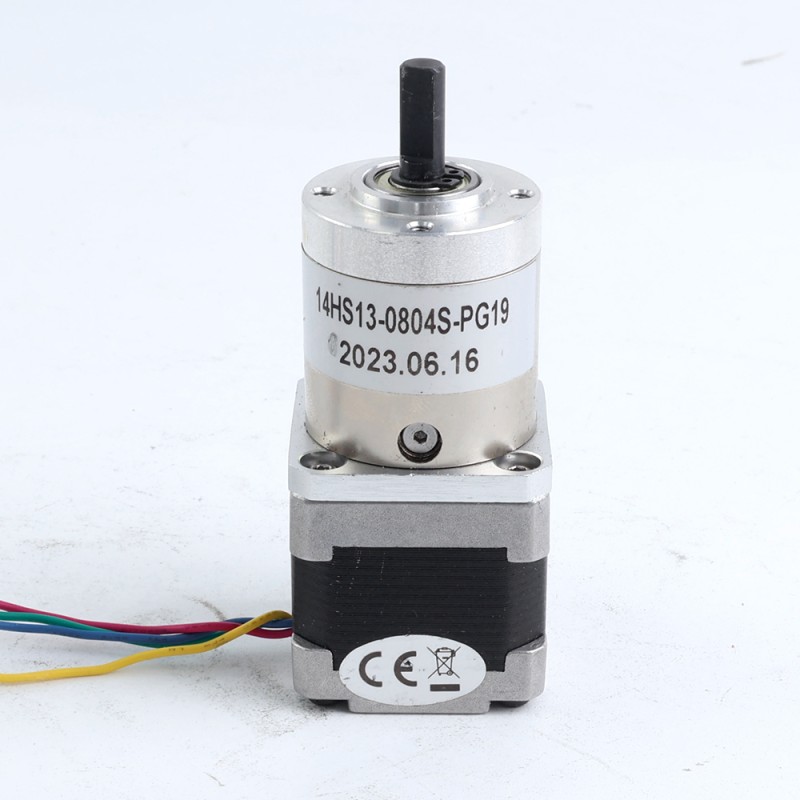

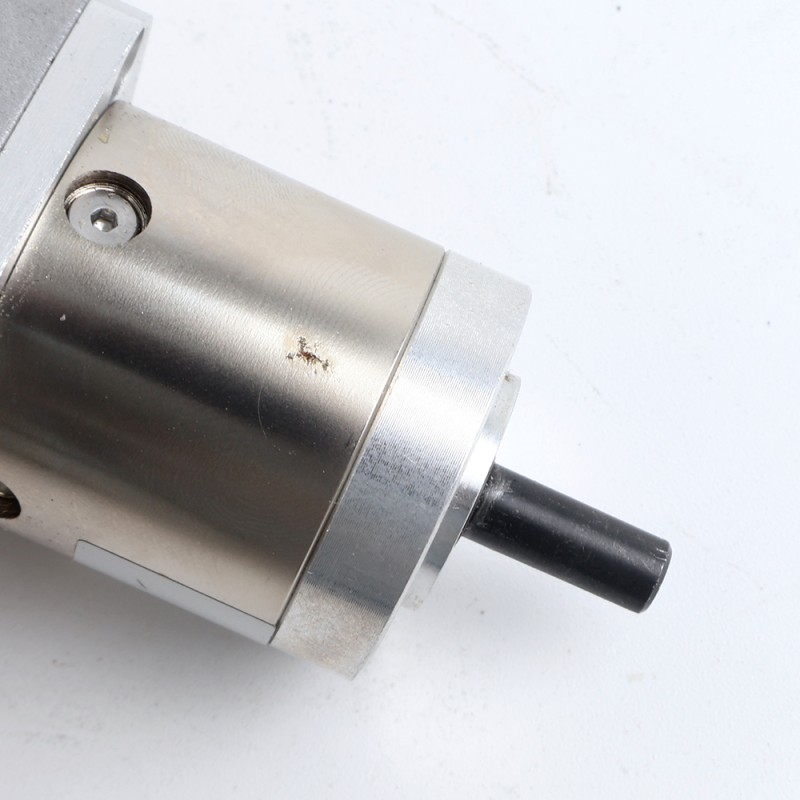

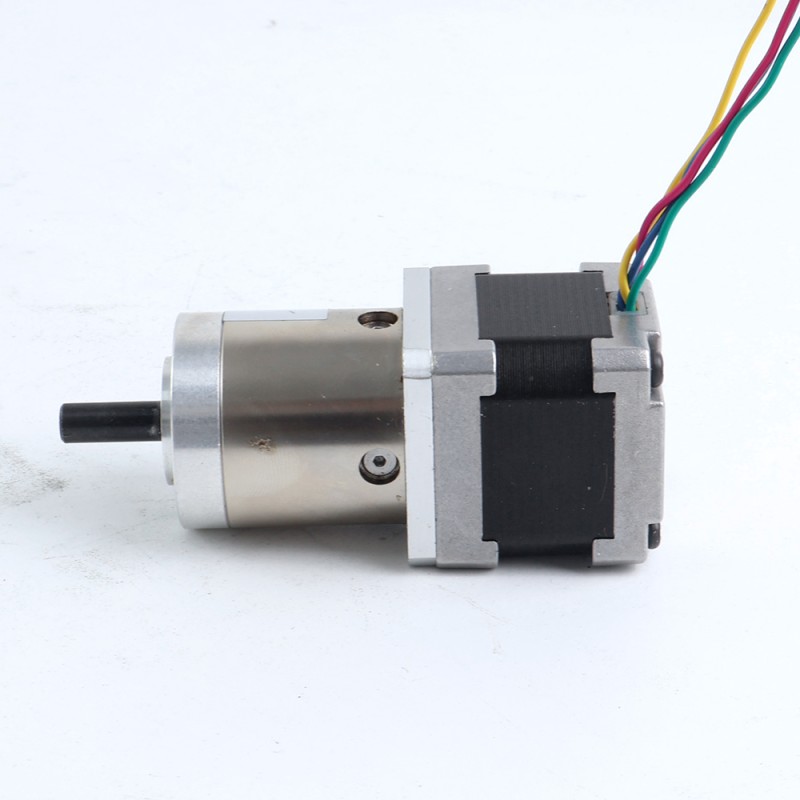

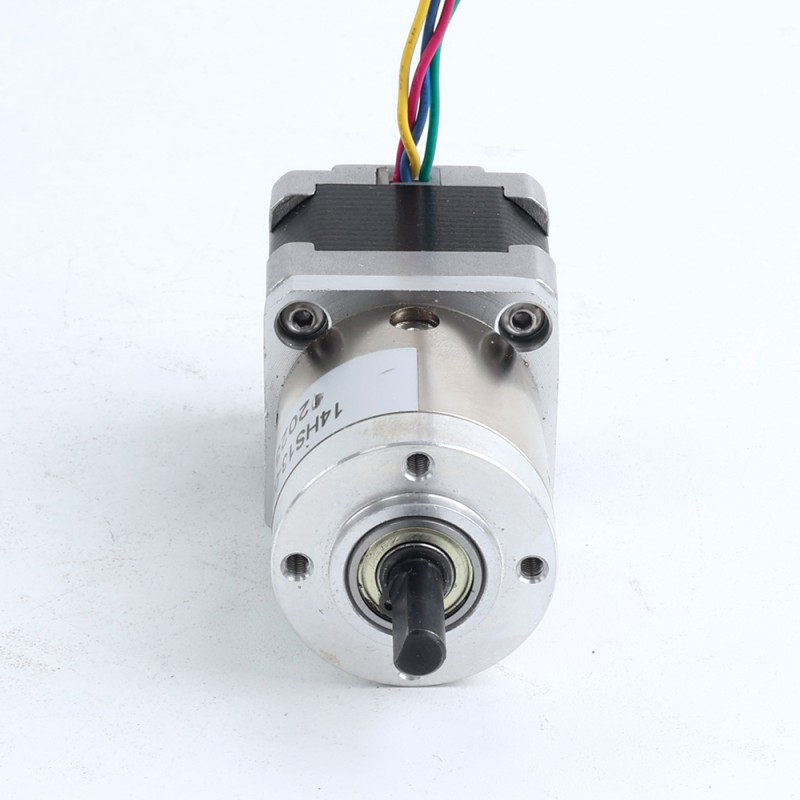

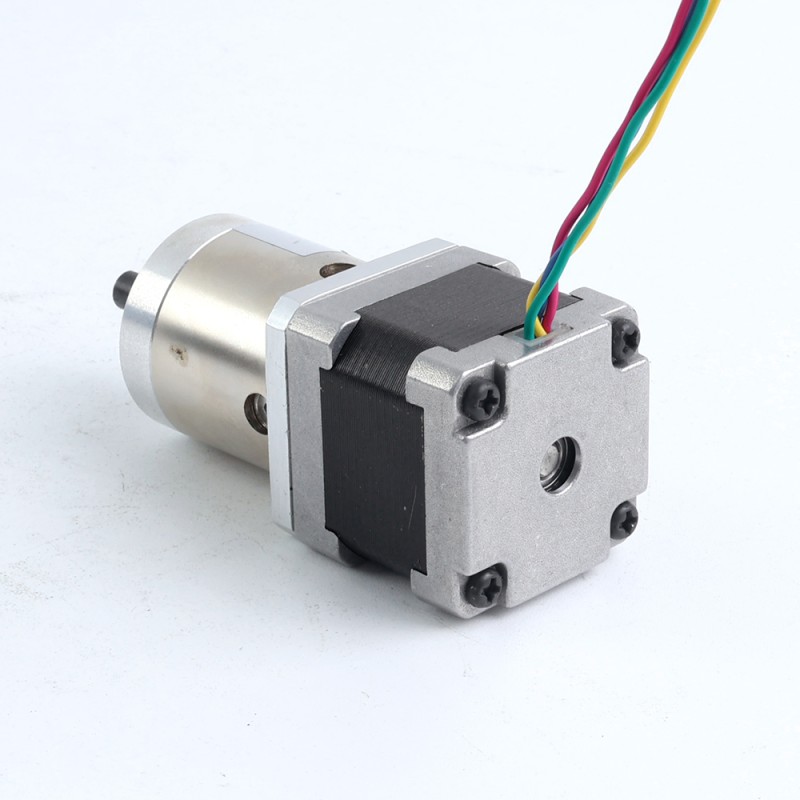

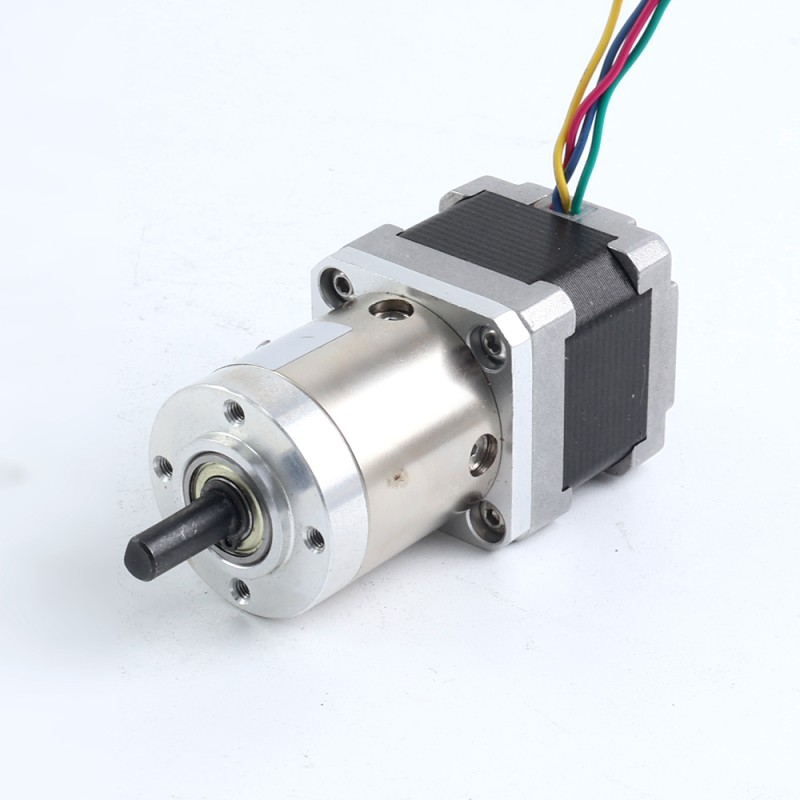

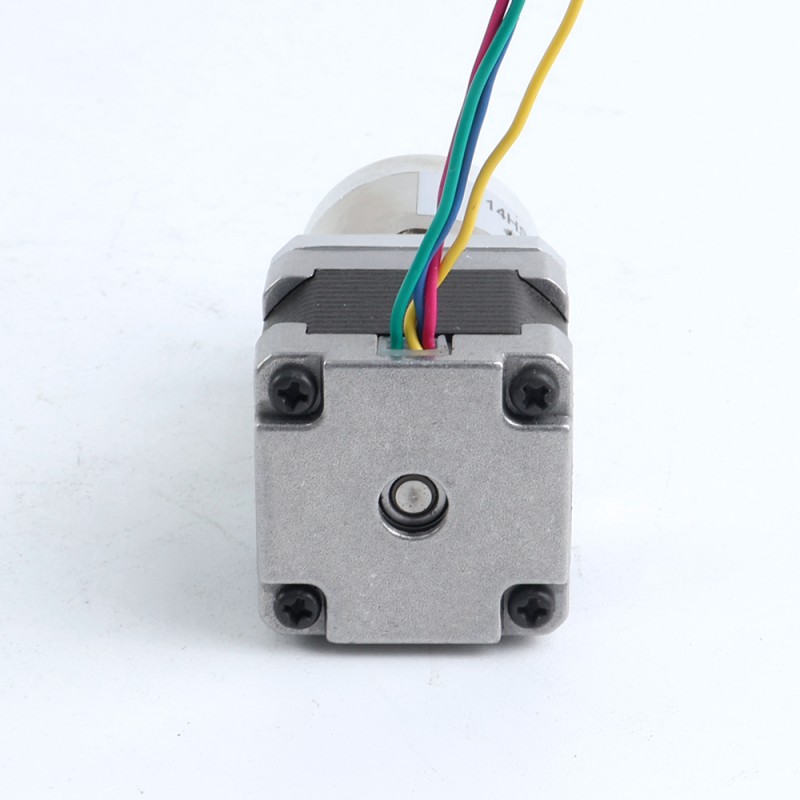

Used - Stock in China - Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox - 14HS13-0804S-PG19 | StepperOnline CA
14HS13-0804S-PG19-USED
Frame Size(mm)Nema 14 (35 x 35)
Gearbox TypeEconomy Planetary
Current(A)1.0
Holding Torque w/o Gearbox(N.m)0.14
Question

Downloads

14HS13-0804S-PG19_Full_Datasheet.pdfPDF · 138.65KB14HS13-0804S-PG19.STEPSTEP · 1.91MBLog in to download14HS13-0804S-PG19_Torque_Curve.pdfPDF · 186.81KB14HS13-0804S_Torque_Curve.pdfPDF · 214.15KB
Same series
ModelFrame Size(mm)Gearbox TypeCurrent(A)Holding Torque w/o Gearbox(N.m)PriceStock
14HS11-1004D-PG19-AR3Nema 14 (35 x 35)Economy Planetary10.125C$50.36In stock
14HS11-1004D-PG19-AR4Nema 14 (35 x 35)Economy Planetary1.00.125C$78.34Backorder
14HS13-0804D-PG19Nema 14 (35 x 35)Economy Planetary10.14C$50.63Backorder
14HS13-0804D-PG51Nema 14 (35 x 35)Economy Planetary10.14C$52.21In stock
14HS13-0804S-PG100Nema 14 (35 x 35)Economy Planetary1.00.14C$52.21In stock
14HS13-0804S-PG14Nema 14 (35 x 35)Economy Planetary1.00.18C$50.63Backorder
14HS13-0804S-PG19Nema 14 (35 x 35)Economy Planetary1.00.14C$50.63In stock
14HS13-0804S-PG19-USEDNema 14 (35 x 35)Economy Planetary1.00.14C$45.57In stock
14HS13-0804S-PG27Nema 14 (35 x 35)Economy Planetary1.00.14C$52.21In stock
14HS13-0804S-PG5Nema 14 (35 x 35)Economy Planetary1.00.14C$50.63In stock
14HS13-0804S-PG51Nema 14 (35 x 35)Economy Planetary1.00.14C$52.21In stock
14HS13-1004S-EGS100Nema 14 (35 x 35)Precision Planetary1.00.18C$83.96In stock
14HS13-1004S-EGS15Nema 14 (35 x 35)Precision Planetary1.00.18C$83.96In stock
14HS13-1004S-EGS20Nema 14 (35 x 35)Precision Planetary1.00.18C$83.96In stock
14HS13-1004S-EGS45Nema 14 (35 x 35)Precision Planetary1.00.18C$83.96In stock
14HS13-1004S-EGS5Nema 14 (35 x 35)Precision Planetary1.00.18C$40.79In stock
14HS20-1504D-PG14Nema 14 (35 x 35)Economy Planetary1.50.40C$57.99Backorder
14HS20-1504D-PG4Nema 14 (35 x 35)Economy Planetary1.50.40C$57.99In stock
14HS20-1504S-EGS100Nema 14 (35 x 35)Precision Planetary1.50.40C$87.10In stock
14HS20-1504S-EGS20Nema 14 (35 x 35)Precision Planetary1.50.40C$87.10In stock
14HS20-1504S-EGS45Nema 14 (35 x 35)Precision Planetary1.50.40C$87.10In stock
14HS20-1504S-EGS5Nema 14 (35 x 35)Precision Planetary1.50.40C$68.74In stock
14HS20-1504S-PG14Nema 14 (35 x 35)Economy Planetary1.50.40C$57.99In stock
14HS20-1504S-PG5Nema 14 (35 x 35)Economy Planetary1.50.40C$57.99In stock
Used - Stock in China - Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 19:1 Planetary Gearbox
This Nema 14 stepper motor with 34mm body and 1.0A rated current, integrated a planetary gearbox of ... Read More
0 reviews • Write a review
from Save -10%
C$45.57
C$50.63

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 14 stepper motor with 34mm body and 1.0A rated current, integrated a planetary gearbox of 19.19:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.


Electrical Specification

  • Manufacturer Part Number: 14HS13-0804S-PG19
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.094deg
  • Holding Torque without Gearbox: 14Ncm(19.83oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 3.2ohms
  • Inductance: 4.5mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 19.19:1
  • Gear Efficiency: 80%
  • Backlash at No-load: <=3deg
  • Max.Permissible Torque: 3Nm(424.83oz.in)
  • Moment Permissible Torque: 5Nm(708.06oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 35 x 35mm
  • Motor Length: 34mm
  • Gearbox Length: 36.8mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 320g

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 1.0
Has Torque/Thrust Curve? Yes
Holding Torque w/o Gearbox(N.m) 0.14
Inductance(mH) 4.5
Phase Resistance(ohms) 3.2
Physical Specification
Backlash at No-load <=3 deg
Body Length(mm) 69.8
Frame Size(mm) Nema 14 (35 x 35)
Gear Ratio(xx:1) 19.19
Gearbox Type Economy Planetary
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Single Shaft/Dual Shaft Single Shaft
Weight(g) 320

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

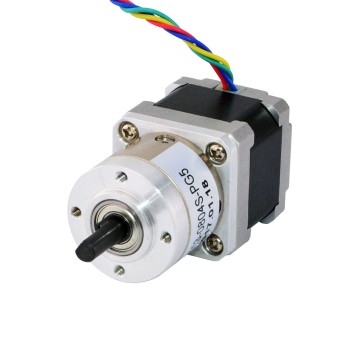

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 Planetary Gearbox
