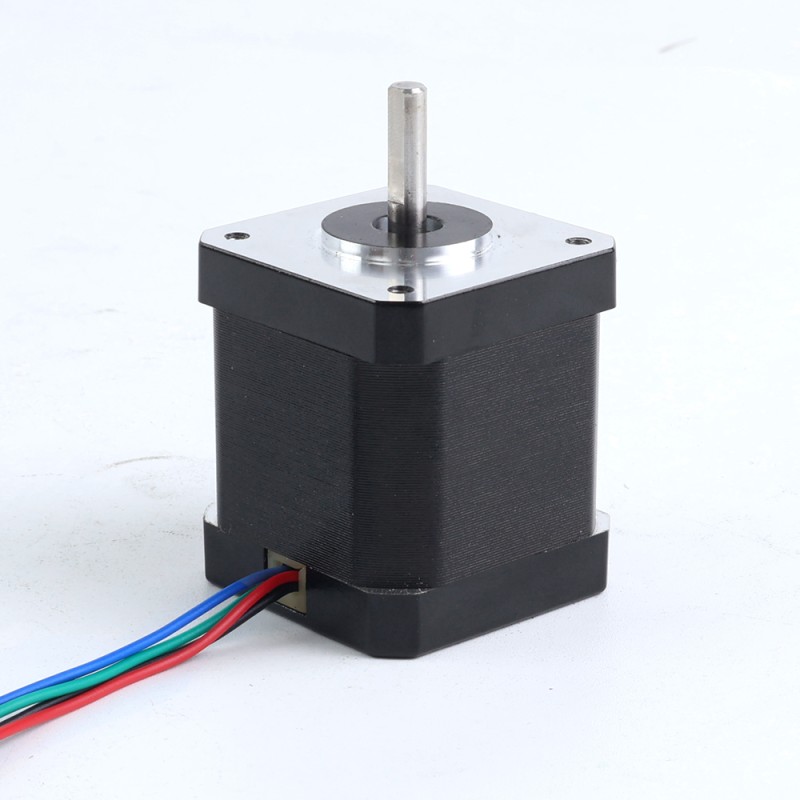

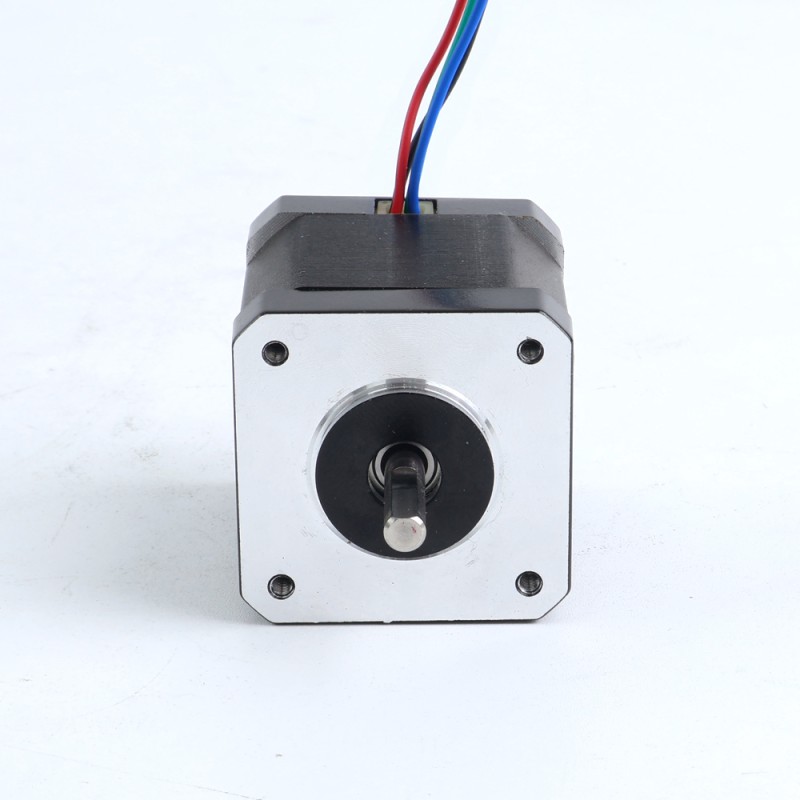

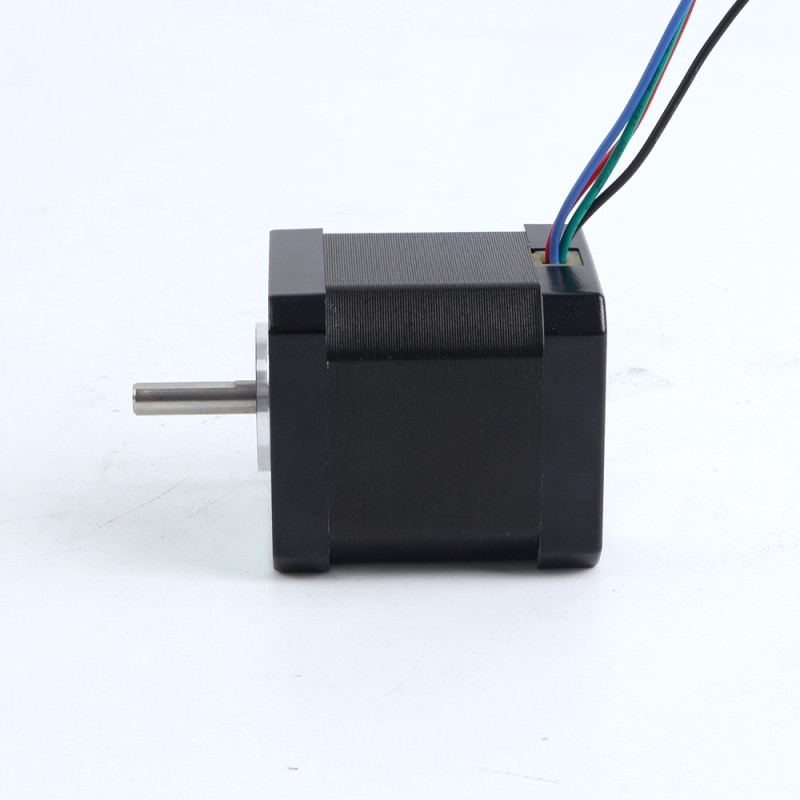

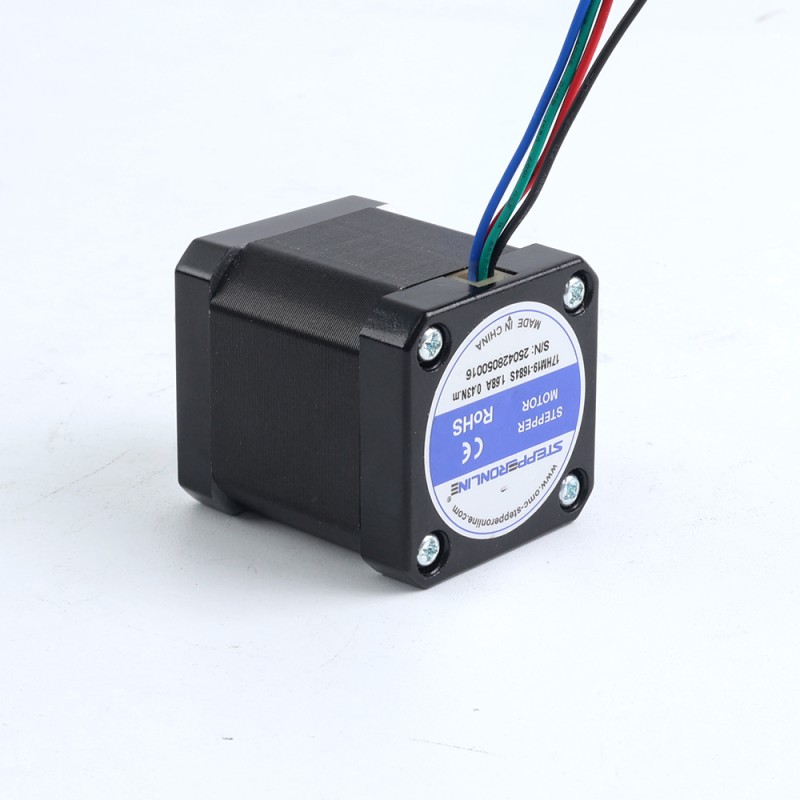

Used - Stock in China - Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires

Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires - 17HM19-1684S | StepperOnline CA
17HM19-1684S-USED
Frame Size(mm)Nema 17 (42 x 42)
Step Angle(deg.)0.9
Body Length(mm)48
Holding Torque(Ncm)42
Question

Downloads

17HM19-1684S_Full_Datasheet.pdfPDF · 261.13KB17HM19-1684S_Torque_Curve.pdfPDF · 132.81KB17HM19-1684S.STEPSTEP · 1.09MBLog in to download
Same series
ModelFrame Size(mm)Step Angle(deg.)Body Length(mm)Holding Torque(Ncm)PriceStock
17HM08-1204SNema 17 (42 x 42)0.92111C$13.24In stock
17HM13-0316DNema 17 (42 x 42)0.93416C$13.72Backorder
17HM13-0316SNema 17 (42 x 42)0.93416C$13.95Backorder
17HM15-0406SNema 17 (42 x 42)0.93926C$14.66In stock
17HM15-0904SNema 17 (42 x 42)0.94036C$15.63In stock
17HM15-1004SNema 17 (42 x 42)0.94033C$14.56In stock
17HM15-1684SNema 17 (42 x 42)0.93932C$15.60In stock
17HM19-0406DNema 17 (42 x 42)0.94832C$16.54Backorder
17HM19-1684DNema 17 (42 x 42)0.94844C$17.17In stock
17HM19-1684SNema 17 (42 x 42)0.94842C$16.54In stock
17HM19-1684S-USEDNema 17 (42 x 42)0.94842C$14.89In stock
17HM19-2004SNema 17 (42 x 42)0.94846C$16.54In stock
17HM19-2004S-USEDNema 17 (42 x 42)0.94846C$11.59In stock
17HM19-2004S1Nema 17 (42 x 42)0.94846C$15.60In stock
Used - Stock in China - Nema 17 Bipolar 0.9deg 42Ncm(59.48oz.in) 1.68A 42x42x48mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each ... Read More
0 reviews • Write a review
from Save -10%
C$14.89
C$16.54

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each phase draws current 1.68A, with holding torque 42Ncm(59.48oz.in).


Electrical Specification

  • Manufacturer Part Number: 17HM19-1684S
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9deg
  • Holding Torque: 42Ncm(59.48oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms
  • Inductance: 4.1mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 350g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 42
Holding Torque(oz.in) 62.3
Inductance(mH) 4.1
Phase Resistance(ohms) 1.65
Rated Current(A) 1.68
Step Angle(deg.) 0.9
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft
Weight(g) 350
