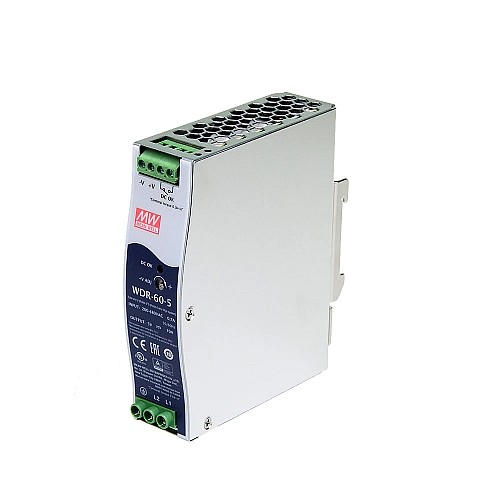

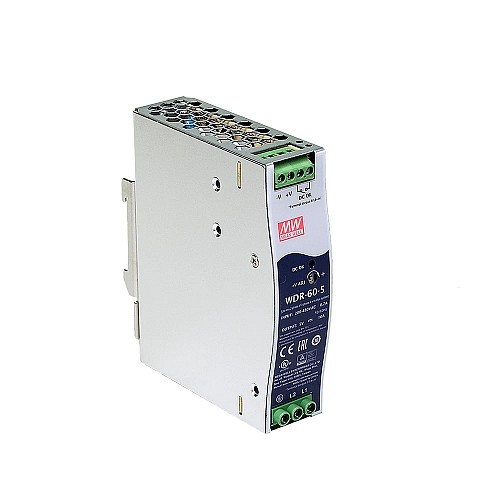

WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply

WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-60-5 | StepperOnline CA
WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-60-5 | StepperOnline CA
WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-60-5 | StepperOnline CA
WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-60-5 | StepperOnline CA
WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-60-5 | StepperOnline CA
WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-60-5 | StepperOnline CA
WDR-60-5 MEANWELL 50W 5VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply
0 reviews - Write a review
C$64.38
5 + C$62.50
10 + C$60.72
50 + C$59.05
100 + C$57.47
  • In Stock: 10000
  • Brand: MEANWELL
  • Model: WDR-60-5
  • Gross Weight: 0.83kg
  • Certificated: ISO, CE, RoHS
Sold: 17

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

  • Brand MEANWELL
  • 5V DC 10A output
  • AC input voltage range: 180 ~ 550VAC
  • Rated power: 50W
  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit

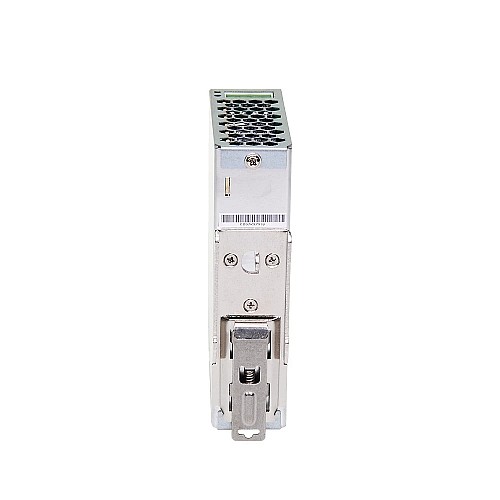

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Buil-in DC OK relay contact
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Electrical Specification
Efficiency(%) 83.5%
Max. Output Current(A) 10
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 32 x 125.2 x 102
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 180 - 550 / 254 - 780
Output Voltage(VDC) 5
PFC Function No
Power Type DIN Rail Power Supply
Power(W) 50
Physical Specification
Inventory Method Dedicated Inventory
File Size
WDR-60.pdf 443.62KB Download
