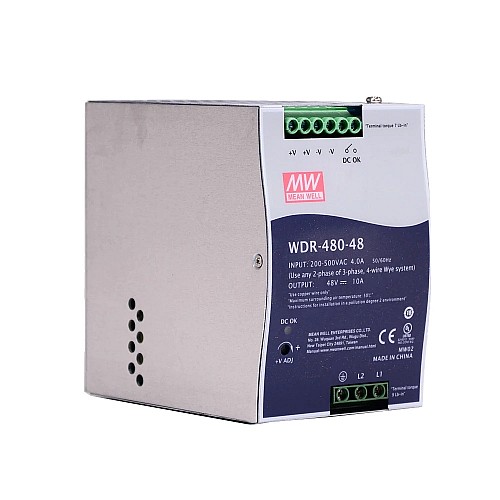

WDR-480-48 MEANWELL 480W 48VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply

WDR-480-48 MEANWELL 480W 48VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply - WDR-480-48 | StepperOnline CA
WDR-480-48 MEANWELL 480W 48VDC 10A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply
0 reviews - Write a review
$169.03
5 + $164.09
10 + $159.44
50 + $155.04
100 + $150.88
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: WDR-480-48
  • Gross Weight: 1.93kg
  • Certificated: ISO, CE, RoHS
Sold: 7

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 48V DC 10A output
  • AC input voltage range: 180 ~ 550VAC
  • Rated power: 480W
  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Buil-in DC OK relay contact
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Product Type
Product Type DIN Rail Power Supply
Electrical Specification
Efficiency(%) 93%
Max. Output Current(A) 10
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 85.5 x 125.2 x 128.5
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 180 - 550 / 254 - 780
Output Voltage(VDC) 48
PFC Function Yes
Power(W) 480
Physical Specification
Inventory Method Dedicated Inventory
File Size
WDR-480.pdf 800.89KB Download
