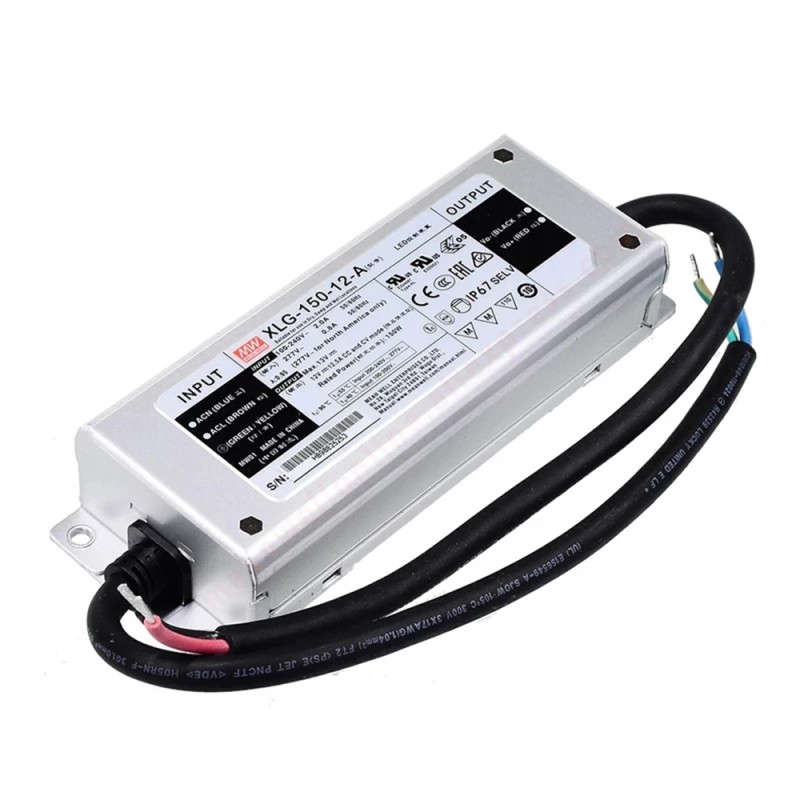

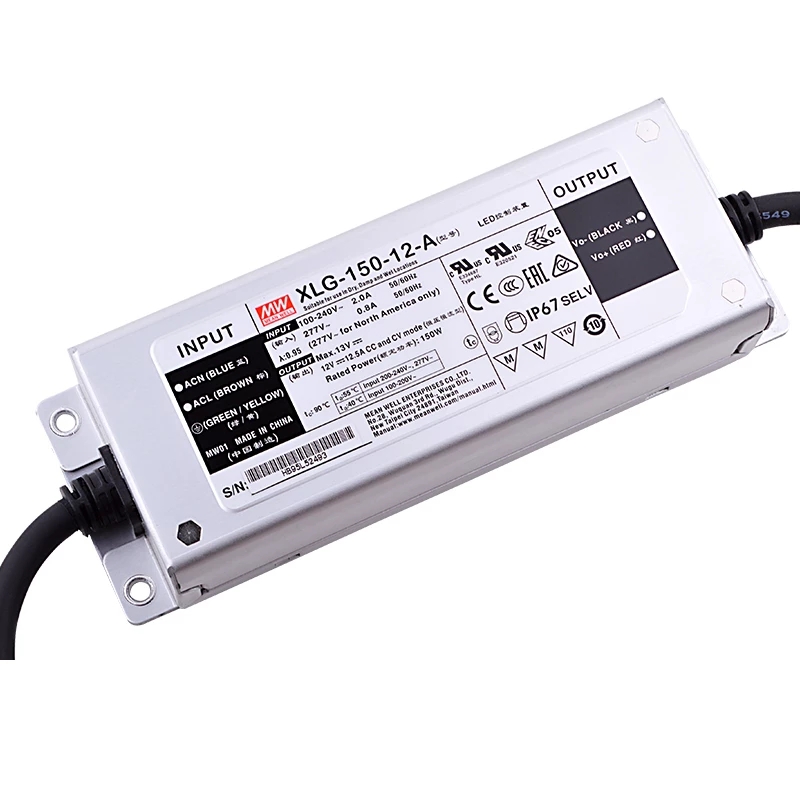

Name: XLG-150-12-A MEANWELL 150W 12VDC 12.5A 115/230VAC Constant Power Mode LED Driver
Brand: MEANWELL
SKU: XLG-150-12-A
Price: 40.89 CAD
Availability: PreOrder

XLG-150-12-A MEANWELL 150W 12VDC 12.5A 115/230VAC Constant Power Mode LED Driver

Pre-order

XLG-150-12-A

Max. Output Current(A)12.5

Output Voltage(VDC)12

Efficiency(%)91.5%

Question

Downloads

XLG-150.pdfPDF · 1.12MB

Same series

Model	Max. Output Current(A)		Output Voltage(VDC)	Efficiency(%)	Price	Stock
DR-RDN20	20	—	—	—	C$37.35	In stock
DRA-40-12	3.34	—	12	85%	C$30.81	Backorder
DRA-40-24	1.7	—	24	87%	C$30.81	Backorder
DRA-60-12	5	—	12	85%	C$34.28	Backorder
DRA-60-24	2.5	—	24	87%	C$34.28	Backorder
DRDN40-12	40	—	12	98%	C$49.53	Backorder
DRDN40-24	40	—	24	98%	C$49.53	Backorder
DRDN40-48	40	—	48	98%	C$49.53	Backorder
EDR-120-12	10	—	12	85%	C$27.65	In stock
EDR-120-24	5	—	24	87.5%	C$27.65	Backorder
EDR-120-48-SALE	2.5	—	48	88.5%	C$29.42	In stock
EDR-150-24	6.5	—	24	87%	C$38.87	Backorder
EDR-75-12	6.3	—	12	85.5%	C$32.54	Backorder
EDR-75-24	3.2	—	24	87.5%	C$23.33	In stock
EDR-75-48	1.6	—	48	88.5%	C$32.54	Backorder
ELG-150-24A-3Y	5.6	—	24	89	C$39.45	Backorder
ERP-200-12	16.8	—	12	87%	C$42.05	Backorder
ERP-200-24	8.33	—	24	89%	C$42.05	Backorder
ERP-350-12	26.7	—	12	87%	C$53.00	Backorder
ERP-350-24	14.6	—	24	89%	C$53.00	Backorder
ERPF-400-12	30	—	12	89%	C$61.06	Backorder
ERPF-400-24	16.7	—	24	90%	C$61.06	Backorder
GSM120B24-R7B	5	—	24	0.9	C$69.41	Backorder
GSM40A07-P1J	5.34	—	7.5	0.855	C$29.67	Backorder
GSM40A15-P1J	2.67	—	15	0.885	C$29.67	Backorder
GSM60A05-P1J	6	—	5	0.815	C$33.12	Backorder
GSM60A07-P1J	6	—	7.5	0.86	C$33.12	Backorder
GSM60A09-P1J	6	—	9	0.875	C$33.12	Backorder
GSM60A24-P1J	2.5	—	24	0.905	C$33.12	Backorder
GSM60A48-P1J	1.25	—	48	0.915	C$33.12	Backorder

View all in category

XLG-150-12-A MEANWELL 150W 12VDC 12.5A 115/230VAC Constant Power Mode LED Driver

Features Brand MEANWELL 12V DC 12.5A output AC input voltage range: 100 ~ 305VAC Rated power: ... Read More

0 reviews • Write a review

from

C$40.89

5 + C$39.70

10 + C$38.57

50 + C$37.51

100 + C$36.51

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Brand MEANWELL
12V DC 12.5A output
AC input voltage range: 100 ~ 305VAC
Rated power: 150W
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV(10KV/6KV optional)
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Life time >50,000 hrs. and 5 years warranty
Io adjustable via built-in potentiometer
Standard version

Applications

Skyscraper lighting
Street lighting
Floodlight Lighting
Stage lighting
Fishing lighting
Horticulture lighting
Bay lighting
DMX power supply
Type "HL" for use in Class Ⅰ, Divsion 2

Electrical Specification
Efficiency(%)	91.5%
Max. Output Current(A)	12.5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	180 x 63 x 35.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	100 - 305 / 142 - 431
Output Voltage(VDC)	12
PFC Function	Yes
Power Type	LED Driver
Power(W)	150
