Name: XLG-150-24-A | XLG-150-24-A MEANWELL 150W 24VDC 6.25A 115/230VAC Constant Power Mode LED Driver | StepperOnline CA
Brand: MEANWELL
SKU: XLG-150-24-A
Price: 41.74 CAD
Availability: PreOrder

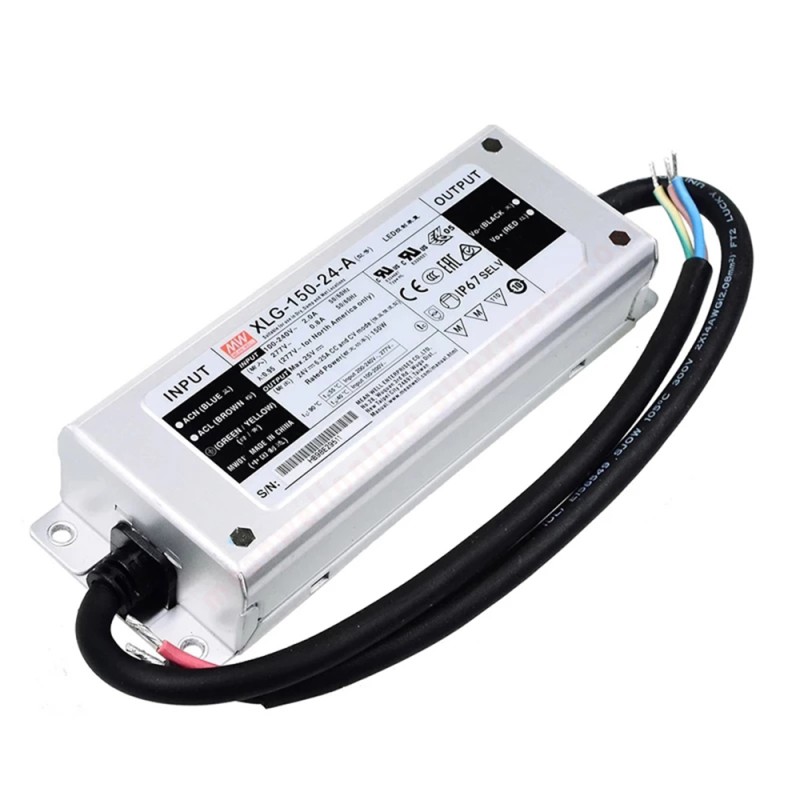

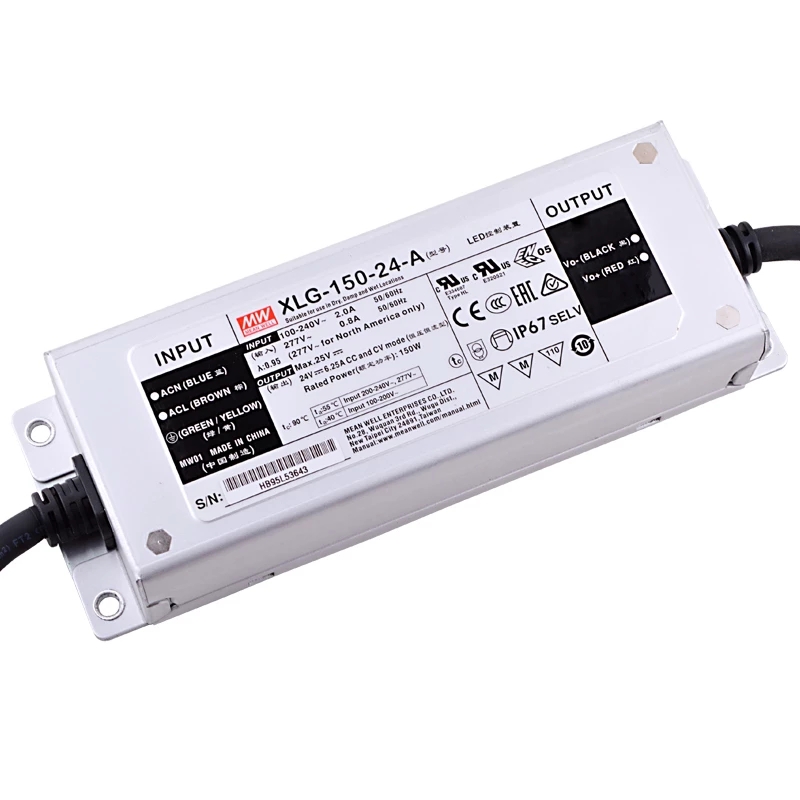

XLG-150-24-A MEANWELL 150W 24VDC 6.25A 115/230VAC Constant Power Mode LED Driver

0 reviews - Write a review

C$41.74

5 + C$40.52

10 + C$39.37

50 + C$38.29

100 + C$37.27

In Stock: Pre-order
Brand: MEANWELL
Model: XLG-150-24-A
Gross Weight: 0.58kg
Certificated: ISO, CE, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
24V DC 6.25A output
AC input voltage range: 100 ~ 305VAC
Rated power: 150W
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV(10KV/6KV optional)
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Life time >50,000 hrs. and 5 years warranty
Io adjustable via built-in potentiometer
Standard version

Applications

Skyscraper lighting
Street lighting
Floodlight Lighting
Stage lighting
Fishing lighting
Horticulture lighting
Bay lighting
DMX power supply
Type "HL" for use in Class Ⅰ, Divsion 2

Electrical Specification
Efficiency(%)	91.5%
Max. Output Current(A)	6.25
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	180 x 63 x 35.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	100 - 305 / 142 - 431
Output Voltage(VDC)	24
PFC Function	Yes
Power Type	LED Driver
Power(W)	150
Physical Specification
Inventory Method	Shared Inventory
