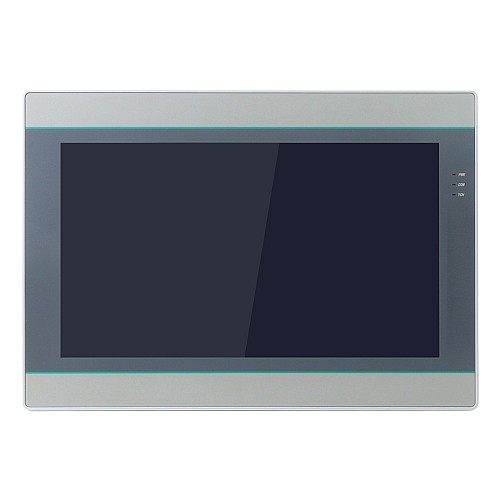

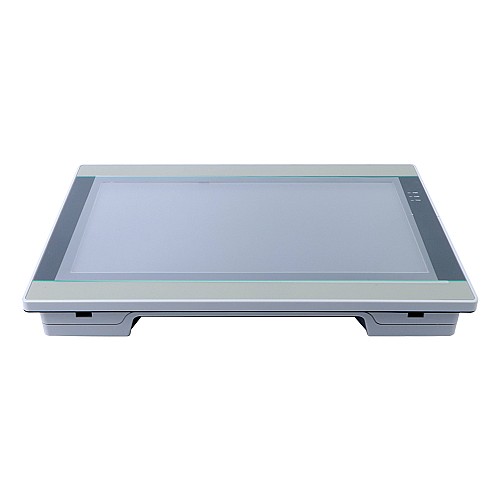

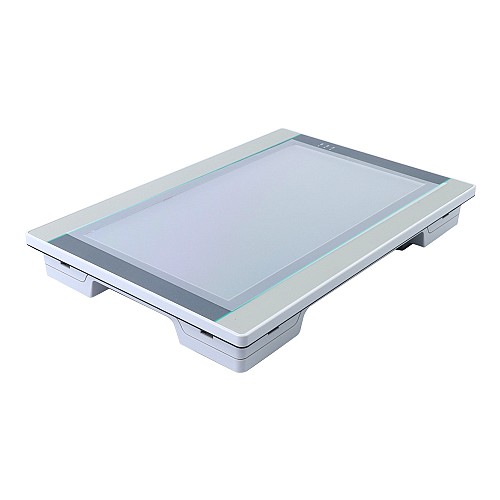

10.1" 1024x600px RS-485 Serial port & USB 128MB/FLASH 128MB/Memory HMI Touch Screen LED Display

This high-end 10.1-inch HMI touch screen display features an LED screen with ultra-high 1024x600 pixel resolution and 350cd/m² brightness. The backlit LED display ensures excellent visibility, with a lifespan exceeding 20,000 hours. Compared to standard models, this touchscreen offers enhanced functionality with multiple USB HOST and two USB CLIENT interfaces for efficient debugging and control. Compliant with IP65 flat panel installation standards, the panel is ideal for various PLCs or intelligent controllers equipped with communication ports. Users can effortlessly design and create programs using the included intuitive and powerful software.

Specifications

• Part Number: HI3102ig-O
• Display Type: HMI Display
• Processor: 4-core high-performance CPU
• Storage: 128MB NAND FLASH + 128MB Memory
• Operating Voltage: 24VDC
• Display Resolution: 1024x600px
• Display Brightness: 350cd/m²
• Display Backlight: LED
• Display Size: 10.1"
• Panel Cut-out: 260.0x179.0mm
• Backlight Lifetime: 20,000 hours

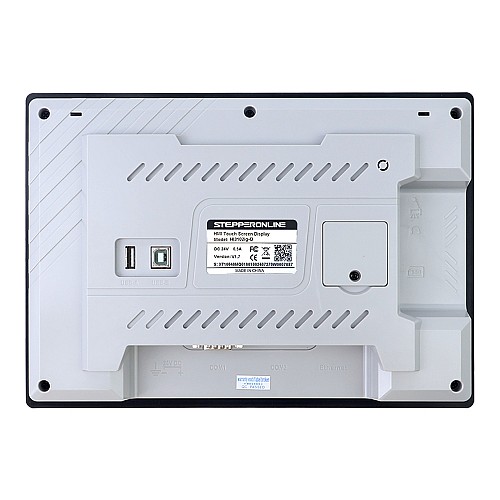

• USB Port: USB Host/USB CLIENT Note: Two USB ports cannot be used simultaneously.
• Ethernet: Yes
• I/O Port: Serial port(9): (RS-232, RS-422/RS-485, RS-485)

Downloads

• HMI Editor Software
• HMI Installation Manual
