Nema 17 Bipolar Stepper Motor 1.8deg 16Ncm(22.66oz.in) 1A Extruder Motor 42x42x20mm 4 Wires
C$11.83
5 + C$11.26
10 + C$10.76
50 + C$10.30
100 + C$9.87
- In Stock: 10000
- Model: 17HS08-1004S
- Gross Weight: 0.20kg
- Certificated: ISO, CE, UKCA, RoHS

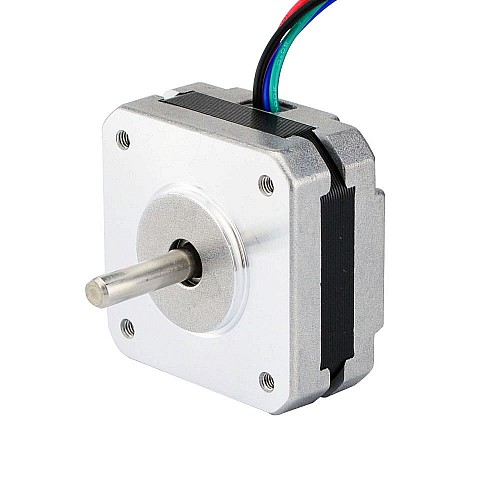

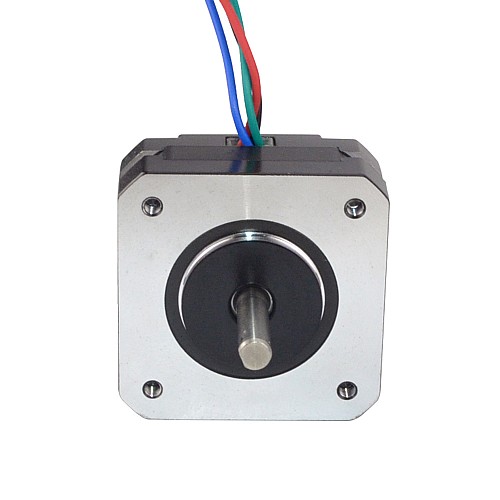

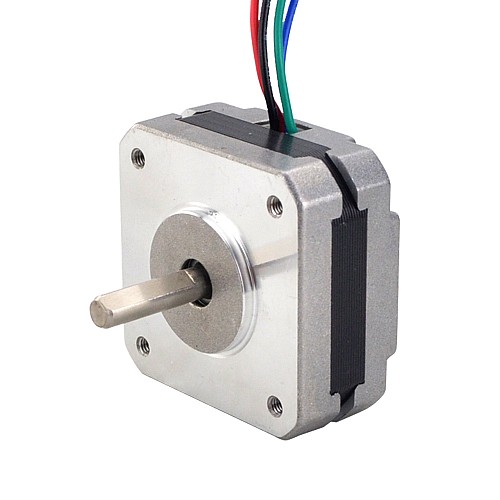

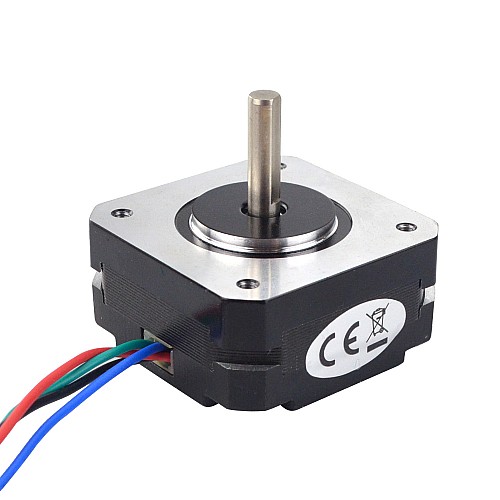

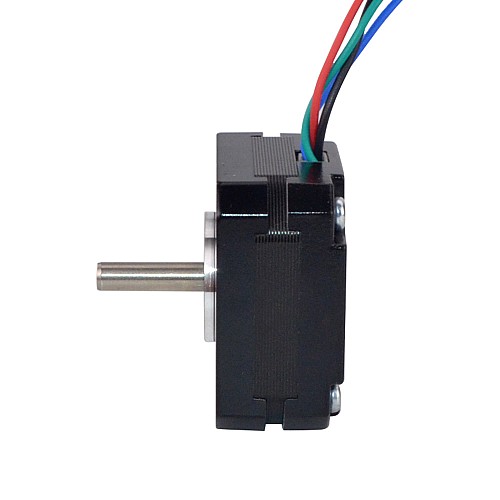

This is the shortest bipolar Nema 17 stepper motor we have, with a step angle of 1.8deg, a shaft diameter of Φ5mm and size 42x42x20mm. It has 4 wires, each phase draws current 1.0A, with holding torque 16Ncm(22.66oz.in). Works great with various extrders.
Electrical Specification
- Manufacturer Part Number: 17HS08-1004S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 16Ncm(22.66oz.in)
- Rated Current/phase: 1.0A
- Phase Resistance: 3.7ohms
- Inductance: 4.5mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 20mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 16.5mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 140g
Connection
A+ |
A- |
B+ |
B- |
Black |
Green |
Red |
Blue |

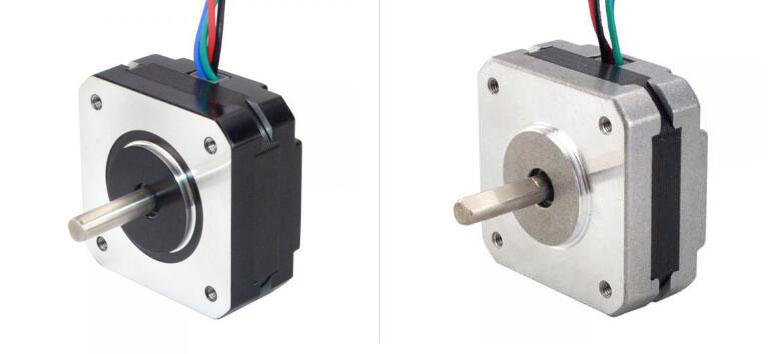

Note: Currently this motor STOCKED IN CHINA has two appearance,but with the same performance. One is black and the other is silver. If you have a prefer appearance,please leave us a message when ordering. Or the motor will be shipped randomly regardless of the appearance.
