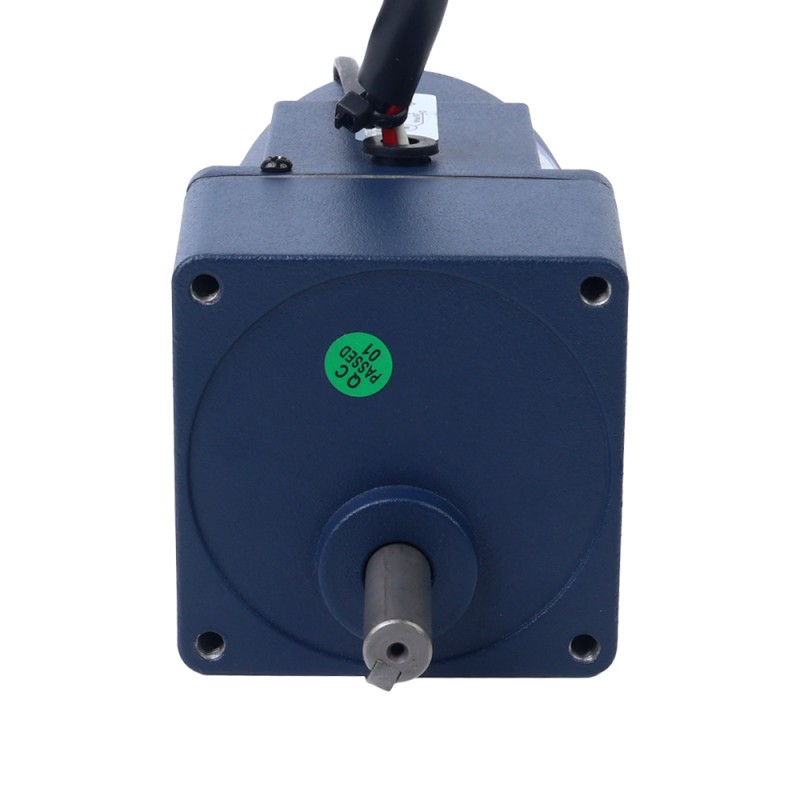

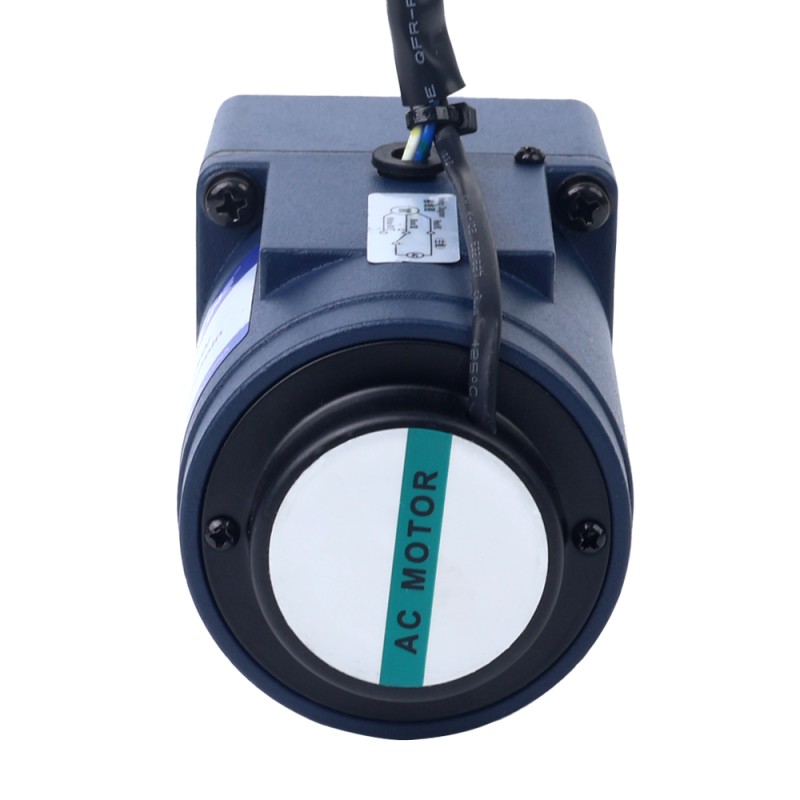

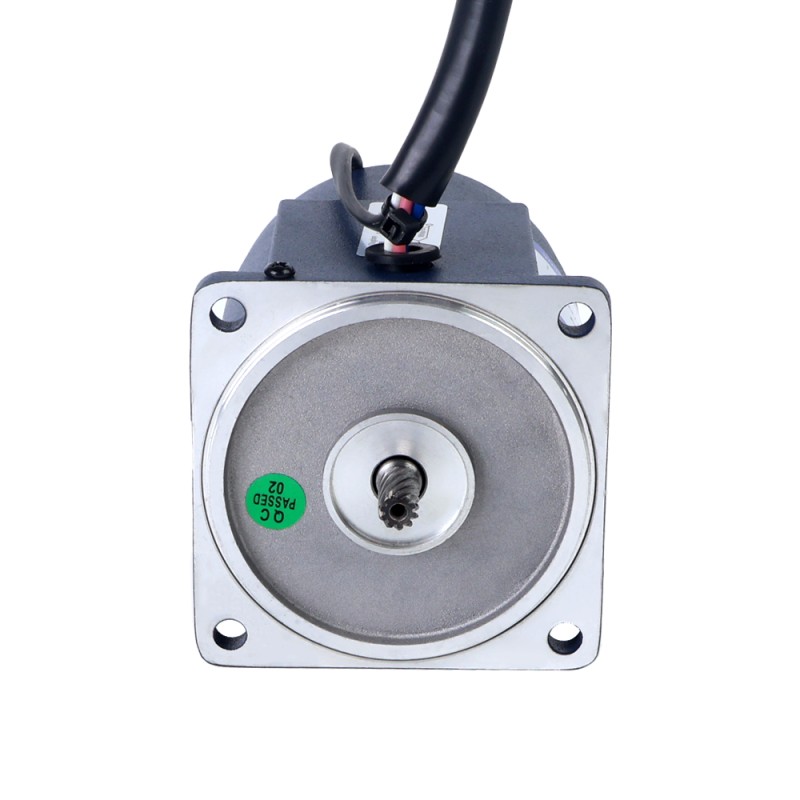

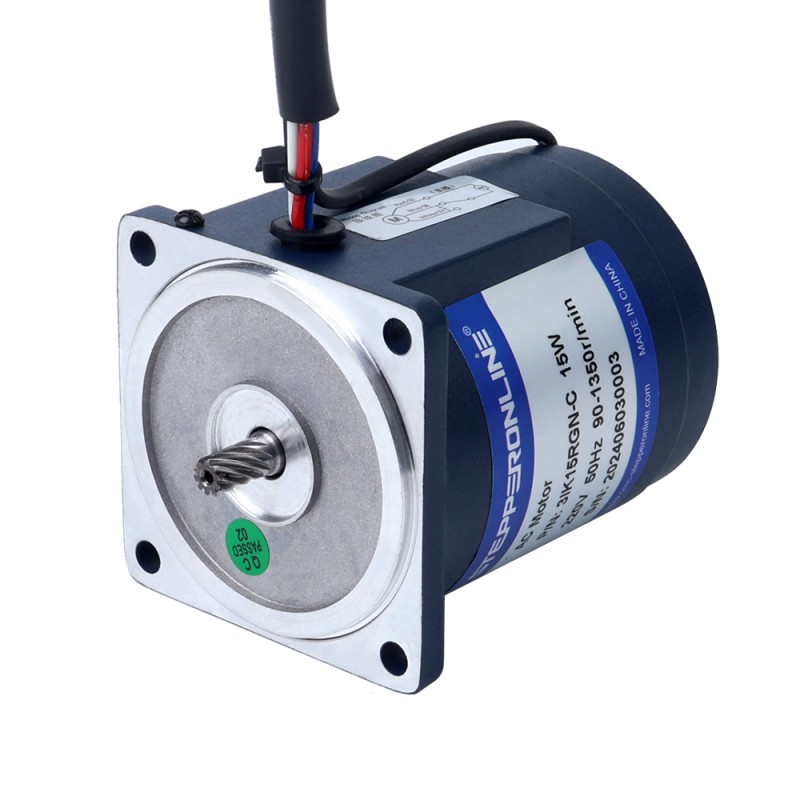

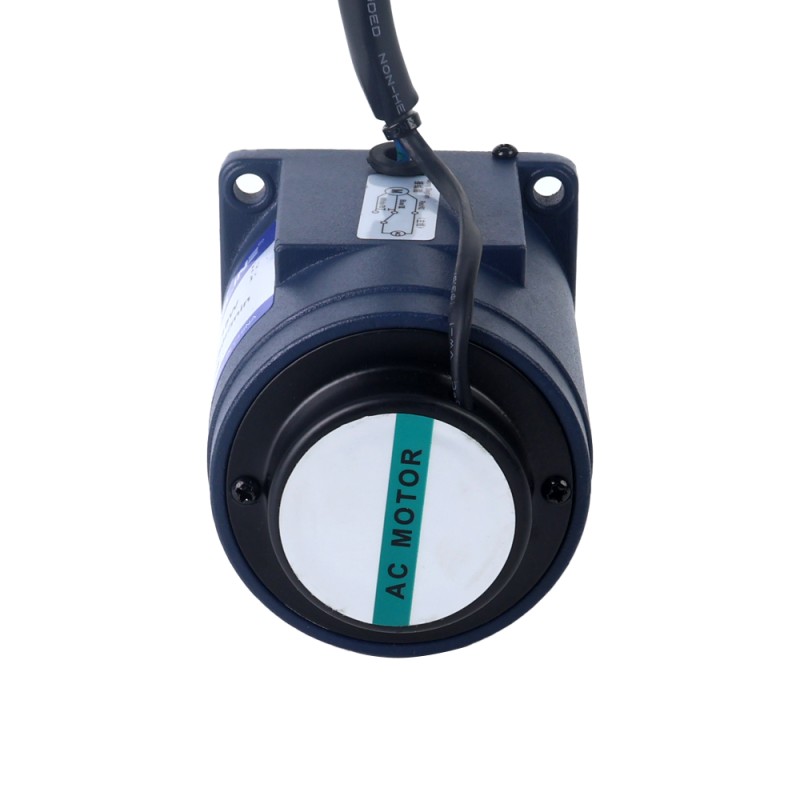

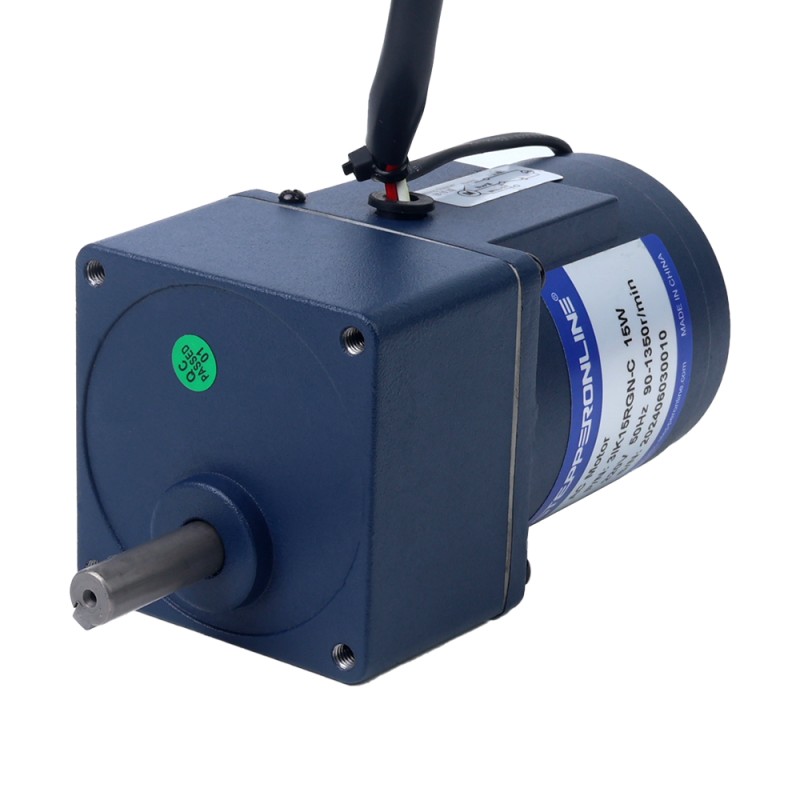

15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor

15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor - 3IK15RGN-C/3GN15K | StepperOnline CA
3IK15RGN-C/3GN15K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)70 x 70
Current(A)0.17
Question

Downloads

3IK15RGN-C_3GNXXK_manual.pdfPDF · 1.17MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
3IK15RGN-A/3GN100KKeyway1PH 110VAC70 x 700.35C$43.85In stock
3IK15RGN-A/3GN10KKeyway1PH 110VAC70 x 700.35C$39.63In stock
3IK15RGN-A/3GN15KKeyway1PH 110VAC70 x 700.35C$39.63In stock
3IK15RGN-A/3GN200KKeyway1PH 110VAC70 x 700.35C$43.85In stock
3IK15RGN-A/3GN20KKeyway1PH 110VAC70 x 700.35C$41.73In stock
3IK15RGN-A/3GN30KKeyway1PH 110VAC70 x 700.35C$41.73In stock
3IK15RGN-A/3GN3KKeyway1PH 110VAC70 x 700.35C$39.63In stock
3IK15RGN-A/3GN50KKeyway1PH 110VAC70 x 700.35C$41.73In stock
3IK15RGN-A/3GN5KKeyway1PH 110VAC70 x 700.35C$39.63In stock
3IK15RGN-C/3GN100KKeyway1PH 220VAC70 x 700.17C$43.85In stock
3IK15RGN-C/3GN10KKeyway1PH 220VAC70 x 700.17C$39.63In stock
3IK15RGN-C/3GN15KKeyway1PH 220VAC70 x 700.17C$39.63In stock
3IK15RGN-C/3GN200KKeyway1PH 220VAC70 x 700.17C$43.85In stock
3IK15RGN-C/3GN200K-SALEKeyway1PH 220VAC70 x 700.17C$44.54In stock
3IK15RGN-C/3GN20KKeyway1PH 220VAC70 x 700.17C$41.73In stock
3IK15RGN-C/3GN30KKeyway1PH 220VAC70 x 700.17C$41.73In stock
3IK15RGN-C/3GN3KKeyway1PH 220VAC70 x 700.17C$39.63In stock
3IK15RGN-C/3GN50KKeyway1PH 220VAC70 x 700.17C$41.73In stock
3IK15RGN-C/3GN5KKeyway1PH 220VAC70 x 700.17C$39.63In stock
15W 220VAC 50Hz 6-90RPM 1.51Nm(213.83oz.in) Flange 70mm Spur Gearbox Single-phase AC Variable Speed Motor
This 70x70mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a s... Read More
0 reviews • Write a review
from
C$39.63
5 + C$38.56
10 + C$37.56
50 + C$36.60
100 + C$35.68

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 70x70mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 6-90rpm and a gearbox with a gear ratio of 15. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 3IK15RGN-C/3GN15K
  • Gearbox Type: Spur Gearbox
  • Output Power: 15W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.17A
  • Gear Ratio: 15:1
  • Speed Range: 6-90rpm
  • Maximum Torque: 1.51Nm(213.83oz.in)
  • Capacitor: 1.2μF/450VAC

Physical Specifications

  • Frame Size: 70x70mm
  • Body Length: 135mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 1.95kg

Wiring

Electrical Specification
Current(A) 0.17
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Max. Torque(Nm) 1.51
Output Power(W) 15
Speed Range(rpm) 6-90
Physical Specification
Frame Size(mm) 70 x 70
Gear Ratio(xx:1) 15
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

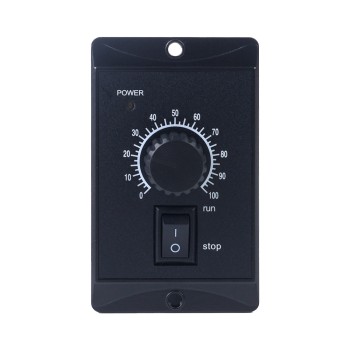

15W Single Phase 220VAC Motor Speed Controller for Variable Speed Motor
15W Single Phase 220VAC Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of single-phase 220VAC and is suitable for 15W variable speed motors. It features advanced PID contro..
from
C$14.73
Add to Cart
Add to Wish List Compare this Product
Quickview
6W 220VAC 50Hz 6-90RPM 0.54Nm(76.47oz.in) Flange 60mm Spur Gearbox Single-phase AC Variable Speed Motor
6W 220VAC 50Hz 6-90RPM 0.54Nm(76.47oz.in) Flange 60mm Spur Gearbox Single-phase AC Variable Speed Motor
This 60x60mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 6-90rpm and a gearbox with a gear ra..
from
C$32.49
Add to Cart
Add to Wish List Compare this Product
Quickview

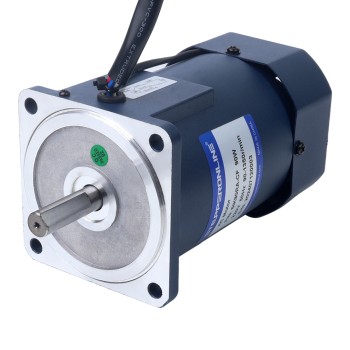

90W 220VAC 50Hz 90-1350RPM 0.675Nm(95.59oz.in) Flange 90mm Single-phase AC Variable Speed Motor
90W 220VAC 50Hz 90-1350RPM 0.675Nm(95.59oz.in) Flange 90mm Single-phase AC Variable Speed Motor
This 90W 90x90mm single-phase AC motor with adjustable speed control is operated with 220VAC and has a speed range of 90-1350rpm. Designed for simple ..
from
C$46.49
Add to Cart
Add to Wish List Compare this Product
Quickview
P Series Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)
P Series Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)
Electrical Specification Manufacturer Part Number: 23E1K-20 Number of phase: 2 Step Angle: 1.8deg Holding Torque: 2Nm(283.22oz.in) Rated Curr..
from
C$59.15
Add to Cart
Add to Wish List Compare this Product
Quickview
2.7m(106") AWG20 Motor Extension Cable with GX16 Aviation Connector for Nema 23 and 24 Closed Loop Stepper Motors
2.7m(106") AWG20 Motor Extension Cable with GX16 Aviation Connector for Nema 23 and 24 Closed Loop Stepper Motors
RV-4 AWG20 2.7m(106") Motor Extension Cable with GX16 Aviation Plug for Nema 23 and 24 Closed Loop Stepper Motors. Lead Length: 2.7m Wire Gauge:..
from
C$10.50
Add to Cart
Add to Wish List Compare this Product
Quickview

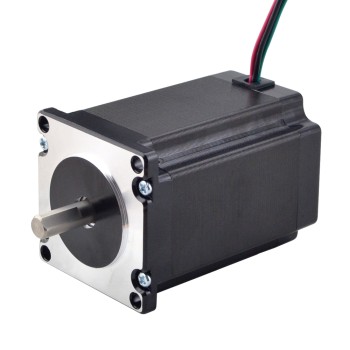

Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires
