24V 200W 21RPM Geared Brushless DC Motor 67.00Nm(9487.98oz.in) 144.5:1 Planetary Gearbox

0 reviews - Write a review

C$129.32

5 + C$125.05

10 + C$121.05

50 + C$117.29

100 + C$113.77

In Stock: 10000
Model: M82B200-24P-30S/G82-144.5S1
Gross Weight: 5.07kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

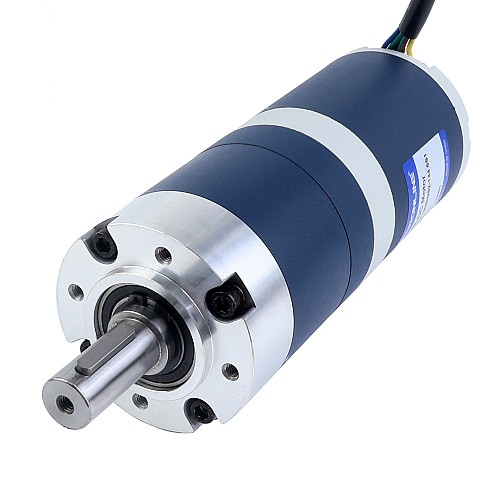

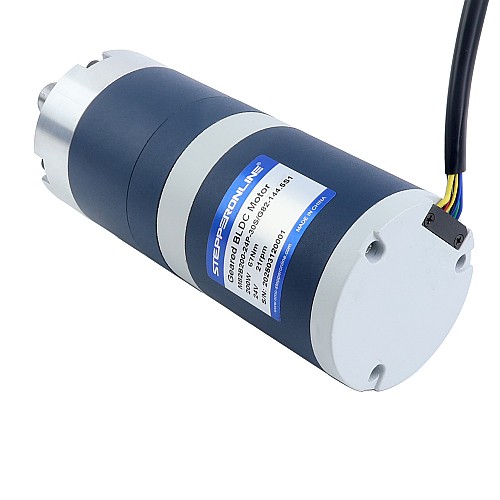

This is a 24V 200W brushless DC motor with a Φ82mm flange diameter, a rated torque of 67.00Nm(9487.98oz.in) and a rated speed of 21rpm. It is equipped with a planetary gearbox with a gear ratio of 144.5:1, which delivers high torque for precision applications. The compact cylindrical design facilitates integration into systems with limited space.
Due to its compact structure, high precision, stability, low noise, long service life and low maintenance costs, this motor is widely used in robotics, industrial automation, medical devices, security and surveillance systems and other demanding applications.

Electrical Specifications

P/N: M82B200-24P-30S/G82-144.5S1
Phase: 3
Poles: 10
Rated Voltage: 24V
Rated Power: 200W
Rated Current: 10.5A
Rated Torque: 67.00Nm(9487.98oz.in)
Rated Speed: 21rpm
Speed without Gearbox: 4200rpm±10%
Sensor: Hall Sensor
Insulation Class: B 130°C[266°F]

Physical Specifications

Gearbox Type: Planetary Gearbox
Gearbox Ratio: 144.5:1
Frame Size: Φ82mm
Body Length: 202.2mm
Shaft Type: Keyway
Shaft Diameter: Φ19mm
Shaft Length: 49mm
Weight: 4.93kg

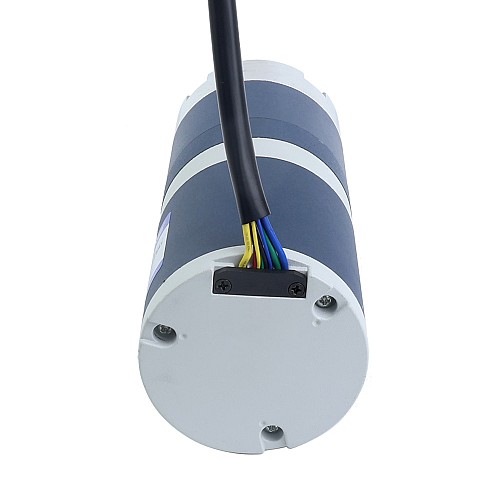

Connection

Motor Wires			Hall Wires
U	V	W	+	-	Ha	Hb	Hc
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue
16AWG			26AWG

Gear Ratio Options

For optional ratios and their corresponding rated speeds/torques, please refer to the table.

Stage	1-Stage				2-Stage
Ratio	3.65	5.36	6.55	8.63	13.3	19.6	24.6	30	35.1	46.2	56.5
Speed(rpm)	822	560	458	348	226	153	122	100	85	65	53
Torque(Nm)	2.10	3.10	3.80	4.90	7.00	10.00	13.00	15.00	18.00	24.00	29.00

Stage	3-Stage
Ratio	71.5	89.8	104.8	112.8	128	144.5	160.9	181.6	196.5	229.5	302.5	398.5
Speed(rpm)	42	33	29	27	23	21	19	17	15	13	9.9	7.5
Torque(Nm)	33.00	42.00	49.00	52.00	59.00	67.00	75.00	84.00	90.00	97.00	97.00	65.00

The recommended BLDC driver to match this motor is BLD-510B.

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	10.50
Rated Power(W)	200
Rated Speed(rpm)	21
Rated Torque(Nm)	67
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	202.2
Frame Size(mm)	82 Round
Gear Ratio(xx:1)	144.5
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Shaft Diameter(mm)	19
Shaft Length(mm)	49
With Gearbox	Yes
