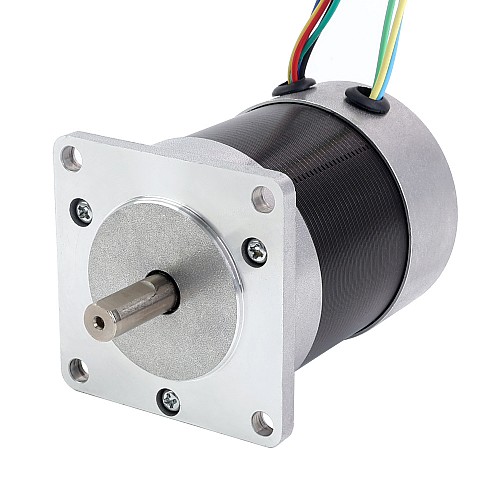

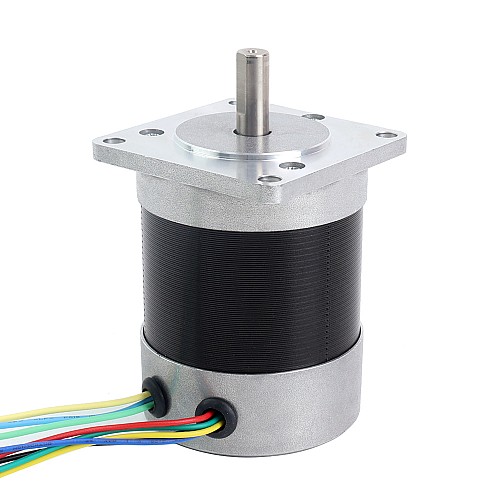

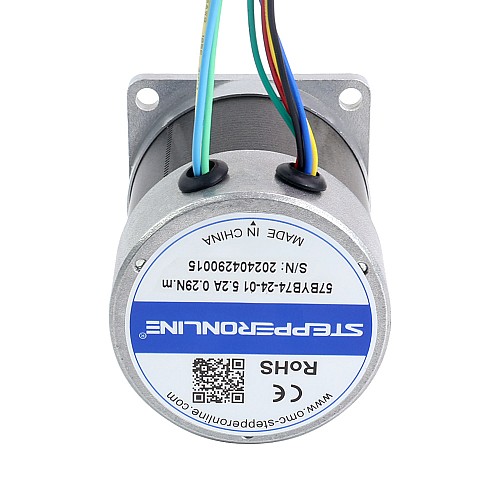

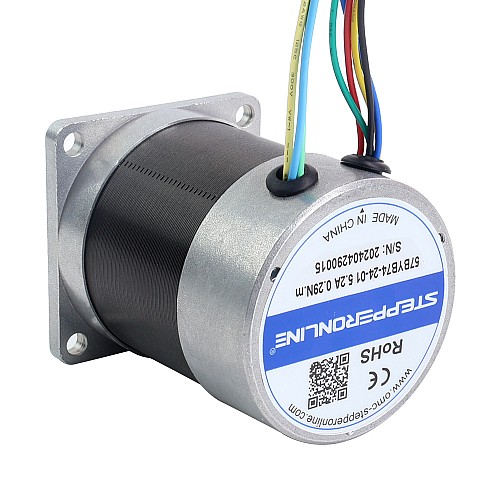

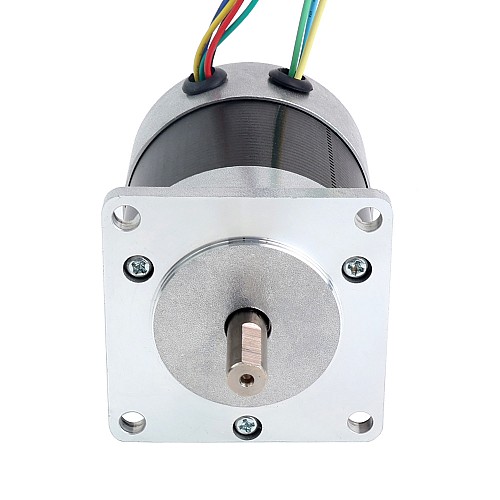

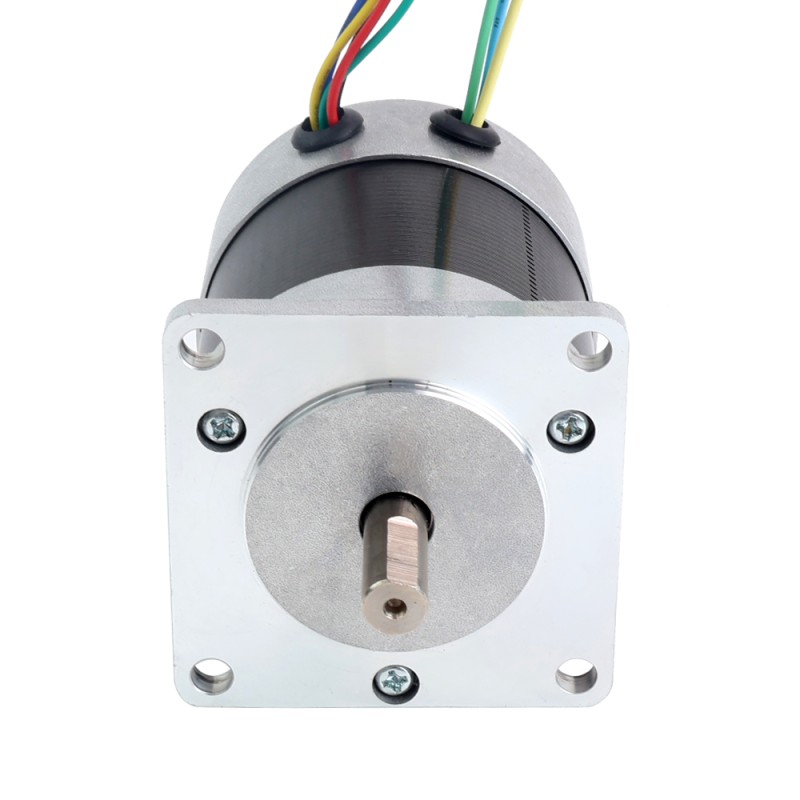

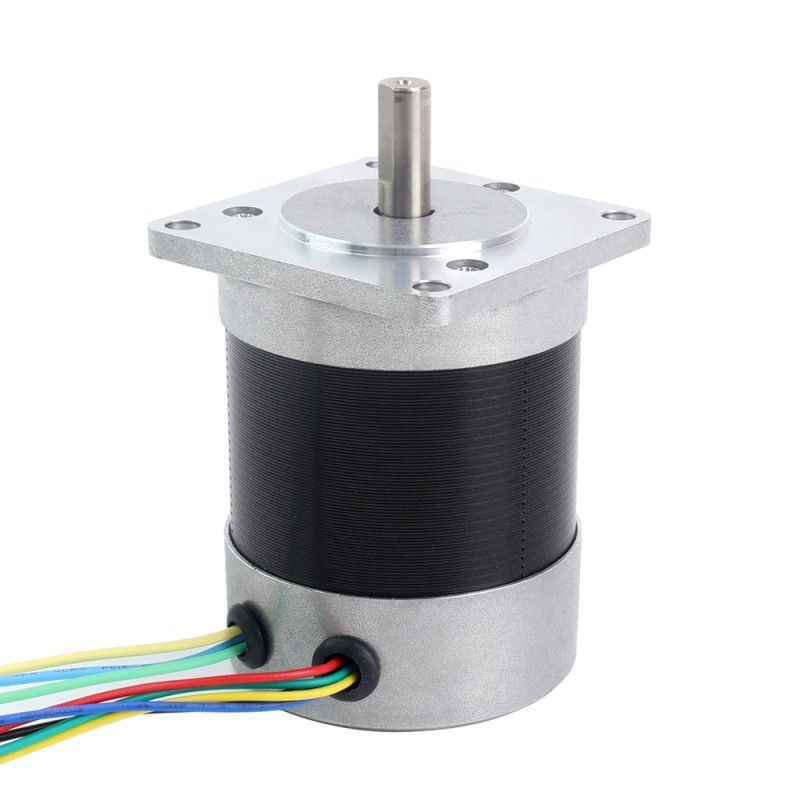

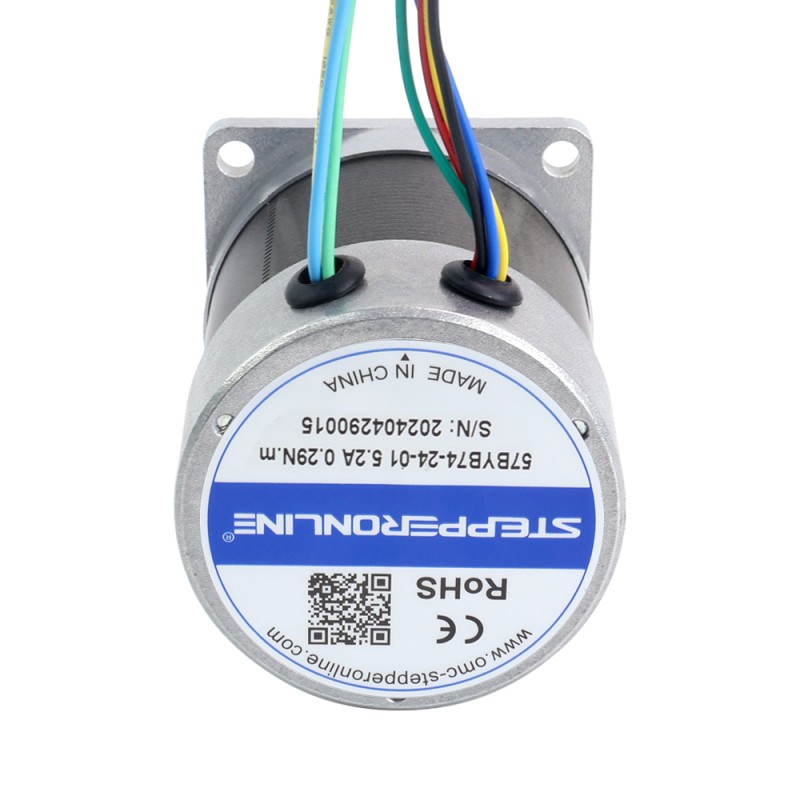

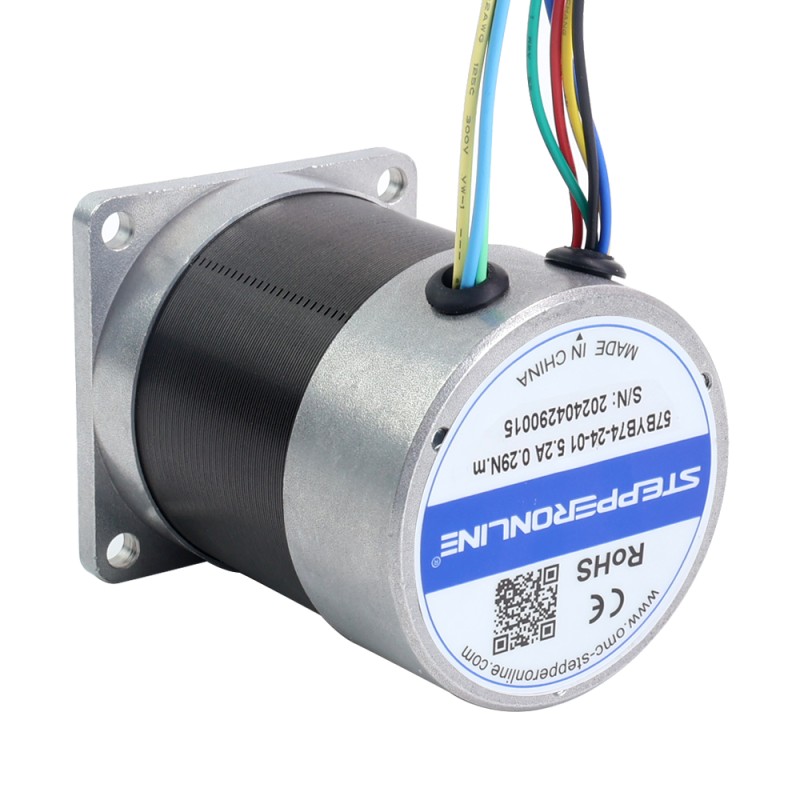

Name: 24V 3000RPM 0.29Nm 91W 5.20A 57x57x73.5mm Brushless DC Motor
Brand: STEPPERONLINE
SKU: 57BYB74-24-01
Price: 31.68 CAD
Availability: InStock

24V 3000RPM 0.29Nm 91W 5.20A 57x57x73.5mm Brushless DC Motor - 57BYB74-24-01 | StepperOnline CA

57BYB74-24-01

Output Shaft TypeD

Shaft Diameter(mm)8

Shaft Length(mm)21

Rated Voltage(V)24

Question

Downloads

57BYB74-24-01_Full_Datasheet.pdfPDF · 124.62KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Rated Voltage(V)	Price	Stock
36BLR65-24-01 Discontinued	O	4	15	24		—
42BLR43-24-01	O	5	20	24	C$28.81	Backorder
42BLS40-24-01	O	5	20	24	C$24.88	In stock
42BLS60-24-01	O	5	20	24	C$31.08	In stock
42BSA46-24-01	O	5	24	24	C$23.04	In stock
42BSA62-24-01	O	5	24	24	C$25.92	In stock
42BSA62-36-01	O	5	24	36	C$25.92	In stock
42BSA78-24-01	O	5	24	24	C$34.56	In stock
42BSA78-48-01	O	5	24	48	C$34.56	In stock
42BSB101-24-01	O	5	20	24	C$31.68	In stock
42BSB101-48-01	O	5	20	48	C$31.68	In stock
42BSB41-24-01	O	5	20	24	C$20.16	In stock
42BSB61-24-01	O	5	20	24	C$23.04	In stock
42BSB61-48-01	O	5	20	48	C$23.04	In stock
42BSB81-24-01	O	5	20	24	C$28.80	In stock
42BSB81-48-01	O	5	20	48	C$28.80	In stock
42BYA43-24-01	O	5	20	24	C$21.60	In stock
42BYA51-24-01	O	5	20	24	C$24.48	In stock
42BYA73-24-01	O	5	20	24	C$34.56	In stock
57BLR110-36-01	O	8	25	36	C$52.37	In stock
57BLR50-24-01	O	8	25	24	C$32.20	In stock
57BLR50-36-01	D	8	25	36	C$32.20	In stock
57BLR70-24-02	O	8	25	24	C$45.76	In stock
57BLR70-36-01	O	8	25	36	C$37.29	In stock
57BLY54-24-01	O	8	21	24	C$27.12	In stock
57BSA100-36-01	D	8	21	36	C$63.36	In stock
57BSA100-48-01	D	8	21	48	C$63.36	In stock
57BSA58-24-01	D	8	21	24	C$31.68	In stock
57BSA79-36-01	D	8	21	36	C$46.08	In stock
57BSD116-36-01	D	8	21	36	C$41.76	In stock

View all in category

24V 3000RPM 0.29Nm 91W 5.20A 57x57x73.5mm Brushless DC Motor

This is a 24V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and t... Read More

0 reviews • Write a review

from

C$31.68

5 + C$30.76

10 + C$29.88

50 + C$29.06

100 + C$28.28

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and torque of 0.29Nm(41.07oz.in).
The 57BYB series brushless motors are generally less expensive motors with a round housing but a standard Nema mounting surface that is compatible with the EG23 and RYG23 series gearboxes. They are suitable for applications requiring low torque and high speed, such as air pumps, cooling fans, air pumps and other household appliances, etc.

Electrical Specification

Manufacturer Part Number: 57BYB74-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Torque: 0.29Nm(41.07oz.in)
Rated Power: 91W
Rated Speed: 3000±10%RPM
Rated Current: 5.20A
No-load Speed: 4000±10%RPM
Resistance/phase: 0.66±10%Ohms
Inductance/phase: 1.47±20%mH
BACK EMF: 4.4±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 73.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
Shaft Type: D-cut
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 0.7kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.2
Rated Power(W)	91
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.29
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	73.5
Frame Size(mm)	Nema 23 (57 x 57)
IP Rating	20
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
With Gearbox	No
