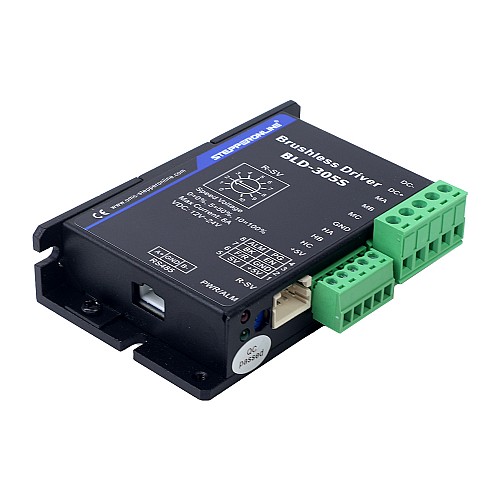

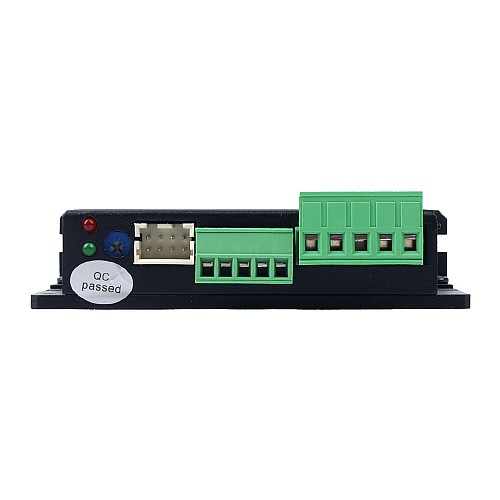

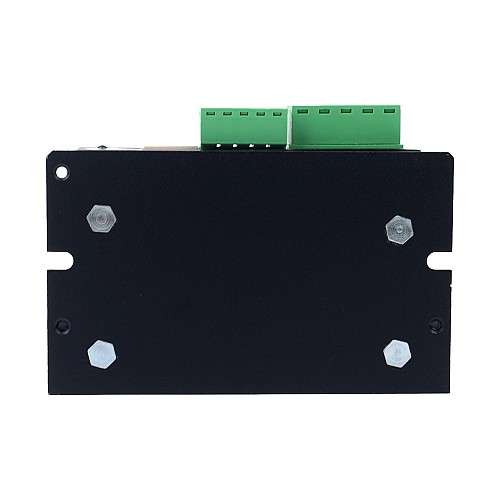

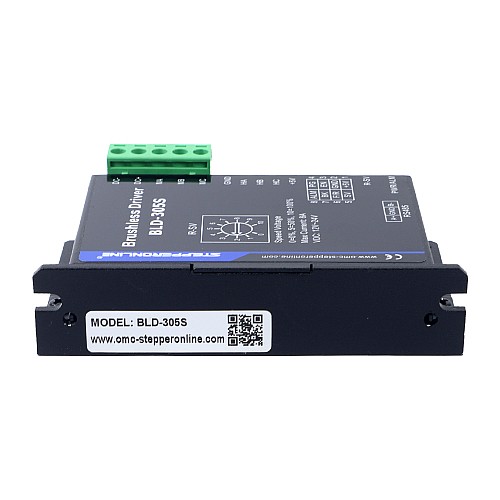

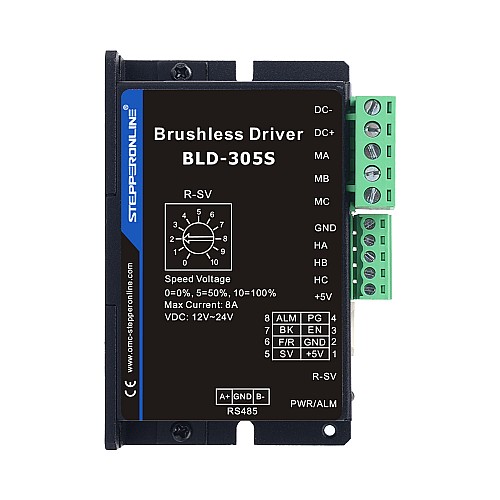

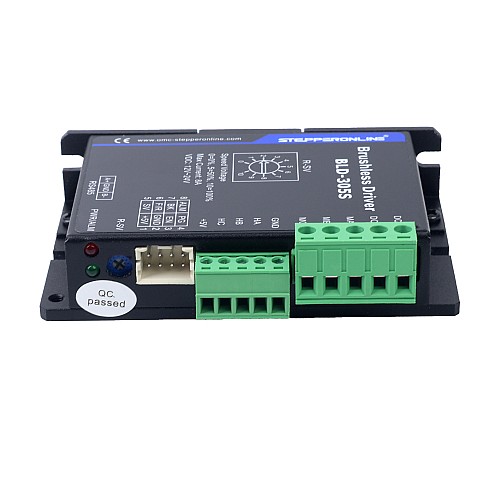

Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W

1 reviews - Write a review

C$23.53

5 + C$22.72

10 + C$21.98

50 + C$21.27

100 + C$20.62

In Stock: 10000
Model: BLD-305S
Gross Weight: 0.13kg
Certificated: ISO, CE

Available Options

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a brushless motor driver with an input voltage of 12-24VDC and maximun power of 120W. Compared with BLD-405S, BLD-305S is more cost-effective to drive brushless DC motors below 120W.
It mainly uses high performance dedicated brushless DC motor driver chips, the latest IGBT and MOS power devices and adopts PWM technology. It is characterised by high integration, small size, complete protection, simple and clear wiring and high reliability.

Features

20kHz chopper frequency
Support baud rate modification
Speed control range 150~20000rpm
12-24VDC input voltage(recommend 24VDC)
PID speed and current dual-loop regulator
Compatible with brushless motors with Hall sensors
Support Modbus communication protocol, RS485 interface
It has stall protection function to make the motor respond quickly
The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions

Electrical Specification

Parameters	BLD-305S
Standard Input Voltage(VDC)	24
Minimum Voltage(VDC)	11.5
Maximum Voltage(VDC)	31
Continuous Output Current(A)	8.0

This driver can only work with brushless dc motors with hall sensor.

As a medium-to-high-speed motor, we do not recommend brushless motors to operate under 150rpm.

Operating Environment
Cooling Method	Radiator
Humidity	<85%(No Frosting)
Operating Temperature	0℃ - 45℃
Store Temperature	-20℃ - 85℃
Product Type
Product Type	Brushless DC Driver
Electrical Specification
Alarm Output	Yes
Continuous Output Current(A)	6.0A(24VDC)
Control Modes	Analog Voltage, RS-485
E-STOP	Yes
Max. Output Power(W)	120
Operating Voltage(V)	12DC, 24DC
Peak Current(A)	8.0
Power(W)	120W(24VDC)
Speed Signal Output	Yes
Physical Specification
Inventory Method	Dedicated Inventory
