24V 4820RPM 45mNm 22.71W 1.61A Round Ф30x56mm Brushless Coreless Motor

0 reviews - Write a review

C$60.96

5 + C$58.45

10 + C$56.12

50 + C$53.99

100 + C$52.01

In Stock: Pre-order
Model: 30CL56-24-P2-4820
Gross Weight: 0.26kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

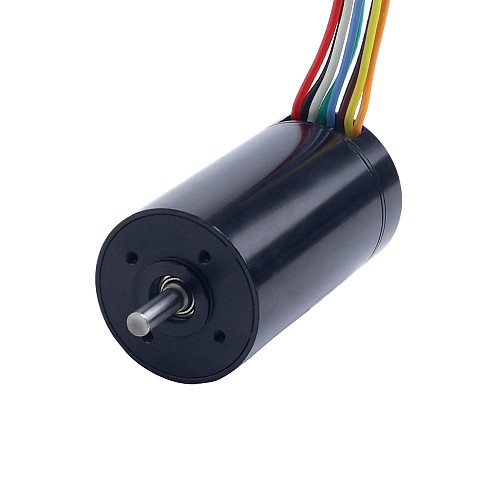

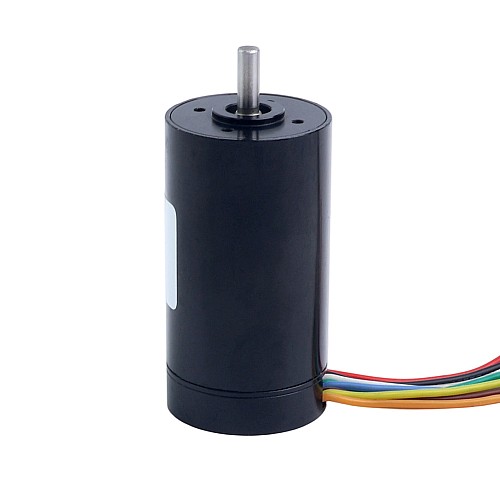

This 24V brushless coreless motor delivers an output power of 22.71W. It achieves a rated speed of 4820rpm with a current draw of 1.61A, and provides a rated torque of 45mNm. It is suitable for compact, responsive applications requiring low inertia.

Coreless motor delivers exceptional efficiency by eliminating iron losses, significantly cutting energy use in continuous automation. Its ultra-low inertia enables millisecond-level response for precise positioning. The ultra-compact design and inherently quiet, low-vibration operation ensure easy integration and reliable, maintenance-free performance. Perfect for robotics, lab automation, and precision medical devices.

Electrical Specification

Manufacturer Part Number: 30CL56-24-P2-4820
Number of Pole Pairs: 1
Rated Voltage: 24V
Terminal Resistance: 2.69Ohms
Terminal Inductance: 0.3mH
No Load Speed: 8000rpm
No Load Current: 0.2A
Rated Speed: 4820rpm
Rated Current: 1.61A
Rated Torque: 45mNm
Rated Power: 22.71W
The Greatest Power Output: 51.16W
Efficiency: 72.3%
Torque Constant: 28.01mNm/A
Stall Torque: 244.26mNm
Back-EMF Constant: 2.93mV/rpm
Speed Constant: 340.98rpm/V
Friction Torque: 5.6mNm
Current Constant: 0.04A/mNm
Vibration Amplitude: <=0.1mm
Wingding Max.Permissible Temperature: 180°C
Operating Temperature Range: -20 - 80°C
Noise: <=35dB
Lifetime: 8000hours

Physical Specification

Frame Size: Φ30mm
Motor Length: 56mm
Shaft Diameter: Φ5mm
Shaft Length: 19mm
Cable Length: 70mm

Connection

U	V	W	+5V	GND	A	B	C
Red	Black	White	Green	Blue	Brown	Yellow	Orange

Electrical Specification
Back-Emf Constant(mV/Rpm)	2.93
Current Constant(A/mNm)	0.04
Efficiency(%)	72.30
Friction Torque(mNm)	5.60
Max. Output Power(W)	51.16
No-load Current(A)	0.20
No-Load Speed(rpm)	8000
No. of Pole	2
Rated Current(A)	1.61
Rated Power(W)	22.71
Rated Speed(rpm)	4820
Rated Torque(mNm)	45.00
Rated Voltage(V)	24
Speed Constant(Rpm/V)	340.98
Stall Torque(mNm)	244.26
Terminal Inductance(mH)	0.3
Terminal Resistance(Ohms)	2.69
Torque Constant(mNm/A)	28.01
Physical Specification
Inventory Method	Dedicated Inventory

File	Size
30CL56-24-P2-4820_Full_Datasheet.pdf	48.62KB	Download

Tags: Rated Voltage(V): 24, Rated Current(A): 1.61, Rated Speed(rpm): 4820, Rated Power(W): 22.71, Efficiency(%): 72.30, Max. Output Power(W): 51.16, Inventory Method: Dedicated Inventory, No-load Current(A): 0.20, No. of Pole: 2, Terminal Resistance(Ohms): 2.69, Rated Torque(mNm): 45.00, Terminal Inductance(mH): 0.3, No-Load Speed(rpm): 8000, Torque Constant(mNm/A): 28.01, Stall Torque(mNm): 244.26, Back-Emf Constant(mV/Rpm): 2.93, Friction Torque(mNm): 5.60, Current Constant(A/mNm): 0.04, Speed Constant(Rpm/V): 340.98
