DBLC-01
Product TypeBrushless DC Controller
Question

Downloads

Same series
ModelProduct TypePriceStock
BLA-015NSAC Sensorless Brushless DriverAnalog Voltage/RS-485/DI Input15C$0.00Backorder
BLA-020NSAC Sensorless Brushless DriverAnalog Voltage/RS-485/DI Input20C$0.00Backorder
BLA-040NSAC Sensorless Brushless DriverAnalog Voltage/RS-485/DI Input40C$0.00Backorder
BLA-060NSAC Sensorless Brushless DriverAnalog Voltage/RS-485/DI Input60C$0.00Backorder
BLA-120NSAC Sensorless Brushless DriverAnalog Voltage/RS-485/DI Input120WC$0.00Backorder
BLD-305SBrushless DC DriverAnalog Voltage/RS-485120W(24VDC)C$23.06In stock
BLD-405SBrushless DC DriverAnalog Voltage/RS-48550W(12VDC), 100W(24VDC), 120W(36VDC)C$30.51In stock
BLD-510BBrushless DC DriverAnalog Voltage/RS-485120W(12VDC), 200W(24VDC), 200W(36VDC), 400W(48VDC)C$28.80In stock
BLD-510SBrushless DC DriverAnalog Voltage/RS-485120W(12VDC), 200W(24VDC), 200W(36VDC), 200W(48VDC)C$40.67In stock
BLD-515CBrushless DC DriverAnalog Voltage/RS-485/CAN150W(12VDC), 300W(24VDC), 360W(36VDC), 400W(48VDC)C$81.36In stock
BLD-530SBrushless DC DriverAnalog Voltage/RS-485300W(12VDC), 600W(24VDC), 600W(36VDC), 600W(48VDC)C$108.47In stock
BLD-550SBrushless DC DriverAnalog Voltage/RS-485600W(12VDC), 1500W(24VDC), 1500W(36VDC), 1500W(48VDC)C$237.28In stock
BLD-AC1000SBrushless DC DriverAnalog Voltage/RS-485500W(110VAC), 1000W(220VAC)C$185.34Backorder
BLD-AC400SBrushless DC DriverAnalog Voltage/RS-485200W(110VAC), 400W(220VAC)C$107.08Backorder
BLD-AC750SBrushless DC DriverAnalog Voltage/RS-485375W(110VAC), 750W(220VAC)C$144.16Backorder
DBLC-01Brushless DC Controller——C$16.95In stock
Brushless DC Motor Controller DBLC-01
Function of control box 1. Display speed. It can display the real time rotation speed of the motor.... Read More
from
C$16.95
5 or more: C$16.37
10 or more: C$15.83
50 or more: C$15.33
100 or more: C$14.85

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

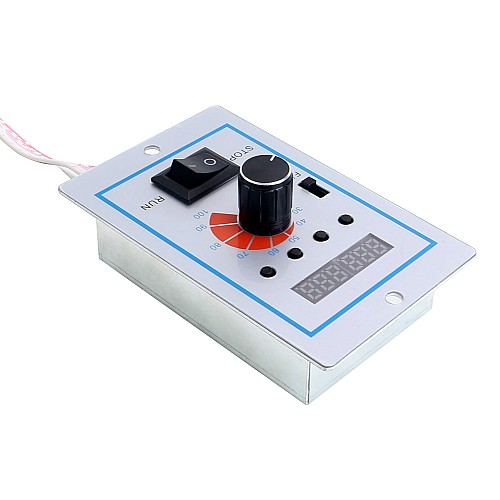

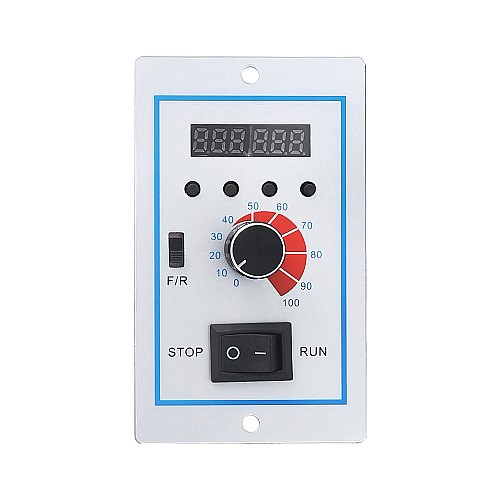

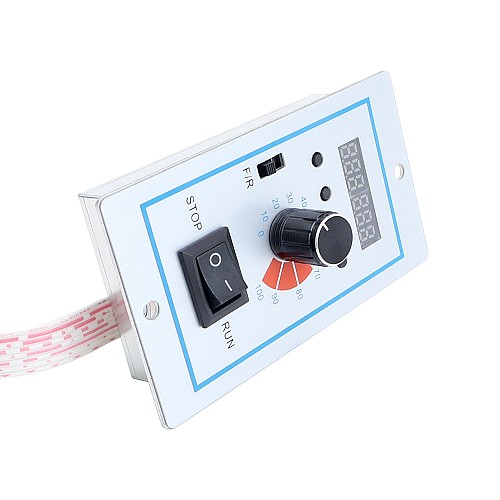

Function of control box

1. Display speed. It can display the real time rotation speed of the motor.
2. Start/Stop button on the panel to control the start/stop of the motor.
3. The forward and reverse keys on the panel can control the forward and reverse running mode of the motor.
4. The speed adjustment potentiometer on the panel allows stepless adjustment of the different speeds of the motor.

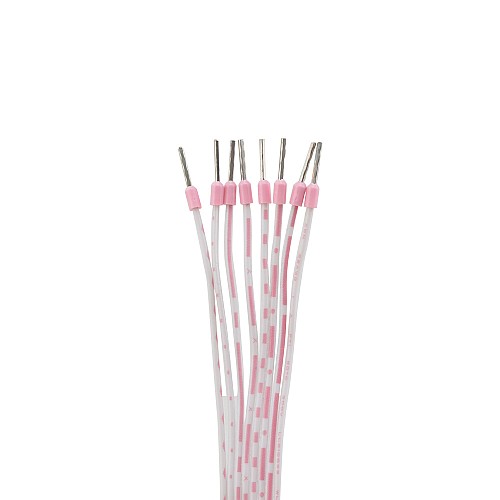

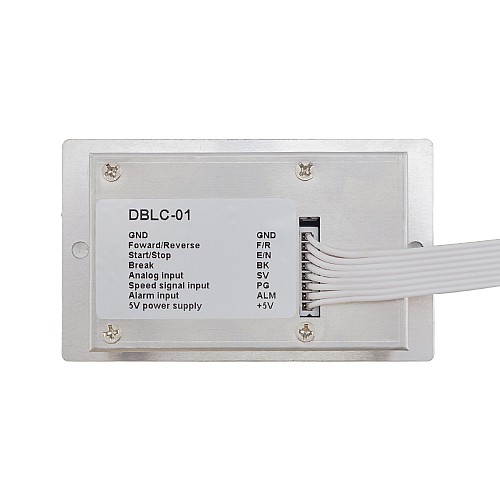

Terminal interface description

1 GND: signal ground
2 F / R: switch the direction of motor operation
3 EN: control of motor start/stop
4 BK: control of electrical braking of motors
5 SV: analogue 0-5vdc input to control motor speed from 0 to set speed
6 PG: signal input for motor speed, display of rotation speed
7 ALM: input signal for alarms. ERR is displayed when an alarm is raised
8 + 5V: speed regulation of voltage, potentiometer continuously adjustable at SV and GND

Product Type
Product Type Brushless DC Controller
