25W 110VAC 60Hz 0.5-8.61RPM 16.00Nm(2265.76oz.in) Flange 80mm Right Angle Gearbox Single-phase AC Variable Speed Motor

0 reviews - Write a review

C$101.25

5 + C$97.90

10 + C$94.76

50 + C$91.83

100 + C$89.07

In Stock: 10000
Model: 4IK25RGN-A/4GN180RC
Gross Weight: 3.85kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

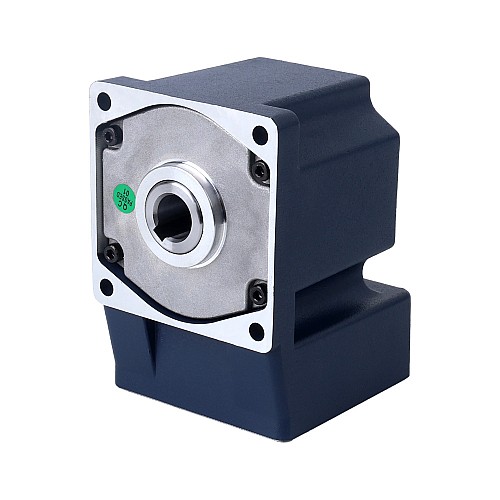

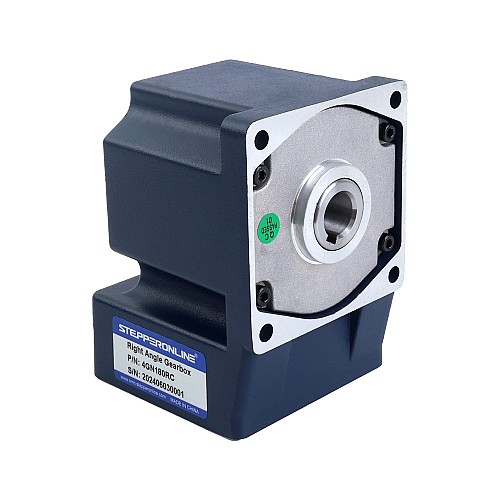

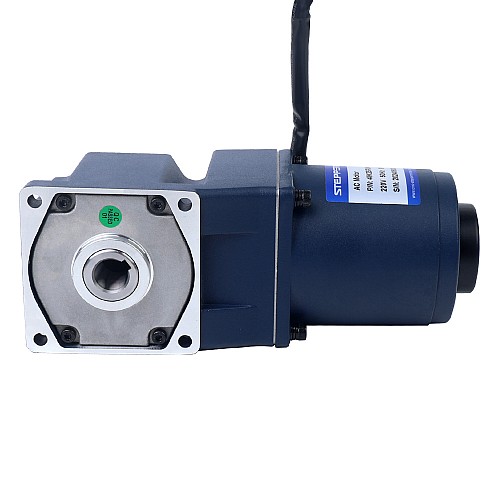

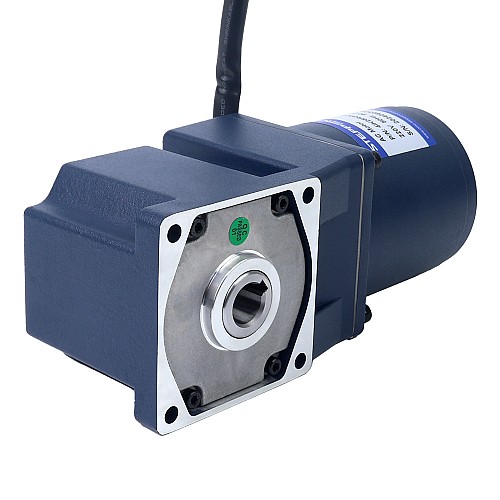

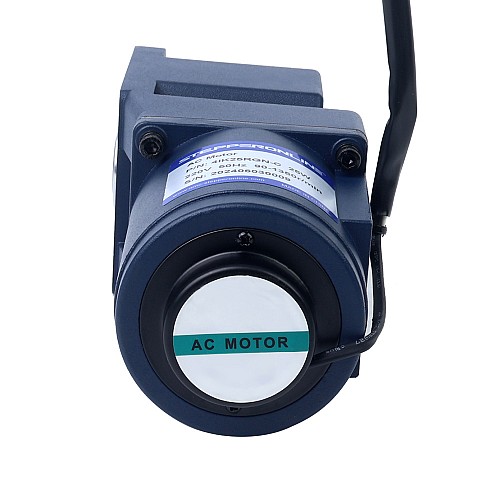

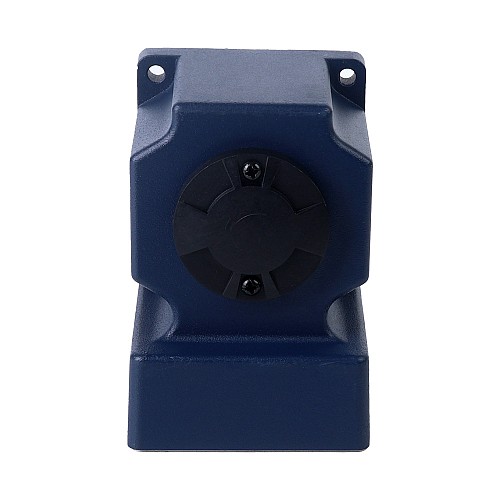

This 80x80mm hollow shaft single-phase AC motor with adjustable speed control is operated with 110VAC. It has a speed range of 0.5-8.61rpm and a right angle gearbox with a gear ratio of 180. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

P/N: 4IK25RGN-A/4GN180RC
Gearbox Type: Right Angle Gearbox
Output Power: 25W
Voltage: 1PH 110VAC
Frequency: 60Hz
Current: 0.50A
Gear Ratio: 180:1
Speed Range: 0.5-8.61rpm
Maximum Torque: 16.00Nm(2265.76oz.in)
Capacitor: 7.0μF/250VAC

Physical Specifications

Frame Size: 80x80mm
Body Length: 201mm
Shaft Type: Hollow
Bore Diameter: Φ15mm
Weight: 3.7kg

Wiring

The variable speed motor must be connected to a speed controller for speed regulation. The recommended speed controller to match this motor is FS-02-110V-25W.

Electrical Specification
Current(A)	0.5
Frequency(Hz)	60
Input Voltage(V)	1PH 110VAC
Max. Torque(Nm)	16.00
Output Power(W)	25
Speed Range(rpm)	0.5-8.61
Physical Specification
Frame Size(mm)	80 x 80
Gear Ratio(xx:1)	180
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Hollow
