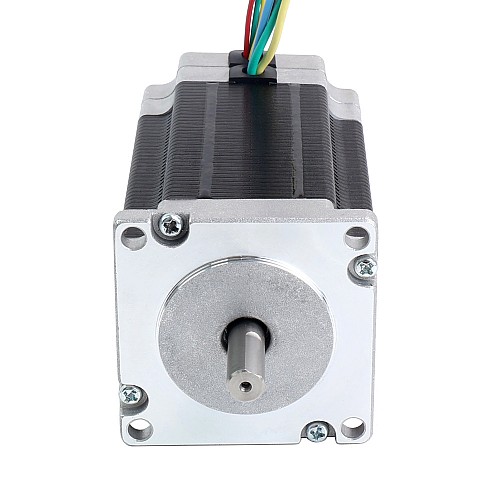

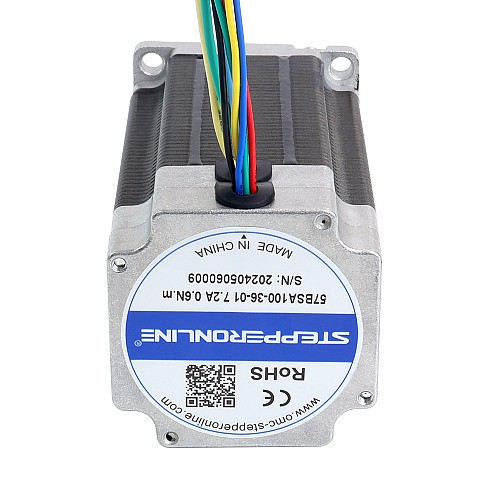

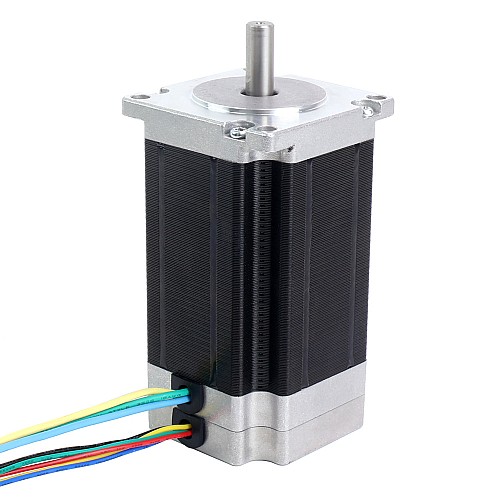

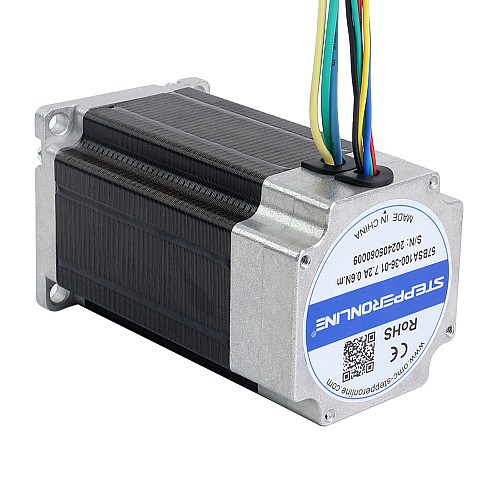

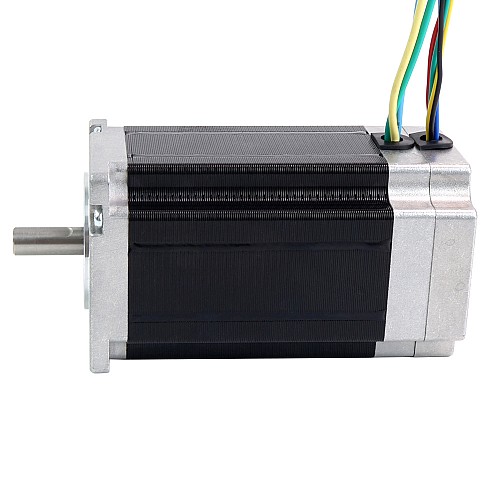

36V 3000RPM 0.6Nm 188W 7.20A 57x57x100mm Brushless DC Motor

0 reviews - Write a review

C$73.51

5 + C$71.08

10 + C$68.81

50 + C$66.67

100 + C$64.68

In Stock: 10000
Model: 57BSA100-36-01
Gross Weight: 1.35kg
Certificated: ISO, CE

Sold: 13

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a 36V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.6Nm(84.97oz.in).
57BSA series brushless motors are high-performance motors with square body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

Manufacturer Part Number: 57BSA100-36-01
Phase: 3
Poles: 8
Rated Voltage: 36V
Rated Torque: 0.6Nm(84.97oz.in)
Rated Power: 188W
Rated Speed: 3000±10%RPM
Rated Current: 7.20A
No-load Speed: 3650±10%RPM
Resistance/phase: 0.46±10%Ohms
Inductance/phase: 0.42±20%mH
BACK EMF: 7.03±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 100mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
Shaft Type: D-cut
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 1.26kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

The gearboxes suitable for this motor are EG23-G5-D8, EG23-G10-D8, EG23-G20-D8, EG23-G50-D8.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	7.2
Rated Power(W)	188
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.6
Rated Voltage(V)	36
Physical Specification
Body Length(mm)	100
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
With Gearbox	No
