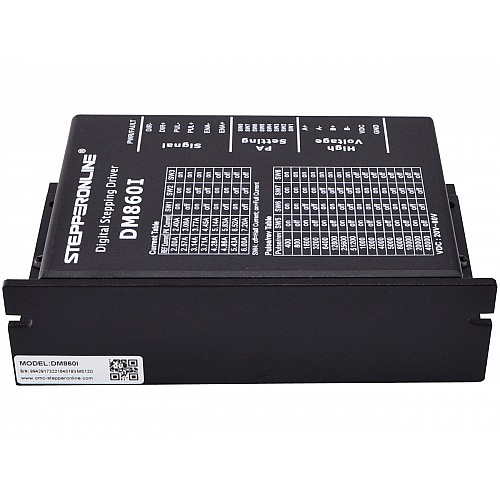

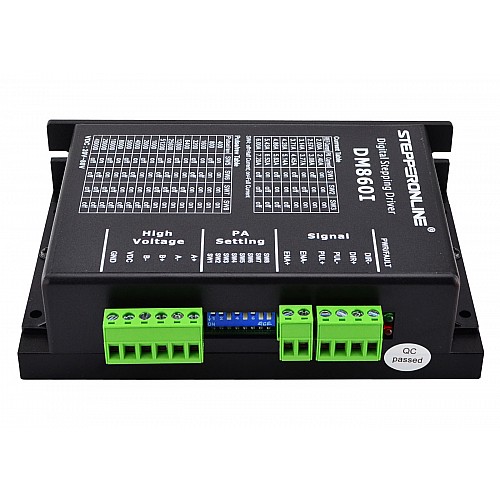

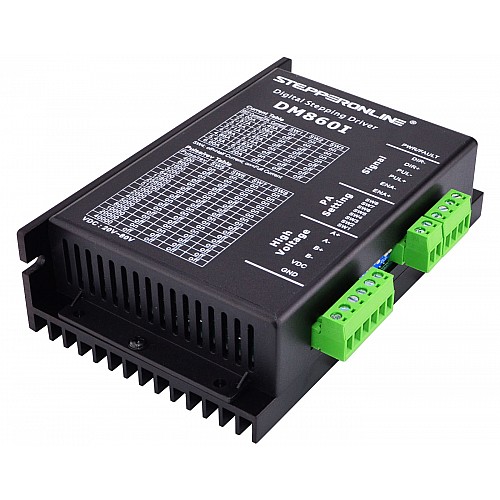

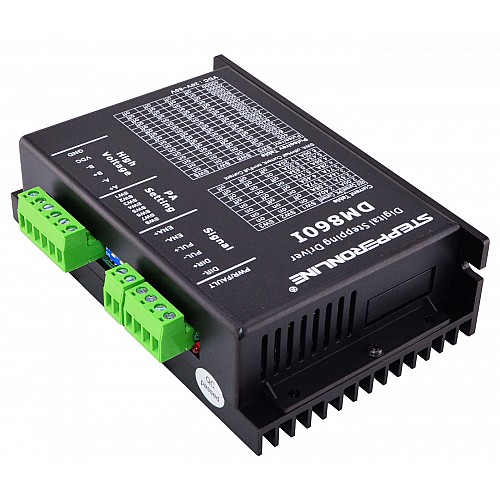

The DM860I is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability that is suitable for Cnc drive . Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM860I can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM860I an ideal choice for high requirement applications, Cnc drive, etc.

Key Features

Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement, works well as Cnc drive as well

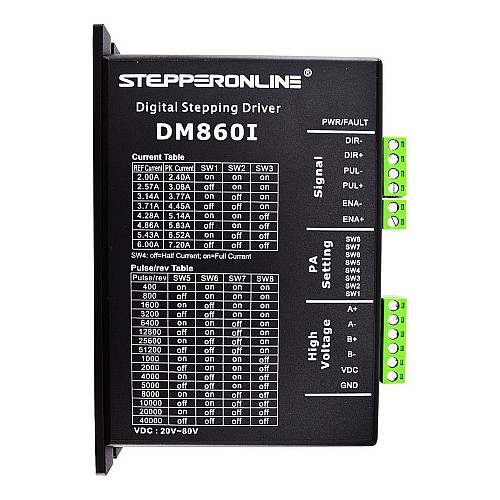

16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Soft-start with no "jump" when powered on
Input voltage 20-80VDC
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-curren protection

Electrical Specifications

Output Peak Current: 2.4~7.2A(6.0RMS)
Input Voltage: +20~80VDC
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 65℃
Humidity: 40%RH－90%RH
Operating Temperature: -10℃ － 45℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 65℃
Weight: Approx.550g(19.40oz)

Recommended Driving Voltages for Stepper Motors

Motor Size	Driving Voltage
Nema 23, Nema 24	24 - 48VDC
Nema 34	36 - 60VDC/30 - 70VAC

Product Type
Product Type	Driver
Electrical Specification
Alarm Output	No
Analog Input	No
Brake Output	No
Control Modes	Pulse Mode
Encoder Feedback	No (Open Loop)
Input Voltage Reference(V)	20 - 80DC
Input Voltage(V)	20 - 80DC
Max. Output Current RMS(A)	6.0
Max. Pulse Input(kHZ)	200
Microstep(Steps/rev.)	400 - 51200
No. of Phase	2
Output Current(A)	2.4 - 7.2
Pulse Width(μs)	2.5
Physical Specification
Installation Type	Split
Inventory Method	Dedicated Inventory
Weight(g)	550
