3PCS of Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector

4 reviews - Write a review

C$37.21

5 + C$35.67

10 + C$34.26

50 + C$32.96

100 + C$31.75

In Stock: 10000
Model: 3-17HS19-2004S1
Gross Weight: 1.20kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

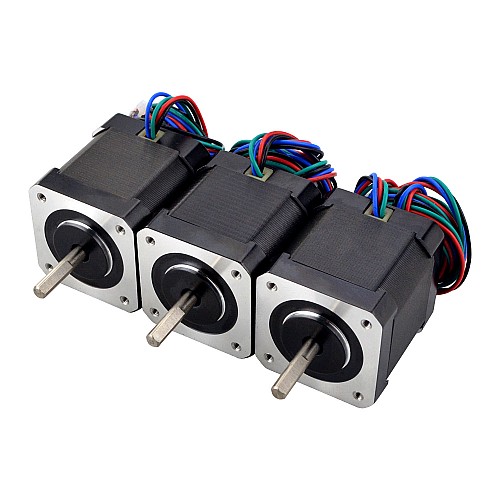

This is an 3-pack updated version nema 17 stepper motor with holding torque of 59Ncm(83.55oz.in). Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch(2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications.

Package includes: 3 x 17HS19-2004S1

Electrical Specification

Manufacturer Part Number: 17HS19-2004S1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 59Ncm(83.55oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.4ohms
Inductance: 3.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 1000mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	59
Holding Torque(oz.in)	83.55
Inductance(mH)	3
Phase Resistance(ohms)	1.4
Rated Current(A)	2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
